Product Details:
|
| Material & Color:: | Aluminum Alloy & Sliver/Black | Dimension: | 303x150x90mm |
|---|---|---|---|
| Weight: | 4.8kg | Input Voltage Range:: | 100-120Vac/200-240Vac |
| Frequenz: | 45-65Hz | Output Voltage: | DC 120 Volt |
| Output Current: | 15 Amp | DC/AC Connector: | Optional Connector |
| Communication:: | CAN, RS485, Bluetooth | Efficiency: | >89% |
| Fan: | Intelligent Temperature Control Fan | Protection: | Output Over Voltage, Output Over Current, Short Circuit, Reverse Polarity, Over-Temperature |
| Charging Mode: | Pre-Charge/CC/CV/Recharge | Warranty: | 18 Months |
| Operating Temperature:: | -20 To 40℃ | Storage Temperature:: | -40 To +70℃ |
| Highlight: | 120V Lithium Ion Smart Charger,15A Lithium Ion Smart Charger,96V Battery Charger |
||

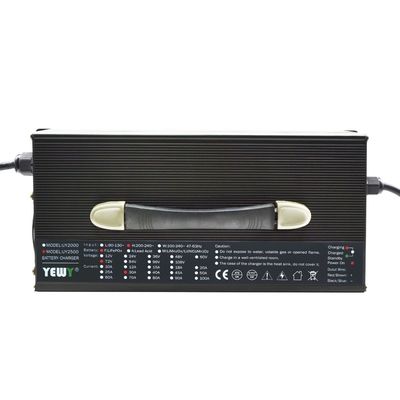

96V 108V and 120V 15A Lithium Ion Battery Charger Smart Bluetooth
Product Description:
The UY2500-120V15A is a high-efficiency charger designed for yachts, boats, cars, camping, and RVs. It supports both lithium-ion and lead-acid battery types. With its Bluetooth-enabled smart charger feature, you can conveniently set up, monitor, and configure the charger using your smartphone.
Using the UYcharger application, you can easily view the status of the charger and battery, and even control various functions of the charger. This smart functionality allows for seamless integration and convenient control, making the charging process more efficient and user-friendly.
Whether you're on a yacht, boat, car, camping trip, or RV adventure, the UY2500-120V15A charger provides a reliable and efficient solution for charging your batteries. Its versatility, coupled with the convenience of Bluetooth control through the UYcharger app, ensures that you can easily manage and monitor the charging process to meet your specific needs.
| Type | Specification | DC Voltage(Max) | (CC:A) Charging current |
Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | |||
| UY2500 | 12V 100A | 12.6V/16.8V | 14.6V | 14.7V | 100A | 8%CC | 25%CC |
| 24V 65A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 65A | |||
| 36V 45A | 42V/46.2V | 43.8V | 44.1V | 45A | |||
| 48V 38A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 38A | |||
| 60V 30A | 63V/67.2V/71.4V | 73V | 73.5V | 30A | |||
| 72V 23A | 79.8V/84V | 87.6V | 88.2V | 23A | |||
| 84V 20A | 88.2V | 102.2V | 107.8V | 20A | |||
| 96V 18A | 100.8V | 109.5V | 117.6V | 18A | |||
| 108V 16A | 113.4V | 120.45V | 132.3V | 16A | |||
| 120V 15A | 126V | 131.4V | 147V | 15A | |||
1.Power: 2500W
2.Economic design with an aluminum case for easy handling.
3.Circuit topology: CCM PFC + classic full-bridge configuration.
4.Optional functions available: MCU for enhanced protection, RS485, CAN, Bluetooth communication, etc.
5.CPU and intelligent PWM IC control for automatic transition between CC, CV, and Float/Cut-off modes, catering to different curve requirements.
6.Intelligent cooling function controlled by temperature and load current.
7.Protection features: Overcurrent, Overvoltage, Overtemperature, Short Circuit, Reverse Polarity, Shutdown or Trickle Charge, Anti-reverse charging.
