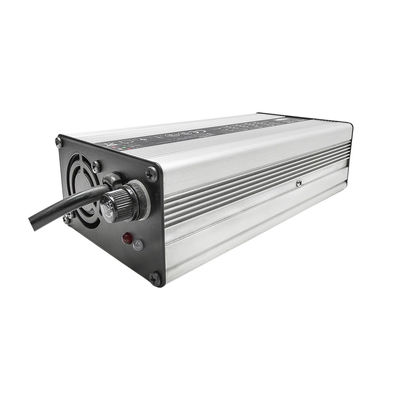

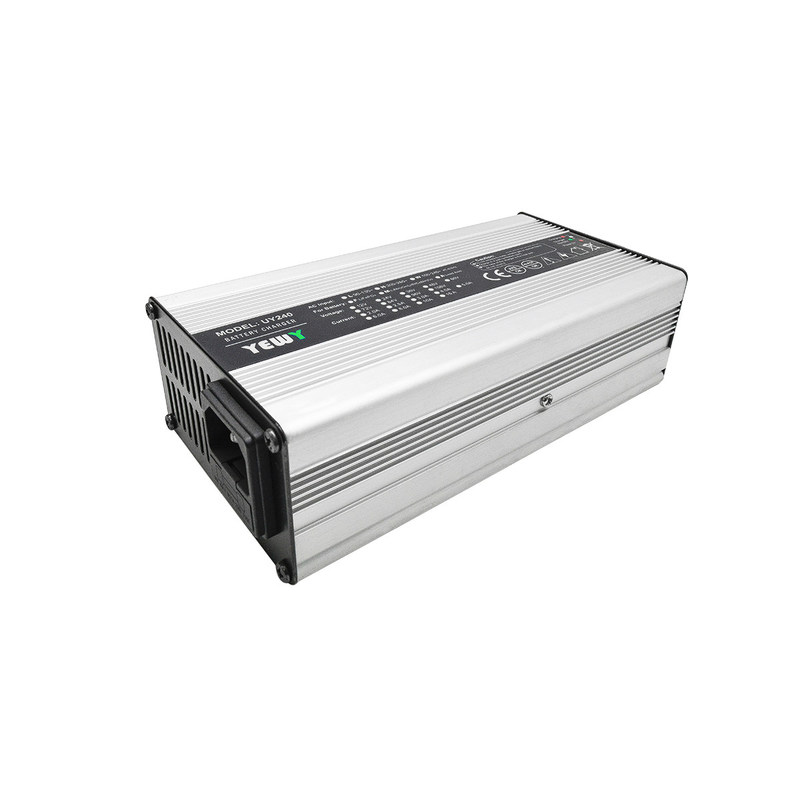

14.6V 30Ah LiFePO4 Battery Pack Charger With 240W Output Power

14.6V 30Ah LiFePO4 Battery Pack Charger With 240W Output Power
14.6V 30Ah LiFePO4 Battery Pack Charger With 240W Output Power 14.6V 30Ah LiFePO4 Battery Pack Charger With 240W Output Power 14.6V 30Ah LiFePO4 Battery Pack Charger With 240W Output Power

Large Image :  14.6V 30Ah LiFePO4 Battery Pack Charger With 240W Output Power

Product Details:
Place of Origin: Guangzhou, China
Brand Name: YEWY
Certification: CE
Model Number: UY240

14.6V 30Ah LiFePO4 Battery Pack Charger With 240W Output Power

Description
Connector: DC Plug Output Voltage: 14.6V
Size: 172x90x50mm Protection Function: Over-voltage, Over-current, Short-circuit, Over-temperature
Output Current: 10A LED Indicator: Red/Green
Weight: 1KG Protection: Over Current, Over Voltage, Over Temperature, Short Circuit, Reverse Polarity, Shut Off Or Trickle And Anti-reverse Charge
Highlight:

30Ah LiFePO4 Battery Pack Charger

,

14.6V LiFePO4 Battery Pack Charger



14.6V 30Ah LiFePO4 Battery Pack Charger With 180W Output Power

Product Description:

Presenting the UY240: Fusing Ingenuity and Utility in Battery Charging!



The UY240 is a harmonious blend of innovation and practicality within the realm of battery charging technology. Anchored by the time-tested voltage-fed half-bridge circuit topology, it finds its symphony in the embrace of Pulse Width Modulation (PWM) technology, delivering a harmonious blend of efficiency and unwavering stability. Versatility and reliability define its character, as it adapts effortlessly to the diverse charging curve requirements of various batteries, all while standing as a stalwart guardian against safety threats, including the enigmatic reverse charging.



Illuminate your charging journey with dual-color LED lights, a beacon that guides you through the tapestry of your charging odyssey. For those who seek deeper insights, the optional digital display unveils the intricacies of voltage dynamics. Encased in a robust aluminum alloy housing, adorned with a matte finish, the UY240 stands as an epitome of durability and aesthetics, a testament to a perfect blend of form and function.



The UY240 beckons you to partake in a charging experience that transcends ordinary boundaries. With its seluminiumaamless balance of innovation and practicality, it emerges as the quintessential companion, primed to elevate your charging encounters. The UY240—a sonnet of equilibrium, an ode to practicality—invites you to ascend the pinnacles of charging excellence. Elevate your charging journey with the UY240 today!



Features:

Charger Model: UY240
Housing: Aluminium Alloy
Max Power: 240W
Dimensions: 172x90x50mm
AC Input: 100-120Vac/200-240Vac,47~63 Hz
Max Efficiency: 85%
Noise: <=40dB
Operating Temperature: -20 to 40℃
Storage Temperature: -40 to +70℃
Cooling: Silent Cooling Fan
Charger type: Lifepo4/Li-ion/Lead Acid Battery Charger
Protection: Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge

Voltage-Type Half-Bridge Circuit: Utilizes a straightforward and trusted voltage-type half-bridge circuit topology for stable and efficient performance.

Pulse Width Modulation (PWM) Technology: Incorporates PWM technology for high efficiency, excellent stability, energy efficiency, and the ability to meet various battery charging curve requirements.

Comprehensive Protection: Offers multiple layers of protection, including over-voltage, over-current, over-temperature, short-circuit, reverse connection, full charge cut-off, trickle charge, and anti-reverse charging.

Dual-Color LED Indicators: Provides clear charging status with dual-color LED indicators, allowing you to monitor the charging process easily. Optionally, real-time charging voltage can be displayed on a digital screen.

Durable Aluminum Alloy Housing: Features an aluminum alloy exterior with a matte finish, combining aesthetics with robustness for long-lasting durability.

Technical Parameters:

UY240
Specification DC Voltage(Max) (CC:A)
Charging current
Light Turning(A)
Li-ion Lifepo4 Lead acid Lithium Lead acid
12V 10A 12.6V/16.8V 14.6V 14.7V 10A 8%CC 25%CC
24V 8A 25.2V/29.4V/33.6V 29.2V 29.4V 8A
36V 5A 42V/46.2V 43.8V 44.1V 5A
48V 4A 50.4V/54.6V/58.8V 54.75V/58.4V 58.8V 4A
60V 3A 63V/67.2V/71.4V 73V 73.5V 3A
72V 2.5A 79.8V/84V 87.6V 88.2V 2.5A
14.6V 30Ah LiFePO4 Battery Pack Charger With 240W Output Power 014.6V 30Ah LiFePO4 Battery Pack Charger With 240W Output Power 1



14.6V 30Ah LiFePO4 Battery Pack Charger With 240W Output Power 214.6V 30Ah LiFePO4 Battery Pack Charger With 240W Output Power 314.6V 30Ah LiFePO4 Battery Pack Charger With 240W Output Power 414.6V 30Ah LiFePO4 Battery Pack Charger With 240W Output Power 5

Applications:

Automotive: Charging vehicle batteries for reliable starts.

Marine: Ideal for marine battery charging.

RVs: Maintains RV batteries during storage.

Power Sports: Charges batteries for recreational vehicles.

Electric Vehicles: Extends battery life for EVs.

Industrial: Powers batteries in machinery, reducing downtime.

Home Use: Convenient for charging power tools and equipment.

Emergency Backup: Ensures reliable power during outages.

Commercial Services: Valuable for battery service centers.

Renewable Energy: Enhances reliability in renewable energy systems.



More Parameters

YEWY Battery Charger Parameters

Model Input 47-63Hz Power (voltage & Current)
12v 24v 36v 48v 60v 72v 84v 96v 108v 120v
Umini 100-240Vac 120w 6A 3A 2.5A 2A
UY120 100-240Vac 120w 6A 4A 2.5A 2A 1.5A
UY180 110/220Vac 180w 8A 5A 4A 3A 2.5A 2A
UY240 110/220Vac 240W 10A 8A 5A 4A 3A 2.5AA
UY360 110/220Vac 360W 40A 25A 20A 15A 12A 10A 3A
UY600 110/220Vac 600W 100A 65A 45A 38A 30A 23A 5A
UY900 110/220Vac 900W 40A 25A 20A 15A 12A 10A 8A
UY1200 110/220Vac 1200W 50A 35A 25A 20A 15A 12A 11A 10A 8A 6A
UY1500 110/220Vac 1500W 80A 45A 30A 25A 20A 16A 14A 12A 10A 8A
UY2000 110/220Vac 2000W 90A 60A 40A 30A 25A 20A 18A 16A 10A 9A
UY2500 110/220Vac 2500W 100A 65A 45A 38A 30A 23A 20A 18A 16A 15A
UY240LP 100-240Vac 240W 10A 8A 5A 4A 3A 2A
UY300LP 100-240Vac 300W 16A 10A 7A 5A 4A 3A
UY360L 100-240Vac 360W 20A 12A 8A 6A 5A 4A
UY360LP 100-240Vac 360W 20A 12A 8A 6A 5A 4A 3A
UY600L 100-240Vac 600W 30A 20A 12A 10A 8A 6A
UY900L 100-240Vac 900W 35A 25A 18A 15A 12A 10A
UY600S 100-240Vac 600W - 20A 12A 10A 8A 6A
UY900S 100-240Vac 900W - 30A 20A 15A 12A 10A
UY1200S 100-240Vac 1200W 50A 35A 25A 20A 16A 12A
UY1500S 100-240Vac 1500W 50A 40A 30A 25A 20A 16A
