Product Details:
|
| Output Current: | 2A | Protection Mode: | Over Voltage Protection, Over Current Protection, Short Circuit Protection |
|---|---|---|---|
| Warranty: | 18 Months | Power: | 900W |
| Display Mode: | LED/LCD Display | Material: | Aluminium Alloy |
| Efficiency: | ≥88% | Output Voltage: | 12V |
| Highlight: | 40A Electric Car Battery Charger,Intelligent Electric Car Battery Charger,Aluminium Alloy Electric Car Battery Charger |
||

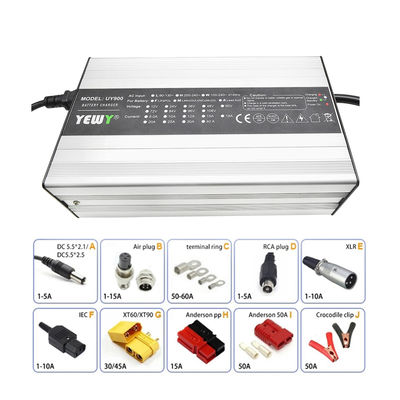

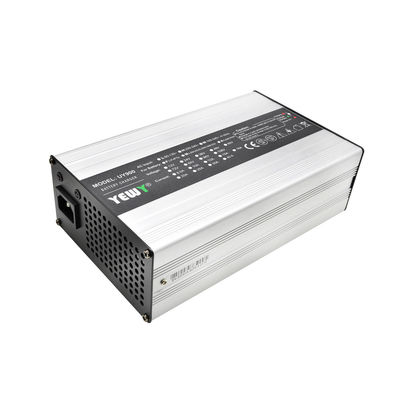

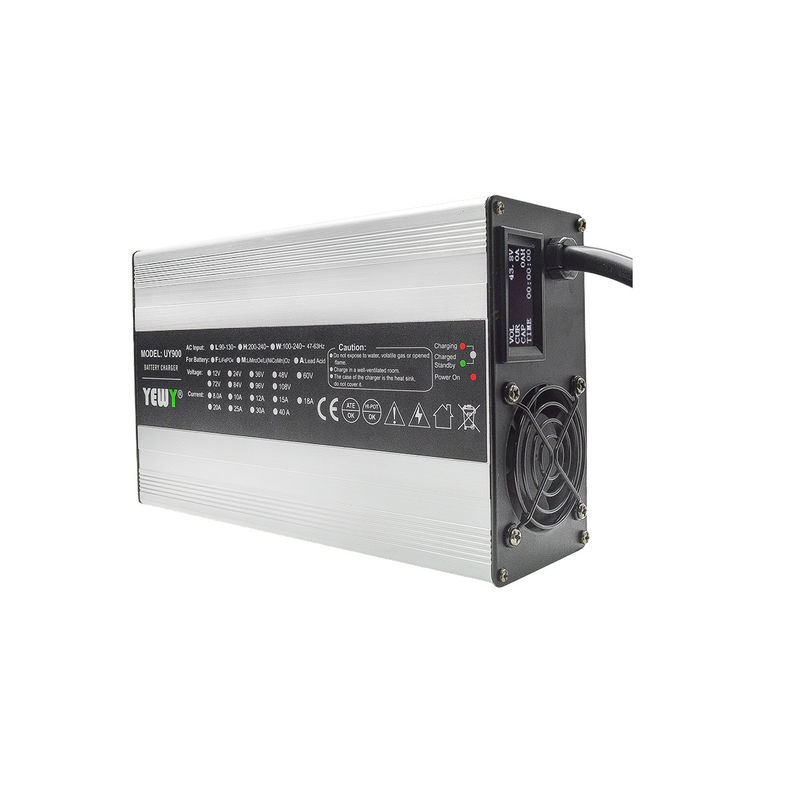

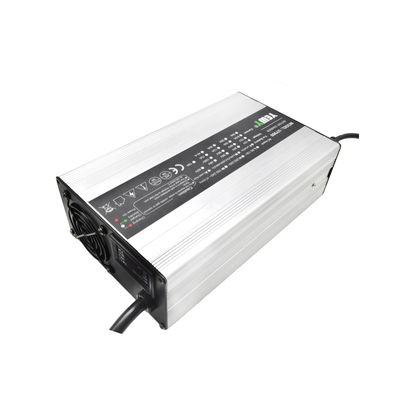

Meet Your Pinnacle Battery Charging Companion: The UY900
Unveil a realm of unparalleled battery charging synergy with the UY900 at your side!
The UY900 ushers in an unexplored echelon of battery charging efficiency, a gateway to a redefined charging experience. It has been meticulously designed to cater to the realms of both lead-acid and lithium batteries, bestowing upon you an embodiment of versatility. Its ingeniously sculpted automatic multi-stage charging curves are a testament to the craft of prolonging battery life, endowing you with the privilege of savoring an epoch of battery longevity that is hitherto unprecedented. Noteworthy safeguards against temperature surges, voltage spikes, current fluctuations, transitory disruptions, and the enigma of reverse polarity are etched into its core—a bulwark of protection that is as crucial as it is comprehensive.
Guided by the eloquent narratives of LED indicators, traverse the intricate tapestry of charging evolution in real time. Additionally, the unveiling of voltage and current incarnations, as depicted by the UY900's monitors, offers you an instantaneous rendezvous with the pulsating rhythm of the charging journey. The UY900 stands as a bastion of harmonious equilibrium, an architectural ode to energy optimization, illuminated by the current-fed half-bridge circuit design. This symphony finds resonance in the harmonious concordance of MCU control and Pulse Frequency Modulation (PFM) technology, a paean to both efficiency and environmental consciousness—a synergy of technological marvel and sustainable vision that is primed to satiate diverse charging requisites.
The UY900's resilient aluminum alloy chassis, adorned with the hallmark of durability, is further adorned with a handle-like design, a testament to the amalgamation of form and function. An ensemble of ingenuity is encapsulated within the realm of an intelligent temperature-regulated fan, a ballet of performance-enhancing prowess. Traverse the realm of control through the portals of CAN or RS485 interfaces, bespoke solutions that cater to a spectrum ranging from the technologically adept to the seekers of simplicity.
Elevate your charging odyssey to the zenith with the UY900—an icon of preeminence, a testament to aesthetic prowess, and an epitome of peerless performance. Embrace the UY900 as your beacon of transformation in the tapestry of charging encounters—a gateway to an electrifying realm of redefined possibilities that beckons you to seize the reins of evolution today!
| Charger Model: | UY900 |
| Housing: | Aluminium Alloy |
| Max Power: | 900W |
| Dimensions: | 222x134x70mm |
| AC Input: | 100-120Vac/200-240Vac, 47~63 Hz |
| Communication: | CAN, RS485,Bluetooth |
| Max Efficiency: | >=88% |
| Operating Temperature: | -20 to 40℃ |
| Storage Temperature: | -40 to 70℃ |
| Noise: | <=40dB |
| Cooling: | Active cooling with fan |
| Protection: | Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge |
| Charger type: | Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging. |
| Features: | Intelligent fully automatic charging, Automatic multi-stage charging curve, and obtains the battery status and switches the charging mode. |
| ITEM | vb1240 | vb2425 | vb3620 | vb4815 | vb6012 | vb7210 | vb8408 | ||
| Output | Output Voltage(V) | LFP | 14.6 | 29.2 | 43.8 | 58.4 | 73 | 87.6 | 102.2 |
| NCM | 16.8 | 29.4 | 42 | 54.6 | 67.2 | 84 | 105 | ||
| L-A | 14.7 | 29.4 | 44.1 | 58.8 | 73.5 | 88.2 | 102.9 | ||
| Float voltage | 13.8 | 27.6 | 41.4 | 55.2 | 69 | 82.8 | 96.6 | ||
| Voltage Float (V) | ±0.3 | ||||||||
| Max charge current(A) | 40 | 25 | 20 | 15 | 12 | 10 | 8 | ||
| Customisable current(A) | ≤40 | ≤25 | ≤20 | ≤15 | ≤12 | ≤10 | ≤8 | ||
| Maximum power (W) | 672 | 735 | 882 | 882 | 882 | 882 | 840 | ||
| Rotating lamp current(A) | LFP | 3.2 | 2 | 1.6 | 1.2 | 0.96 | 0.8 | 0.64 | |
| NCM | 3.2 | 2 | 1.6 | 1.2 | 0.96 | 0.8 | 0.64 | ||
| L-A | 10 | 6.25 | 5 | 3.75 | 3 | 2.5 | 2 | ||
| Ripple voltage | ≤2%VOUTMAX | ||||||||
| Input | Voltage range | v=W:100V~240VAC；v=H:200~240Vac；v=L:100~120Vac. | |||||||
| Frequency range | 47~63Hz | ||||||||
| Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | ||||||||
| Efficiency | ≥82% | ≥85% | ≥89% | ||||||
| Input current(type) | v=W:13A/115Vac,6A/230Vac；v=H:6A/230Vac；v=L:13A/115Vac. | ||||||||
| Vomit (type) | COLD START≤50A at 230VAC | ||||||||
| Leakage Current | ＜0.75m A | ||||||||
Automotive: Charging for vehicles, ensuring reliable starts.
RVs: Maintains RV batteries during storage.
Power Sports: Charges batteries for ATVs, jet skis.
Electric Vehicles: Extends battery life for EVs.
Industrial: Powers batteries in machinery, reducing downtime.
Emergency Backup: Charges backup batteries for outages.
Home Use: Charges tools, equipment at home.
Renewable Energy: Used in solar, wind setups.
Commercial Services: For battery service centers.
Off-Grid Living: Supports charging in remote locations.
Q: Why choose us?
A: There are several compelling reasons to choose us as your preferred provider:
1. Competitive Prices: As a manufacturer with our own factory and a dedicated R&D team, we possess a unique advantage in offering highly competitive prices compared to others in the market.
2. Fast Delivery: With the synergy of a mature factory, experienced engineers, and a proficient workforce, we are committed to ensuring swift delivery of our products to meet your time-sensitive needs.
3. Excellent Transportation Service: Our enduring collaborations with esteemed logistics partners such as DHL, UPS, and EMS translate into a reliable and efficient transportation network that guarantees timely and secure delivery.
4. Professional Expertise: With a rich experience spanning over 15 years, our adept research and development team stands ready to provide unparalleled support and expertise, ensuring that your requirements are met with precision.
5. Warranty Assurance: To underscore our dedication to customer satisfaction, all our products are backed by an 18-month warranty. This commitment ensures your peace of mind and underscores our confidence in the quality and reliability of our offerings.
6. Certifications: Our chargers proudly bear the CE & ROHS certifications, reflecting their adherence to stringent quality and safety standards. Moreover, many of our products hold additional prestigious certificates including UL, GS, FCC, CB, LVD, KC & KCC, reinforcing our dedication to product excellence.
Q:What custom services can you provide?
A:We can provide services such as product customization(current/voltage, electric circuit and function), appearance, label, package box, and other packaging design and shipping agency.
