Product Details:
|
| Material: | Aluminum Alloy,Black & Sliver | Dimension: | 208x120x70mm |
|---|---|---|---|
| Weight: | 2kg | Input: | 100Vac~120Vac/200Vac~240 Vac |
| Frequen: | 47~63Hz | Battery Type: | Lead Acid/Lifepo4/Li-ion Battery |
| Fan: | Intelligent Cooling Fan | Protection: | Output Over Voltage, Output Over Current, Short Circuit, Reverse Polarity, Over-Temperature |
| Output Voltage: | 24V | Output Current: | 20A |
| DC/AC Plug: | Optional Plug | Communication: | CAN/RS485 |
| Efficiency: | 88% | Warranty: | 18 Months |
| Operating Temperature: | -20 To 40 ℃ | Storage Temperature: | -40 To 70 ℃ |
| Highlight: | 24V Electric Car Battery Charger,20A Electric Car Battery Charger,20A Automotive Car Battery Charger |
||

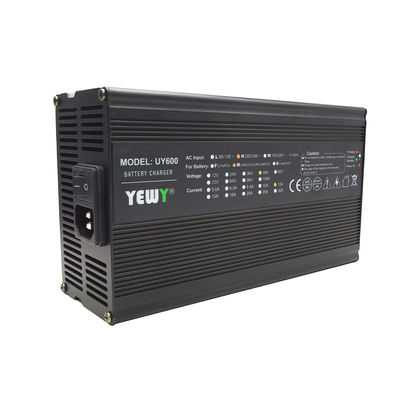

24V 20A Lithium Battery Charger, a high-performance charging solution designed to meet the diverse needs of various battery types. With its advanced features and intelligent design, this charger offers reliable and efficient charging for lead-acid batteries, LifePo4, and lithium batteries. Let's explore its key specifications and functionalities:
Wide AC Input Range: The charger operates seamlessly with AC input voltages ranging from 100V to 120V or 200V to 240V AC, covering a wide range of power systems and ensuring compatibility with different regions.
Powerful Output: With an output power of 600W, this charger delivers sufficient power to charge automotive lithium batteries efficiently. Its high output capacity allows for faster charging times and improved productivity.
High Efficiency: The charger boasts an impressive efficiency rating of 88% or higher, minimizing energy wastage during the charging process. This not only reduces operating costs but also promotes environmentally friendly practices.
Classic Half-Bridge Topology: The charger employs a proven and reliable classic half-bridge topology, ensuring stable and efficient power conversion. This topology maximizes charging performance and enhances overall reliability.

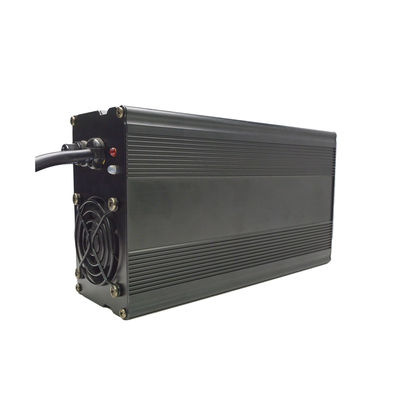

Intelligent Temperature Control Fan: Equipped with an intelligent temperature control fan, the charger effectively dissipates heat generated during the charging process. This ensures optimal operating conditions and extends the lifespan of the charger.
LED Indicator Lights: The charger features LED indicator lights that display the current operational status. These lights provide visual feedback, indicating whether the charging process is in progress, completed, or if any issues arise.
Communication Options: The charger supports various communication protocols, including CAN, RS485, and Bluetooth. This enables seamless integration with monitoring systems, allowing for remote monitoring and control of the charging process.
Comprehensive Charging Protection: To ensure the safety of both the battery and the charger, multiple protection functions are implemented. These include overtemperature, overvoltage, overcurrent, short circuit, and reverse polarity protection, safeguarding against potential hazards.
Product Features :
| Type | Specification | DC Voltage(Max) | (CC:A) Charging current |
Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | |||
| UY600 | 12V 25A | 12.6V/16.8V | 14.6V | 14.7V | 25A | 8%CC | 25%CC |
| 24V 20A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 20A | |||
| 36V 12A | 42V/46.2V | 43.8V | 44.1V | 12A | |||
| 48V 10A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 10A | |||
| 60V 8A | 63V/67.2V/71.4V | 73V | 73.5V | 8A | |||
| 72V 6A | 79.8V/84V | 87.6V | 88.2V | 6A | |||
1. AC input: 100-120V /200-240V AC, 47~63Hz
2. Output power:600W
3. Efficiency: >=88%
4. Compatible: Lead-Acid Batteries, LifePo4, and Lithium Batteries
5. Circuit: Classic Half-Bridge Topology
6. Intelligent temperature control fan
7. LED Indicator Lights to Display Current Operational Status
8. Communication: CAN, RS485, Bluetooth
9. Charging Protection Function: Overtemperature/Overvoltage/Overcurrent/Short Circuit/Reverse Polarity Protection
