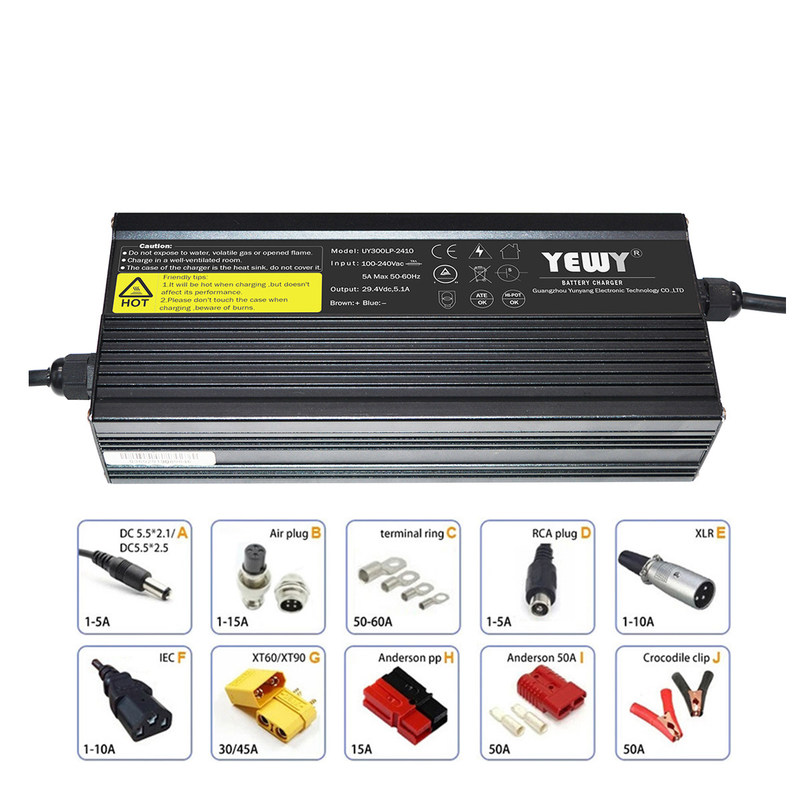

Outdoor 24V 10A Battery Charger Small Electric Lawn Mower Charger IP65

Certification
China Guangzhou Yunyang Electronic Technology Co., Ltd. certification
China Guangzhou Yunyang Electronic Technology Co., Ltd. certification
Customer Reviews
The experience with YEWY's customer support has been excellent. They promptly answered my pre-purchase inquiries and provided detailed information. Their dedication to ensuring customer satisfaction is commendable.

—— John Oliver

I'm Online Chat Now

Outdoor 24V 10A Battery Charger Small Electric Lawn Mower Charger IP65

Outdoor 24V 10A Battery Charger Small Electric Lawn Mower Charger IP65
Outdoor 24V 10A Battery Charger Small Electric Lawn Mower Charger IP65 Outdoor 24V 10A Battery Charger Small Electric Lawn Mower Charger IP65 Outdoor 24V 10A Battery Charger Small Electric Lawn Mower Charger IP65

Large Image :  Outdoor 24V 10A Battery Charger Small Electric Lawn Mower Charger IP65

Product Details:
Place of Origin: GUD, China
Brand Name: YEWY
Certification: CE,CB,C-TUV-US,FCC,LVD
Model Number: UY300LP
Payment & Shipping Terms:
Minimum Order Quantity: Contact me
Price: Contact me
Delivery Time: Contact me
Payment Terms: Contact me

Outdoor 24V 10A Battery Charger Small Electric Lawn Mower Charger IP65

Description
Material & Color: Aluminum Alloy & Black Dimension: 200x93x49mm
Weight: 2.1kg Input: 100-240VAC
Frequency: 47~63Hz Waterproof: IP65
Protection: Over Voltage Protection/Over Current Protection/Short Circuit Protection/Reverse Polarity Protection Output Voltage: Dc 24v
Output Current: 10amp DC/AC Connector: Can Be Selected
Efficiency: 92% Warranty: 18months
Operating Temperature: -20 ~ 40 ℃ Storage Temperature: -40 ~ 70 ℃
High Light:

Outdoor 24V 10A Battery Charger

,

24V 10A Battery Charger Small

,

Electric Lawn Mower Charger IP65

24V 10A Battery Charger - Outdoor Small Electric Lawn Mower Efficient Charger

The Outdoor Small Lawn Mower Charger is designed to provide efficient and reliable charging for your lawn mower batteries. With its versatile input range, intelligent charging capabilities, comprehensive protection features, and durable construction, this charger is an ideal solution for keeping your lawn mower powered up. Here are the key features of this charger:
Customized Charging Curve: We ensure that your batteries are charged with the appropriate charging curve, tailored to their specific requirements. This optimizes the charging process and extends the battery's overall lifespan.
Automatic Multi-Stage Charging Curve: The charger employs an automatic multi-stage charging curve, which benefits the battery's health and longevity. It transitions between charging modes such as charging wait, pre-charge, constant current, constant voltage, float charge, battery recovery, and full charge based on the battery's status.
Charging Protection Function: The charger is equipped with multiple charging protection features, including overtemperature, overvoltage, overcurrent, short circuit, and reverse polarity protection. These safeguards ensure safe and secure charging operations.
Intelligent Fully Automatic Charging: By continuously monitoring the battery's status, the charger intelligently switches between charging modes, ensuring optimal charging performance while preventing overcharging or undercharging.

Product parameters:

TypeSpecificationDC Voltage(Max)(CC:A)
Charging current
Light Turning(A)
Li-ionLifepo4Lead acidLithiumLead acid
UY300LP12V 16A12.6V/16.8V14.6V14.7V16A8%CC25%CC
24V 10A25.2V/29.4V/33.6V29.2V29.4V10A
36V 7A42V/46.2V43.8V44.1V7A
48V 5A50.4V/54.6V/58.8V54.75V/58.4V58.8V5A
60V 4A63V/67.2V73V73.5V4A
72V 3A84V/88.2V83.95V/87.6V88.2V3A



InputVoltage rangev=W,100V~240VAC;v=H,200~240Vac;v=L,100~120Vac
Frequency range47~63Hz
Power factorPF>0.98/115VAC, PF>0.95/230VAC at full load
Efficiency≥90%
Input current(type)v=W:5A/115Vac,2A/230Vac;v=H:2A/230Vac;v=L:5A/115Vac
Vomit (type)COLD START≤50A at 230VAC
Leakage current<0.75m A


 Product Features:

  1. Input range: 100-240Vac (Auto Wide Voltage)
  2. Suitable for charging lead-acid batteries (flooded, gel, and AGM) or lithium batteries (LiFePO4, LiMn2O4, LiNiCoMn)
  3. Automatic multi-stage charging curve for extended battery life
  4. Built-in charging protection features: over-temperature, over-voltage, over-current, short circuit, reverse polarity protection
  5. Intelligent fully automatic charging: Switches charging modes based on battery status (charging standby, pre-charge, constant current, constant voltage, float charge, topping charge, full charge)
  6. LED indicator lights for current operating status
  7. Utilizes LLC half-bridge topology for efficient and stable operation
  8. Pulse Frequency Modulation (PFM) technology for high efficiency (92%), stability, low carbon footprint, and compatibility with various battery charging curves
  9. Aluminum alloy housing for durability and aesthetic appeal
  10. Communication options: CAN, RS485
  11. IP65 waterproof rating


Charging Curve:
Outdoor 24V 10A Battery Charger Small Electric Lawn Mower Charger IP65 0Outdoor 24V 10A Battery Charger Small Electric Lawn Mower Charger IP65 1
Outdoor 24V 10A Battery Charger Small Electric Lawn Mower Charger IP65 2
Outdoor 24V 10A Battery Charger Small Electric Lawn Mower Charger IP65 3
