Product Details:
|
| Material: | Aluminum Alloy | Dimension: | 263x150x90mm |
|---|---|---|---|
| Weight: | 3.75Kg | Input: | 100~ 120Vac/200~240 Vac |
| Frequen: | 47-63Hz | Battery Type: | Lead Acid/Lifepo4/Li-ion Battery |
| Fan: | Intelligent Cooling Fan Controlled By Temperature And Load Current | Protection: | Output Over Voltage, Output Over Current, Short Circuit, Reverse Polarity, Over-Temperature |
| Output Voltage & Current: | 72volt/12amp | DC/AC Connector: | Optional Connector |
| Communication: | CAN/RS485/Bluetooth | Efficiency: | >=89%(full Load) |
| Warranty: | 18months | Operating Temperature: | -4℉ ~ 104℉（-20 To 40 ℃） |
| Storage Temperature: | -40 ~ 104℉（-40 To 70 ℃） | ||
| Highlight: | 72V Forklift Battery Charger,12A Forklift Battery Charger,12A Battery Charger Unleashing |
||
Product Description:
When it comes to charging forklift batteries, our advanced 72V 12A charger offers remarkable features that streamline the charging process. Let's delve into its key attributes:
Optimal Battery Lifespan: With an automatic multi-stage charging curve, our charger optimizes the charging process. By dynamically adjusting the charging parameters at different stages, it enhances battery life, ensuring long-term performance and reliability.
Comprehensive Protection: Safety is a top priority, and our charger incorporates multiple protection features. It guards against over-temperature, over-voltage, over-current, short circuit, and reverse polarity, providing a secure charging environment.
LED Status Indicators: The charger features LED lights that provide clear visual indications of the current working status. This intuitive display allows for easy monitoring and ensures you stay informed throughout the charging process.
Stable and Energy-efficient Design: Utilizing a current-mode half-bridge circuit topology, our charger achieves stability, efficiency, and energy savings. This design ensures reliable and consistent charging performance while minimizing power losses.
MCU Control and PFM Technology: With MCU control and pulse frequency modulation (PFM) technology, our charger offers high efficiency, excellent stability, and low carbon footprint. It can adapt to different battery charging curves, catering to diverse charging requirements.

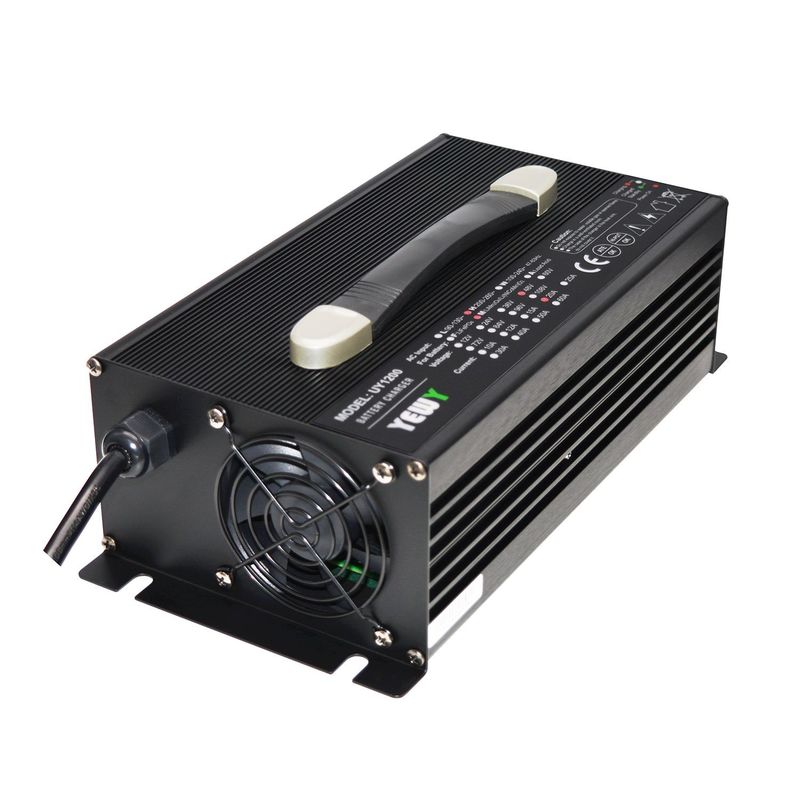

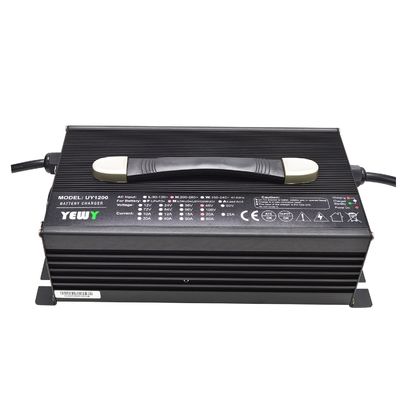

Durable and Portable Design: Encased in an aluminum alloy shell, our charger combines aesthetics with durability. The sleek design not only enhances its visual appeal but also ensures long-lasting performance. The charger is designed with a handle for easy portability, and its intelligent temperature control fan system enhances heat dissipation efficiency.
| Type | Specification | DC Voltage(Max) | (CC:A) Charging current |
Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | |||
| UY1200 | 12V 50A | 12.6V/16.8V | 14.6V | 14.7V | 50A | 8%CC | 25%CC |
| 24V 35A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 35A | |||
| 36V 25A | 42V/46.2V | 43.8V | 44.1V | 25A | |||
| 48V 20A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 20A | |||
| 60V 15A | 63V/67.2V/71.4V | 73V | 73.5V | 15A | |||
| 72V 12A | 79.8V/84V | 87.6V | 88.2V | 12A | |||
| 84V 11A | 88.2V | 102.2V | 107.8V | 11A | |||
| 96V 10A | 100.8V | 109.5V | 117.6V | 10A | |||
| 108V 8A | 113.4V | 120.45V | 132.3V | 8A | |||
| 120V 6A | 126V | 131.4V | 147V | 6A | |||
Product Features
1. AC input: 100-120V /200-240V AC, 47 to 63Hz
2. Output power:1200W

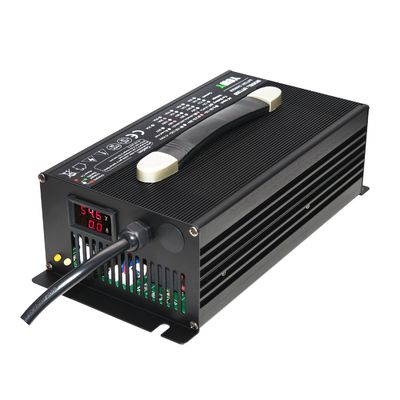

3. Equipped with an OLED display, it provides real-time visualization of the charging status.
4. Efficiency: >=89%
5. Utilizing a full-bridge topology, it is better suited for high-power applications and incorporates MCU control.
(1).It achieves dual fault detection and protection capabilities through software and hardware integration.
(2).It also enables flexible and convenient customization to meet individual requirements.
6. Communication options: RS485, CAN, and Bluetooth
7. Protections: Overvoltage Protection, Overcurrent Protection, Short Circuit Protection, Reverse Polarity Protection,Temperature Protection
