Product Details:
|
| Material: | Aluminum Alloy & Black/Sliver | Dimension: | 242x134x70 MM |
|---|---|---|---|
| Weight: | 3 KG | Rated Input Current: | 100-240Vac |
| Frequen: | 47-63Hz | Protection: | Over-voltage,Overcurrent,Short Circuit,Reverse Connection ,Over Temperature Protection |
| Output Voltage: | 48V | Charging Current: | 15A,14A,13A |

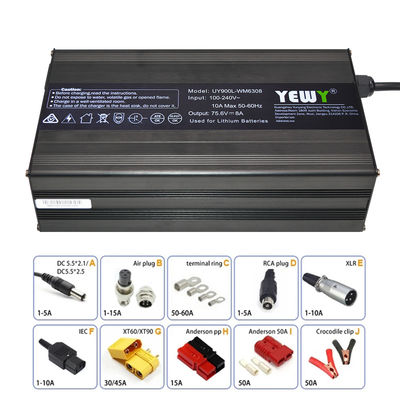

| DC/AC Connector: | Optional Connector | Efficiency: | 92% |
| Warranty: | 18 Months | Operating Temperature: | -20~40 ℃ |
| Storage Temperature: | -40~70 ℃ | ||
| Highlight: | Forklift Power Supply Lipo Charger,Power Supply Lipo Charger 15A,48V Battery Charger Lead Acid |
||

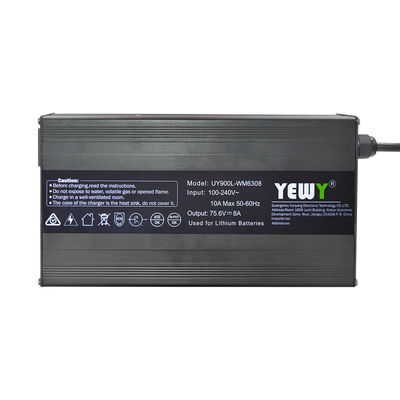

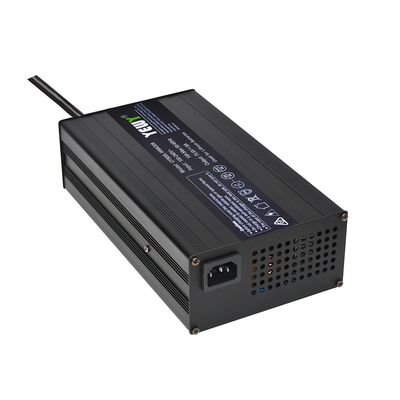

48V15A Lipo Battery Charger Power Supply Lead Acid Forklift Charger
The Forklift Battery Charger is a high-performance charging solution designed specifically for forklift batteries. With its advanced features and intelligent design, it ensures efficient and reliable charging.
Wide Input Voltage Range: The charger operates on a versatile input voltage range of 100-240V, allowing for adaptability to different power sources. It delivers a maximum output power of 900W, with no power reduction even at low input voltages.
CCM PFC + LLC Half-Bridge Topology: The charger's circuit features active Power Factor Correction (PFC) and a LLC half-bridge topology. This design ensures high power factor, exceeding 0.99 at full load, and high overall efficiency, reaching 92% or higher.

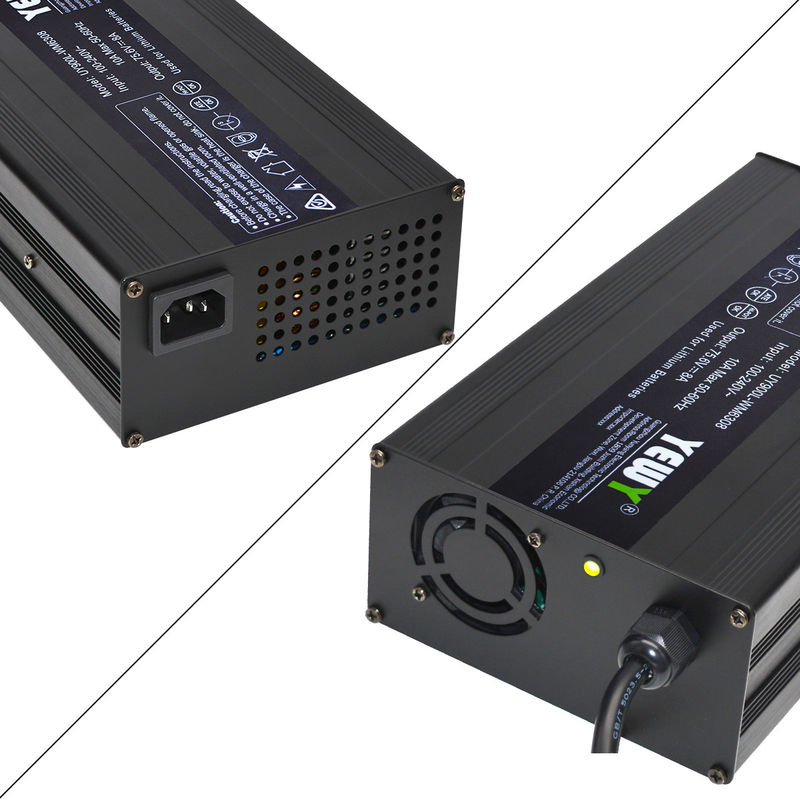

Dual Control of Temperature and Load Current: To maintain optimal operating conditions, the charger employs dual control of temperature and load current. This controls the speed of the cooling fan, ensuring efficient heat dissipation and energy-saving operation.
Aluminum Alloy Casing: The charger is housed in a durable and aesthetically pleasing aluminum alloy casing. Not only does it provide enhanced durability, but it also offers improved heat dissipation and reduced noise levels.
MCU-controlled Gradual Voltage and Current Rise: The charger's MCU control allows for a gradual rise in output voltage and current, providing enhanced protection for the battery and minimizing any potential impact during the charging process. It also enables customization of multiple charging curves to meet specific requirements.
Optional CAN or RS485 Communication: The charger offers the option to add CAN or RS485 communication interfaces. This allows for communication-controlled charging voltage and current, enabling customization of charging curves according to specific needs.
Comprehensive Protection: The charger features a comprehensive range of protections, including overvoltage, overcurrent, short circuit, overheating, and battery reverse connection protection. These safety measures ensure reliable and secure charging operations.
| Charger Model: | UY900L | Power: | 900W |
| Housing: | Aluminium Alloy | Size: | 242x134x70mm |
| AC Input: | 100-240Vac/47~63 Hz | Communication: | RS485,CAN |
| Max Efficiency: | >=92% | Operating Temperature: | -20 to 40℃ |
| Storage Temperature: | -40 to +70℃ | Noise: | <=40dB |
| Cooling: | Temperature + load current double control cooling fan | ||
| Protection: |
Over-voltage,Overcurrent,Short circuit,Reverse connection ,Over temperature protection |
||
|
Type |
Specification | DC Voltage(Max) | (CC:A) Charging current |
Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | |||
| UY900L | 12V 40A | 12.6V/16.8V | 14.6V | 14.7V | 40A | 8%CC | 25%CC |
| 24V 30A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 30A | |||
| 36V 20A | 42V/46.2V | 43.8V | 44.1V | 20A | |||
| 48V 15A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 15A | |||
| 60V 12A | 63V/67.2V/71.4V | 73V | 73.5V | 12A | |||
| 72V 10A | 79.8V/84V | 87.6V | 88.2V | 10A | |||
Product Features:
Charging Curve:
