Product Details:
|
| Housing Material & Color:: | Aluminum Alloy & Black/sliver | Dimension: | 11.93x5.91x3.54" (in Inch) |
|---|---|---|---|
| Weight: | 9.37 Lbs (4.25kg) | Frequenz: | 47~63Hz |
| Input Voltage: | 100~120 Vac/200~240 Vac | Charger Type: | Lead Acid/Lifepo4/Li-ion Battery |
| Fan: | Intelligent Cooling Fan Controlled By Temperature And Load Current | Protection: | Output Over Voltage, Output Over Current, Short Circuit, Reverse Polarity, Over-Temperature |
| Output Voltage: | DC 24Volt | Output Current: | 60A |
| DC/AC Connector: | Optional Connector | Communication: | CAN, RS485, Bluetooth |
| Efficiency: | 89% | Warranty: | 18 Months |
| Operating Temperature: | -20 To 40 ℃ | Storage Temperature: | -40 To 70 ℃ |
| Highlight: | DC 24V 60A Battery Charger,24V 60A Battery Charger,PFM Grass Trimmer Battery Chargers |
||

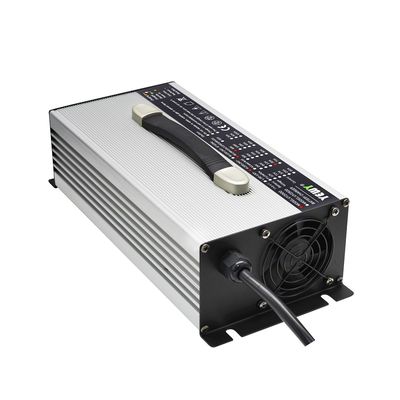

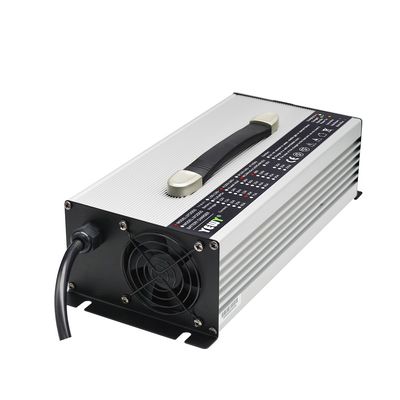

Efficient Power for Your Weed Trimmer: Introducing the Grass Trimmer Battery Charger
Customized Charging Curve: We understand the importance of battery health. That's why we provide tailored charging curves to match the specific requirements of your batteries, maximizing their lifespan and performance.
Multi-Stage Charging Curve: The charger employs a multi-stage charging curve, which includes different charging modes. This intelligent charging process helps extend the battery's overall life and ensures efficient charging performance.
Current-Mode Half-Bridge Circuit Topology: With the implementation of a current-mode half-bridge circuit topology, the charger delivers stable and efficient power conversion, optimizing energy utilization and minimizing waste.
MCU Control and Pulse Width Modulation (PFM) Technology: Equipped with MCU control and PFM technology, the charger achieves high efficiency, excellent stability, and low carbon emissions. It adapts to various battery charging curves, ensuring precise and reliable charging every time.
Communication Capabilities: The charger is equipped with multiple communication options, including CAN, RS485, and Bluetooth. These features enable convenient monitoring and control of the charging process, enhancing user experience and flexibility.
Built-in Charging Protections: Safety is our top priority. The charger incorporates comprehensive charging protections, including over-temperature, over-voltage, over-current, short circuit, and reverse polarity protection. These safeguards ensure safe and reliable charging operations.
| Type | Specification | DC Voltage(Max) | (CC:A) Charging current |
Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | |||
| UY2000 | 12V 90A | 12.6V/16.8V | 14.6V | 14.7V | 90A | 8%CC | 25%CC |
| 24V 60A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 60A | |||
| 36V 40A | 42V/46.2V | 43.8V | 44.1V | 40A | |||
| 48V 30A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 30A | |||
| 60V 25A | 63V/67.2V/71.4V | 73V | 73.5V | 25A | |||
| 72V 20A | 79.8V/84V | 87.6V | 88.2V | 20A | |||
| 84V 18A | 88.2V | 102.2V | 107.8V | 18A | |||
| 96V 16A | 100.8V | 109.5V | 117.6V | 16A | |||
| 108V 10A | 113.4V | 120.45V | 132.3V | 10A | |||
| 120V 9A | 126V | 131.4V | 147V | 9A | |||
Product Features
1.CCM PFC + classic full-bridge configuration.
(1) Self-balancing capability.
(2) Enable from 0 voltage starting charging.
(3)With MCU, Optional configuration of RS485, CAN or Bluetooth communication function.

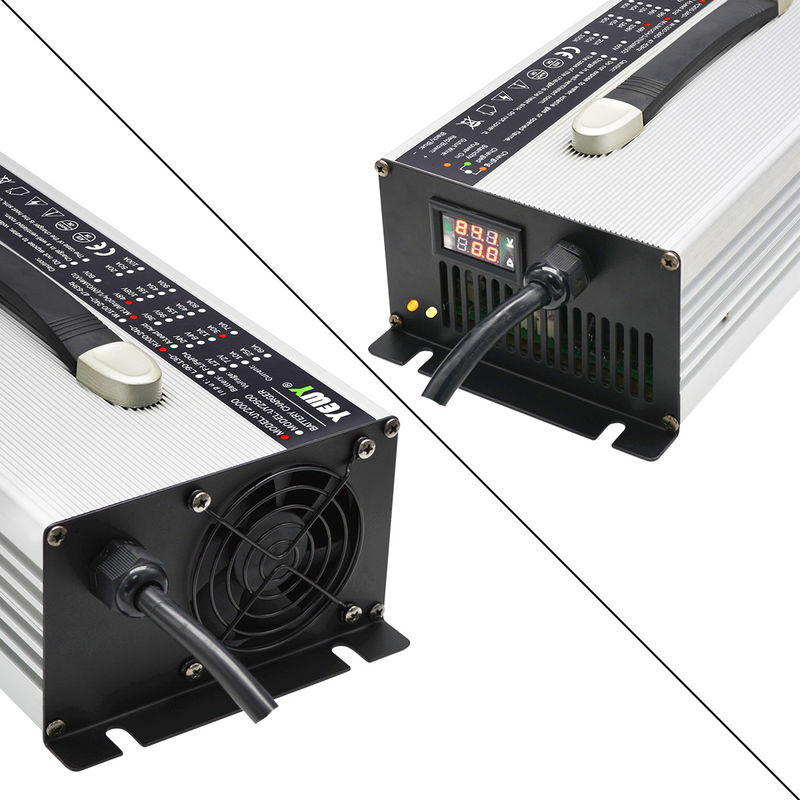

2.LED instrument display, indicating both voltage and current.
3.Intelligent cooling Fan controlled by temperature and load current.
4..Protection features: Overcurrent, Overvoltage, Overtemperature, Short Circuit, Reverse Polarity, Shutdown or Trickle Charge, Anti-reverse charging.
