Product Details:
|
| Material & Color: | Aluminum Alloy&Sliver | Dimension: | 250x162x93mm |
|---|---|---|---|
| Input: | 100VAC~240VAC | Frequency: | 47~63Hz |
| Charger Type: | Lead Acid/LiFePO4/Li-ion Battery | Fan: | Temperature + Load Current Double Control Fan Speed |
| Protection: | Over Current/Over Voltage/Over Temperature/Short Circuit/Reverse Polarity/shut Off Or Trickle And Anti-reverse Charger. | Output Voltage: | 36Volt |
| Output Current: | 25Amp | DC/AC Connector: | Optional Connector |
| Efficiency: | 90% | Warranty: | 18 Months |
| Operating Temperature: | -20 To 40 ℃ | Storage Temperature: | -40 To 70 ℃ |
| Highlight: | 12V Deep Cycle Marine Charger,Deep Cycle Marine Charger Agm,50A Battery Charger |
||
12V 50A Deep Cycle Marine Agm Lead Acid Battery Charger
Introducing the 12V 50A Deep Cycle Marine AGM Lead Acid Battery Charger, designed to provide optimal charging performance for your marine battery. Let's explore its key features:
Multi-Stage Charging Curve: The charger utilizes an automatic multi-stage charging curve, promoting the longevity of your battery and ensuring it reaches its full potential.
Comprehensive Charging Protection: With built-in protection features, including over-temperature, over-voltage, over-current, short circuit, and reverse polarity protection, this charger safeguards both the battery and the charging process.
Intelligent Fully Automatic Charging: Equipped with intelligent technology, this charger detects the battery's current state and adjusts the charging mode accordingly. It seamlessly transitions between charging modes such as charging wait, pre-charge, constant current, constant voltage, float charging, capacity compensation, and full charge, ensuring efficient and complete charging.
MCU Controlled Gradual Current Ramp-Up: The charger's MCU (Microcontroller Unit) controls the output current ramp-up, ensuring a smooth charging process without impacting the battery. This results in high efficiency, stability, and energy-saving benefits.
Durable and Efficient Aluminum Alloy Housing: The charger is housed in an aluminum alloy casing, combining durability and aesthetics. The robust construction ensures longevity, while the aluminum alloy aids in efficient heat dissipation.
IP65 Waterproof Rating: Built to withstand marine environments, this charger boasts an IP65 waterproof rating, providing protection against water splashes and ensuring reliable performance in challenging conditions.
Product Features:
| Charger Model: | UY1200S | Power: | 1200W |
| Housing: | Aluminium Alloy | Size: | 250*162*93mm |
| Communication: | CAN, RS485 | Waterproof: | IP65 |
| Efficiency: | >=90% | Operating Temperature: | -20 to 40℃ |
| Storage Temperature: | -40 to +70℃ | Noise: | <=40dB |
| Cooling: | Temperature and load current-controlled fan | ||
| Protection: |
Over-temperature, over-voltage, over-current, short-circuit, and reverse connection protection. |
||
| Charger type: | Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging. | ||
| Features: |
1.Automatic multi-stage charging curve for long battery life 2.Intelligent fully automatic charging: obtains the battery status and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge) |
||
| ITEM | vb1250 | vb2440 | vb3625 | vb4820 | |
|
Output |
LFP charging voltage | 14.6V | 29.2V | 43.8V | 54.75V |
| NCM charging voltage | 16.8V | 29.4V | 42.0V | 54.6V | |
| L-A charging voltage | 14.7V | 29.4V | 44.1V | 58.8V | |
| Float voltage | 13.8V(only Lead) | 27.6V(only Lead) | 41.4V(only Lead) | 55.2V(only Lead) | |
| Constant charge current | 50A | 40A | 25A | 20A | |
|
Rotating lamp current |
Lead 12.5A/ Lithium 4A | Lead 10A/ Lithium 3.2A | Lead 6.25A/ Lithium 2A | Lead 5A/ Lithium 1.6A | |
| Ripple voltage | ≤2%VOUTMAX | ||||
|
Input |
Voltage range | 90V~260VAC | |||
| Frequency range | 47~63Hz | ||||
| Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | ||||
| Input current(type) |
v=W,20A/115VAC,10A/230VAC；v=H,10A/230VAC； v=L,20A/115VAC |
||||
| Vomit (type) | COLD START 50A at 230VAC | ||||
| Leakage Current | ＜0.75m A | ||||
1. Compatible with AGM, gel, lead-acid, NCM, LFP, lithium-ion batteries.
2. Intelligent fully automatic charging: switch charging modes based on the battery's status.
3. Automatic multi-stage charging curve for longer battery life.

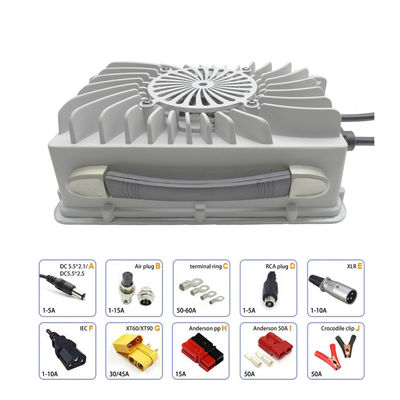

4. Supports multiple output plugs
5. Customizable charging profiles or charging modes.
6. With MCU-automated adjustable charging curve, enhanced protection features, and the ability to customize the charging curve.
7. Communication options: RS485, CAN.
Charging Curve:
