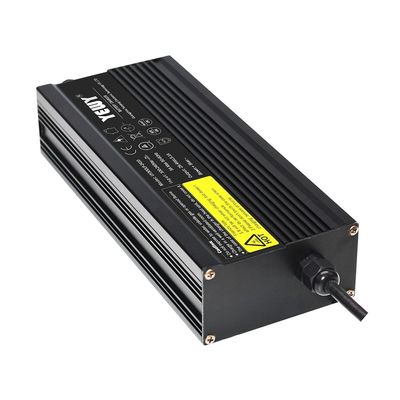

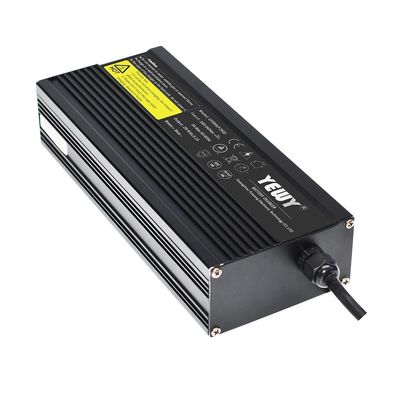

Product Details:
|
| Material & Color: | Aluminum Alloy & Black | Dimension: | 200x93x49mm |
|---|---|---|---|
| Weight: | 2.1kg | Input: | 100-240VAC |
| Frequency: | 47-63Hz | Waterproof: | IP65 |
| Protection: | Over Voltage Protection/Over Current Protection/Short Circuit Protection/Reverse Polarity Protection | Output Voltage: | 24V |
| Output Current: | 10A | DC/AC Connector: | Optional Connector |
| Efficiency: | 92% | Warranty: | 18months |
| Operating Temperature: | -20 ~ 40 ℃ | Storage Temperature: | -40 ~ 70 ℃ |
| High Light: | 24V AGV Battery Charger,10A AGV Battery Charger,24V 10A Charger |
||

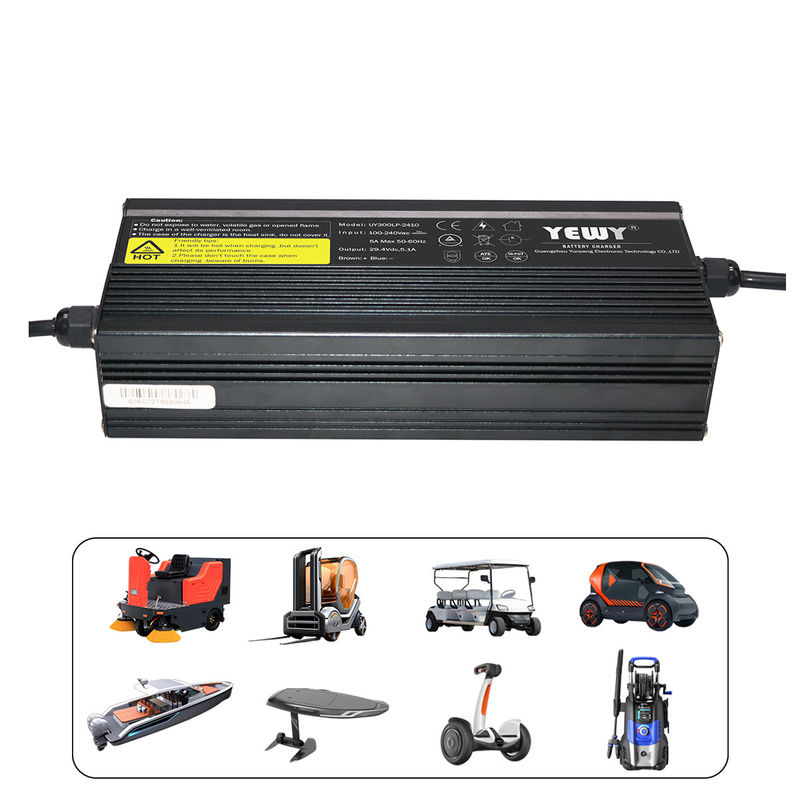

24V 10A Sweeper Battery Charger: Efficient Power for Optimal Performance
To effectively charge your sweeper battery using a 24V 10A charger, our advanced charger provides the ideal solution. Here's how it can meet your charging needs:
Wide Input Range: The charger operates within a wide input range of 100-240Vac, allowing flexibility in power supply options.
Multi-Stage Charging Curve: The charger utilizes an automatic multi-stage charging curve. This intelligent design optimizes the charging process by adjusting the charging parameters at different stages. This feature contributes to extending the battery's lifespan and ensures efficient charging.

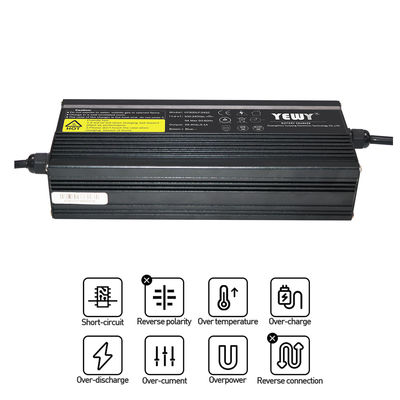

Charging Protection Functions: The charger incorporates built-in protection functions to safeguard the battery during the charging process. It offers protection against over-temperature, over-voltage, over-current, short-circuit, and reverse connection, providing a safe and reliable charging experience.
Intelligent Fully Automatic Charging: Equipped with intelligent technology, the charger can automatically detect the battery's state and switch between different charging modes, including charging standby, pre-charge, constant current, constant voltage, float charge, topping charge, and full charge. This ensures optimal charging based on the battery's requirements.
LLC Half-Bridge Circuit Topology: The charger adopts an LLC half-bridge circuit topology. This design offers advantages such as high efficiency, stable performance, and low carbon footprint. It satisfies the diverse charging curve requirements of different batteries.
Pulse Frequency Modulation (PFM) Technology: With PFM technology, the charger achieves high efficiency of 92%, ensuring minimal energy wastage. It also provides excellent stability and meets the specific charging curve demands of various batteries.
Communication Capabilities: The charger supports communication protocols such as CAN and RS485, enabling convenient connectivity and control. This facilitates advanced monitoring and management of the charging process.
| Type | Specification | DC Voltage(Max) | (CC:A) Charging current |
Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | |||
| UY300LP | 12V 16A | 12.6V/16.8V | 14.6V | 14.7V | 16A | 8%CC | 25%CC |
| 24V 10A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 10A | |||
| 36V 7A | 42V/46.2V | 43.8V | 44.1V | 7A | |||
| 48V 5A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 5A | |||
| 60V 4A | 63V/67.2V | 73V | 73.5V | 4A | |||
| 72V 3A | 84V/88.2V | 83.95V/87.6V | 88.2V | 3A | |||
| Input | Voltage range | v=W,100V~240VAC；v=H,200~240Vac；v=L,100~120Vac |
| Frequency range | 47~63Hz | |
| Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | |
| Efficiency | ≥90% | |
| Input current(type) | v=W:5A/115Vac,2A/230Vac；v=H:2A/230Vac；v=L:5A/115Vac | |
| Vomit (type) | COLD START≤50A at 230VAC | |
| Leakage current | ＜0.75m A |
Product Features:
Charging Curve:
