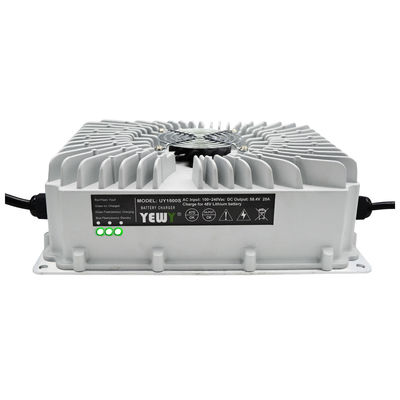

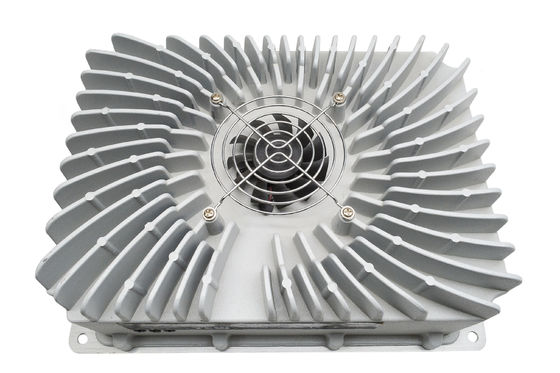

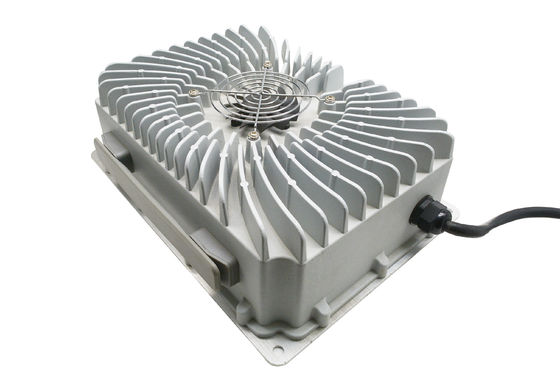

Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality

Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality
Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality
Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality

Large Image :  Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality

Product Details:
Place of Origin: GUD,CN
Brand Name: YEWY
Model Number: UY1500S
Payment & Shipping Terms:
Minimum Order Quantity: one pc
Price: contact me
Packaging Details: 2pcs/Carton
Delivery Time: three or five days
Payment Terms: T/T
Supply Ability: 5000 pcs per month

Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality

Description
Input Voltage: AC 110-220V Output Voltage: 12v, 24v, 36v, 48v, 60v, 72v, Etc.
Output Current: 50a, 40a, 30a, 25a, 20a, 16a, Etc. Storage Temperature: -40°C To 70°C
Environmental Temperature: -20℃ To 40℃ Fan: Silent Cooling Fan
Size: 310*230*101mm Frequen: 47~63Hz
Charging Time: 5-8 Hours Leakage Current: <=0.75mA
Efficiency: >=90%(full Load) Battery Type: LiFePO4, Lithium-ion, Lead Acid
Waterproof: IP65 Weight: 6.0kg
Warranty: 18Months
Highlight:

Lightweight 1500w Battery Charger

,

Watertightness 1500w Battery Charger

,

Pre-charging 1500w Battery Charger

Production Introduction

UY1500S Waterproof battery charger adpots aluminium Alloy shell,Waterpproof Rating IP64 Full-bridge type,full automatic transition of CC,CV and Float/Cut-off,meet the demands for different Curve.Voltage & Current LED meter display (optional).Certification CE ROSH,Intelligent cooling fan, controlled by temperature.

Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality 0


Operating Instruction



Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality 1




1. Lithium Battery Charger Charging Curve

Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality 2



2. Lead Acid Battery Charger Charging Curve

Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality 3

Note: The charging curve above are our factory default setting, if there is a need to communicate before placing an order, it can be adjusted as needed before the factory.





Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality 4



Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality 5



Product Features

  • Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging.
  • Automatic multi-stage charging curve for longer battery life.
  • Charging protection function: over temperature, over voltage, over current, short circuit, reverse connection protection.
  • Intelligent automatic charging: monitor the battery status, and charging mode can be timely adjusted by users (Standby/precharge/constant current/constant voltage/float charge/recharge/full).
  • LED indicate current operating status.

Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality 6





About US

Guangzhou Yunyang Electronic Technology Co., Ltd., founded in 2013, is a national high-tech enterprise which is specializing in manufacture, development and sales of chargers, providing professional supporting charging power supply solutions for new energy battery plants at home and abroad, AGV storage and transportation, agricultural UAVs, AI robots, etc. Yunyang has a dozens-member R&D team, thousands of square meters manufacturing base, over 25 product patents, and we have obtained the CE,UL,CB,GS,FCC,KC,SAA C-TUV-US etc certificates.

Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality 7



Watertightness Pre-charging CC/CV 1500w Battery Charger Lightweight High-quality 8


FAQ

Q:Can I have a sample order?

A:Yes, we can provide an initial sample. But our samples are not free and you should pay for it.



Q: What is the payment?

A: Most of them are 30% T/T prepaid, and the rest need to be paid before shippment.



Q: What special services can you provide?

A: Product customisation (current/voltage, electrical circuit and function), appearance, label, package box and other packaging design and shipping agency.



Q: Is there a professional R&D team and engineering technology department?

A: We have independent R&D team with high degree and rich experience, which makes us have strong ability to meet our customers' demands.



Q: How do you ship the goods and how long does it take to arrive?

A:We often ship by DHL, UPS, FedEx or TNT. It usually takes 4-5 days to arrive. Airline and sea shipping is also optional.
