Product Details:
|
| Material & Color: | Aluminum Alloy & Black/Sliver | Dimension: | 262*136*89 Mm |
|---|---|---|---|
| Weight: | 3 Kg | Input: | 100-240 Vac |
| Frequen: | 47-63Hz | Charger Type: | Lead Acid/Lithium/Li-ion Battery |
| Fan: | Temperature + Load Current Double Control Fan Speed | Protection: | Over Current, Over Voltage, Over Temperature, Short Circuit, Reverse Polarity, Shut Off Or Trickle And Anti-reverse Charger. |
| Output Voltage: | 12 Volt | Output Current: | 30 Amp |
| DC/AC Connector: | Optional Connector | Efficiency: | >=92%(full Load) |
| Warranty: | 18 Months | Operating Temperature: | -20 ~ 40 ℃ |
| Storage Temperature: | -40 ~ 70 ℃ | ||
| High Light: | 12V Electric Wheelchair Battery Charger,30A Electric Wheelchair Battery Charger,14.6V Lifepo4 Charger |
||

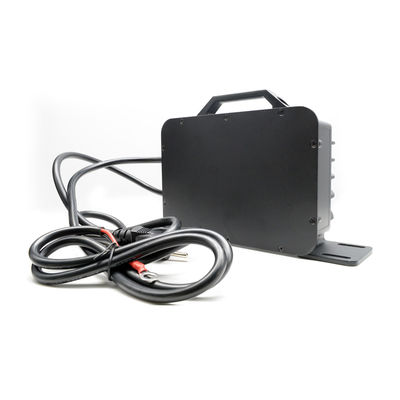

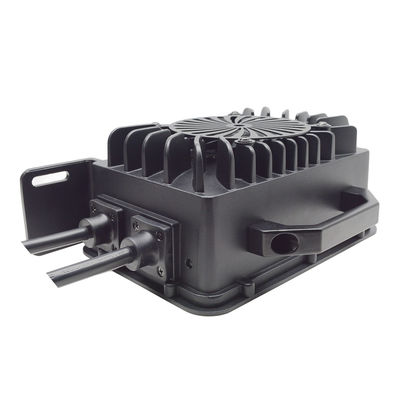

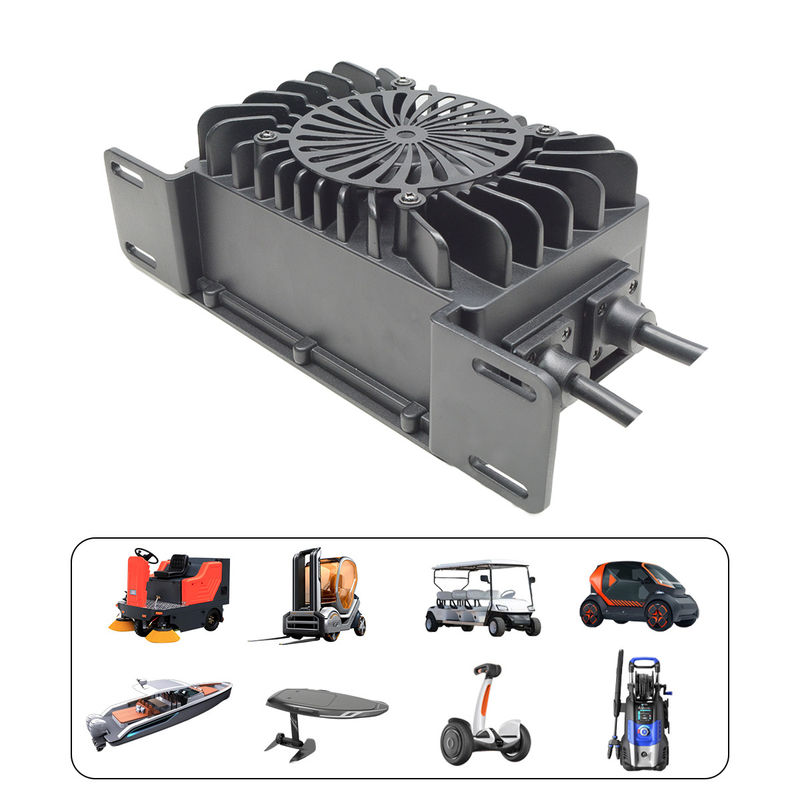

12V 30A Electric Vehicle Wheelchair 14.6V Lifepo4 16.8V Lithium Charger
Product Description:
Charge your electric vehicle or wheelchair with the reliable and versatile 12V 30A Charger. It supports both lead-acid batteries (including water-filled, gel, and absorbed glass mat types) and lithium batteries (such as lithium iron, lithium manganese, and lithium ternary).
Experience extended battery life with the charger's automatic multi-stage charging curve. It optimizes the charging process to ensure the longevity of your batteries. Choose from three preset charging curves (LFP/NCM/L-A) that suit your specific battery type.
Charger is equipped with essential charging protection features. It safeguards against over-temperature, over-voltage, over-current, short circuit, and reverse polarity issues, ensuring secure and reliable charging.
The charger features intelligent fully automatic charging, which dynamically adjusts charging modes based on the battery's state. It offers various charging modes, including charging standby, pre-charge, constant current, constant voltage, float charge, battery supplementation, and full charge.
Stay informed about the charging process with the LED indicators that display the current working status. The clear visual cues help you monitor the progress effortlessly.
The charger incorporates an advanced CCM PFC+LLC half-bridge topology circuit. It boasts self-balancing regulation capabilities, high power factor, and superior efficiency. With a microcontroller unit (MCU), it provides enhanced protection and allows for customizable charging curves to suit your specific requirements.
For added convenience and communication options, the charger offers optional RS485 and CAN communication functions. These interfaces enable you to monitor and control the charging process remotely, providing flexibility and ease of use.
Choose the 12V 30A Charger for efficient and reliable charging of your electric vehicle or wheelchair. With its advanced features, customizable charging curves, and communication options, it ensures optimal performance and extends the life of your batteries.
| ITEM | vb1230 | vb2420 | vb3613 | vb4810 | vb6008 | vb7206 | ||
| Output | Output voltage (V) | LFP | 14.6 | 29.2 | 43.8 | 58.4 | 73.0 | 87.6 |
| NCM | 16.8 | 29.4 | 42.0 | 54.6 | 67.2 | 84.0 | ||
| L-A | 14.7 | 29.4 | 44.1 | 58.8 | 73.5 | 88.2 | ||
|
Float voltage(V) (only L-A) |
13.8 | 27.6 | 41.4 | 55.2 | 69 | 82.8 | ||
| Max charging current (A) | 30 | 20 | 13 | 10 | 8 | 6 | ||
| Customizable current (A) | ≤30 | ≤20 | ≤13 | ≤10 | ≤8 | ≤6 | ||
| Max power (W) | 504 | 588 | 573.3 | 588 | 588 | 529.2 | ||
| Rotating lamp current(A) | LFP | 2.4 | 1.6 | 1.04 | 0.8 | 0.64 | 0.48 | |
| NCM | 2.4 | 1.6 | 1.04 | 0.8 | 0.64 | 0.48 | ||
| L-A | 7.5 | 5.0 | 3.25 | 2.5 | 2.0 | 1.5 | ||
| Ripple voltage | ≤2%VOUTMAX | |||||||
| Input | Voltage range | v=W,100V~240VAC；v=H,200~240Vac；v=L,100~120Vac | ||||||
| Frequency range | 47~63Hz | |||||||
| Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | |||||||
| efficiency | ≥92% | |||||||
| Input current(type) | v=W,20A/115VAC,10A/230VAC；v=H,10A/230VAC；v=L,20A/115VAC | |||||||
| Vomit (type) | COLD START≤50A at 230VAC | |||||||
| Leakage current | ＜0.75m A | |||||||
Product Features:
|
Charger Model:
|
UY600S
|
Power:
|
600W
|
|
Housing:
|
Aluminium Alloy
|
Size:
|
262*88.5*161.8mm
|
|
Communication:
|
CAN, RS485
|
Waterproof:
|
IP65
|
|
Efficiency:
|
>=92%
|
Operating Temperature:
|
-20 to 40℃
|
|
Storage Temperature:
|
-40 to +70℃
|
Noise:
|
<=40dB
|
|
Cooling:
|
Temperature and load current-controlled fan
|
||
|
Protection:
|
Over-temperature, over-voltage, over-current, short-circuit,and reverse connection protection. | ||
|
Charger type: |
Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging.
|
||
|
Features:
|
1.Automatic multi-stage charging curve for long battery life
2.Intelligent fully automatic charging: obtains the battery status
and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge) |
||
Charging Curve:
