Product Details:
|
| Material: | Aluminum Alloy | Waterproof: | IP65 |
|---|---|---|---|
| Charging Modes: | CC/CV | DC/AC Connector: | Optional |
| Protection: | Over-charge, Over-discharge, Over-current, Short-circuit | Operating Temperature: | -20° ~ 40° |
| Efficiency: | ≥ 87% | Model: | UYMC-4P-W1210 |
| Highlight: | 12V On-Board boat marine charger,waterproof On-Board boat marine charger,Smart On-Board boat marine charger |
||

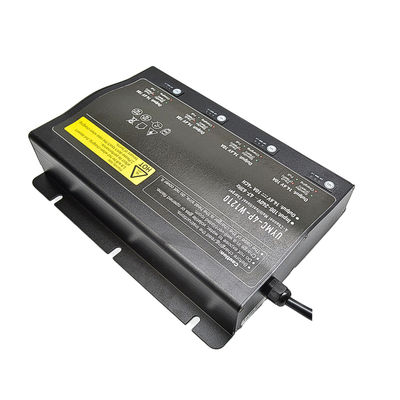

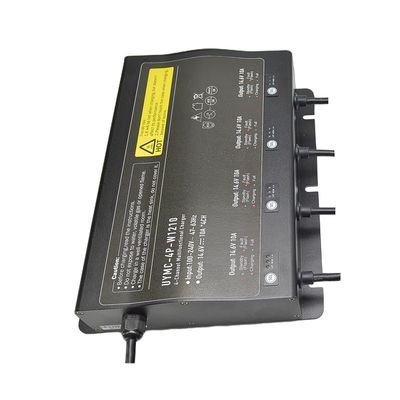

| Model | UYMC-4P-W1210 |
| Housing | Aluminum alloy |
| Voltage range | 90V ~ 260VAC, 47 ~ 63Hz |
| Efficiency | ≥ 87% |
| Power | 672W |
| Dimensions | 303x203.6x63mm |
| Waterproof | IP65 |
| Operating temperature | -20° ~ 40° |
| Storage temperature | -40°~70° |
| Cooling | Without fan |
| Protection | Short circuit protection/Reverse protection/Over-current protection/Over temperature protection/ Overvoltage protection |
| Charging type | Workable for Lifepo4, lithium ion battery, lead acid battery. |
| Features | 1. Intelligent fully automatic charging, automatic multi-stage charging curve takes battery status and switches charging mode for long battery life. 2. Adjustable charging battery type -NCM/LFP/L-A. |
Guangzhou Yunyang Electronic Technology Co., Ltd., founded in 2013, is a national high-tech enterprise which is specializing in production, development and sales of chargers, providing professional supporting charging power supply solutions for new energy battery plants at home and abroad, AGV storage and transportation, agricultural UAVs, AI robots, etc. Yunyang has a dozens-member R&D team, thousands of square meters manufacturing base, 25 product patents, and we have obtained the CE,UL,CB,GS,FCC,KC,SAA C-TUV-US etc certificates.
Q:Is there a professional R & D team and engineering technology department?
A:Independent R&D Team with high degree and rich experience,which makes us have the strong ability to meet different demands from our customers.
Q: What is the payment term?
A: Most of them are 30% T/T prepaid, and the rest need to be paid before shipment.
Q: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of battery chargers with more than 15 years experience and "hi-tech Enterprise" in China. We hold certificates in accordance with ISO 9001:2015 and ISO 14001:2015. To maintain these standards, we have implemented a robust management system that not only supports our certification, but also ensures that we adhere to the strict requirements set by these standards.

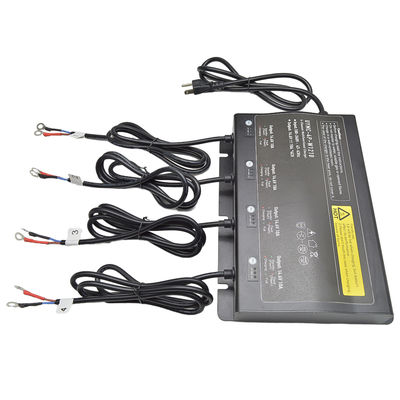

4-channel multifunctional battery charger
1. LLC+ active PFC.
2.Support wide voltage (90~260Vac) input, High efficiency.
3.Charge 4 groups of batteries at the same time.
4.With charger button function according to the button switch to adapt to different types of batteries.(LFP/NCM/L-A)
Better fit than traditional chargers.
