Product Details:
|
| Display Mode: | LED/LCD Display | Input Voltage: | 100Vac-120Vac/ 200Vac-240Vac, 47~63Hz |
|---|---|---|---|
| Warranty: | 18 Months | Output Voltage: | 12V |
| Protection Mode: | Over Voltage Protection, Over Current Protection, Short Circuit Protection | Communication: | CAN, RS485, Bluetooth |
| Application: | Lead Acid/Lifepo4/Lithium Ion Battery Charger | Power: | 900W |
| Highlight: | Electric Scooter Charger 24V,Electric Scooter Charger 15A |
||

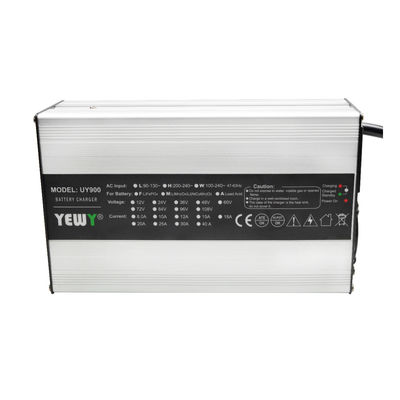

The UY900: Elevating Your Battery Charging Experience to Unprecedented Heights!
Introducing the UY900—a battery charging marvel that stands as your quintessential companion in the realm of charging dynamism. This powerhouse emerges as a harbinger of transformation, poised to redefine the contours of your charging encounters. With a nod to versatility, it caters to both the dominion of lead-acid and the expanse of lithium batteries—a testament to its unifying essence.
Embrace a symphony of battery longevity as the UY900 unveils its arsenal of automatic multi-stage charging curves, orchestrated to perfection. Its fortress of safeguards is impervious, guarding against temperature surges, voltage crescendos, current fluctuations, the specter of short circuits, and the conundrum of reverse polarity. The UY900's narrative is one of empowerment—an ode to a battery's resilience and endurance.
The UY900 beckons you to partake in the dance of illumination as LED indicators weave a tale of charging progression in real time. The voltage and current displays stand as sentinels of information, offering a glimpse into the immediate state of your charging journey. The UY900's symphony of energy efficiency reaches its crescendo through the ballet of its current-fed half-bridge circuit design, harmonizing with the prowess of MCU control and the artistry of Pulse Frequency Modulation (PFM) technology—a melody that resonates with equilibrium and innovation.
In the realm of portability, the UY900 dons the cloak of convenience—a sturdy aluminum alloy chassis, embellished with a handle design, ushers forth a testament to both durability and ease of transportation. The saga continues with an intelligent temperature-controlled fan—an emissary of optimal performance, operating with the finesse of a maestro's baton. Traverse the domains of control through the avenues of CAN or RS485 interfaces—choices that empower both the technologically adept and those who seek simplicity.
Prepare for a revolution in the domain of charging dynamics as the UY900 extends an invitation to reevaluate your battery charging encounters. Witness the emergence of a new epoch—an era that heralds the confluence of outstanding features, striking aesthetics, and performance excellence. The UY900—your catalyst for metamorphosis—awaits, ready to escort you into a realm where charging encounters transcend the ordinary.
| Charger Model: | UY900 |
| Housing: | Aluminium Alloy |
| Max Power: | 900W |
| Dimensions: | 222x134x70mm |
| AC Input: | 100-120Vac/200-240Vac, 47~63 Hz |
| Communication: | CAN, RS485,Bluetooth |
| Max Efficiency: | >=88% |
| Operating Temperature: | -20 to 40℃ |
| Storage Temperature: | -40 to 70℃ |
| Noise: | <=40dB |
| Cooling: | Active cooling with fan |
| Protection: | Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge |
| Charger type: | Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging. |
| Features: | Intelligent fully automatic charging, Automatic multi-stage charging curve, and obtains the battery status and switches the charging mode. |
| ITEM | vb1240 | vb2425 | vb3620 | vb4815 | vb6012 | vb7210 | vb8408 | ||
| Output | Output Voltage(V) | LFP | 14.6 | 29.2 | 43.8 | 58.4 | 73 | 87.6 | 102.2 |
| NCM | 16.8 | 29.4 | 42 | 54.6 | 67.2 | 84 | 105 | ||
| L-A | 14.7 | 29.4 | 44.1 | 58.8 | 73.5 | 88.2 | 102.9 | ||
| Float voltage | 13.8 | 27.6 | 41.4 | 55.2 | 69 | 82.8 | 96.6 | ||
| Voltage Float (V) | ±0.3 | ||||||||
| Max charge current(A) | 40 | 25 | 20 | 15 | 12 | 10 | 8 | ||
| Customisable current(A) | ≤40 | ≤25 | ≤20 | ≤15 | ≤12 | ≤10 | ≤8 | ||
| Maximum power (W) | 672 | 735 | 882 | 882 | 882 | 882 | 840 | ||
| Rotating lamp current(A) | LFP | 3.2 | 2 | 1.6 | 1.2 | 0.96 | 0.8 | 0.64 | |
| NCM | 3.2 | 2 | 1.6 | 1.2 | 0.96 | 0.8 | 0.64 | ||
| L-A | 10 | 6.25 | 5 | 3.75 | 3 | 2.5 | 2 | ||
| Ripple voltage | ≤2%VOUTMAX | ||||||||
| Input | Voltage range | v=W:100V~240VAC；v=H:200~240Vac；v=L:100~120Vac. | |||||||
| Frequency range | 47~63Hz | ||||||||
| Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | ||||||||
| Efficiency | ≥82% | ≥85% | ≥89% | ||||||
| Input current(type) | v=W:13A/115Vac,6A/230Vac；v=H:6A/230Vac；v=L:13A/115Vac. | ||||||||
| Vomit (type) | COLD START≤50A at 230VAC | ||||||||
| Leakage Current | ＜0.75m A | ||||||||
Automotive: Charging for vehicles, ensuring reliable starts.
RVs: Maintains RV batteries during storage.
Power Sports: Charges batteries for ATVs, jet skis.
Electric Vehicles: Extends battery life for EVs.
Industrial: Powers batteries in machinery, reducing downtime.
Emergency Backup: Charges backup batteries for outages.
Home Use: Charges tools, equipment at home.
Renewable Energy: Used in solar, wind setups.
Commercial Services: For battery service centers.
Off-Grid Living: Supports charging in remote locations.
Q: Why choose us?
A: There are several compelling reasons to choose us as your preferred provider:
1. Competitive Prices: As a manufacturer with our own factory and a dedicated R&D team, we possess a unique advantage in offering highly competitive prices compared to others in the market.
2. Fast Delivery: With the synergy of a mature factory, experienced engineers, and a proficient workforce, we are committed to ensuring swift delivery of our products to meet your time-sensitive needs.
3. Excellent Transportation Service: Our enduring collaborations with esteemed logistics partners such as DHL, UPS, and EMS translate into a reliable and efficient transportation network that guarantees timely and secure delivery.
4. Professional Expertise: With a rich experience spanning over 15 years, our adept research and development team stands ready to provide unparalleled support and expertise, ensuring that your requirements are met with precision.
5. Warranty Assurance: To underscore our dedication to customer satisfaction, all our products are backed by an 18-month warranty. This commitment ensures your peace of mind and underscores our confidence in the quality and reliability of our offerings.
6. Certifications: Our chargers proudly bear the CE & ROHS certifications, reflecting their adherence to stringent quality and safety standards. Moreover, many of our products hold additional prestigious certificates including UL, GS, FCC, CB, LVD, KC & KCC, reinforcing our dedication to product excellence.
Q:What custom services can you provide?
A:We can provide services such as product customization(current/voltage, electric circuit and function), appearance, label, package box, and other packaging design and shipping agency.
