Product Details:
|
| Input: | 100-120Vac/200-240Vac, 47~63Hz | Output: | 48V/3A |
|---|---|---|---|
| Material: | Aluminum Alloy&Black/Sliver | OEM/ODM: | Accept |
| Charger Type: | Li-ion/Lifepo4/Lead Acid Battery Charger | Warranty: | 18 Months |
| Protection: | Over Temperature, Over Voltage And Over Current Short Circuit Protection | Compatibility: | Electric Scooter |
| Plug Type: | Optional | Size: | 157x90x50mm |
| Power Indicator: | LED | ||
| Highlight: | 48V Electric Scooter Battery Charger,3A Electric Scooter Battery Charger,48V 3A Battery Charger |
||

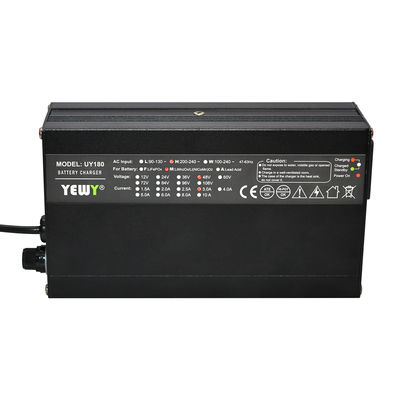

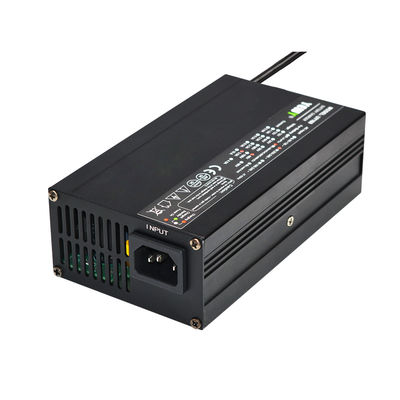

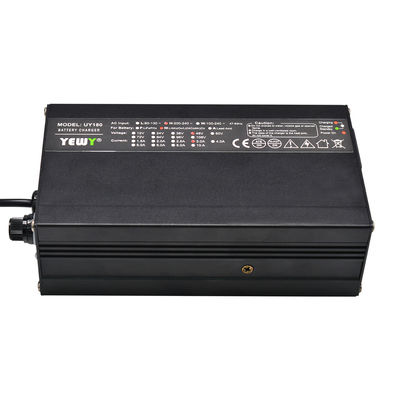

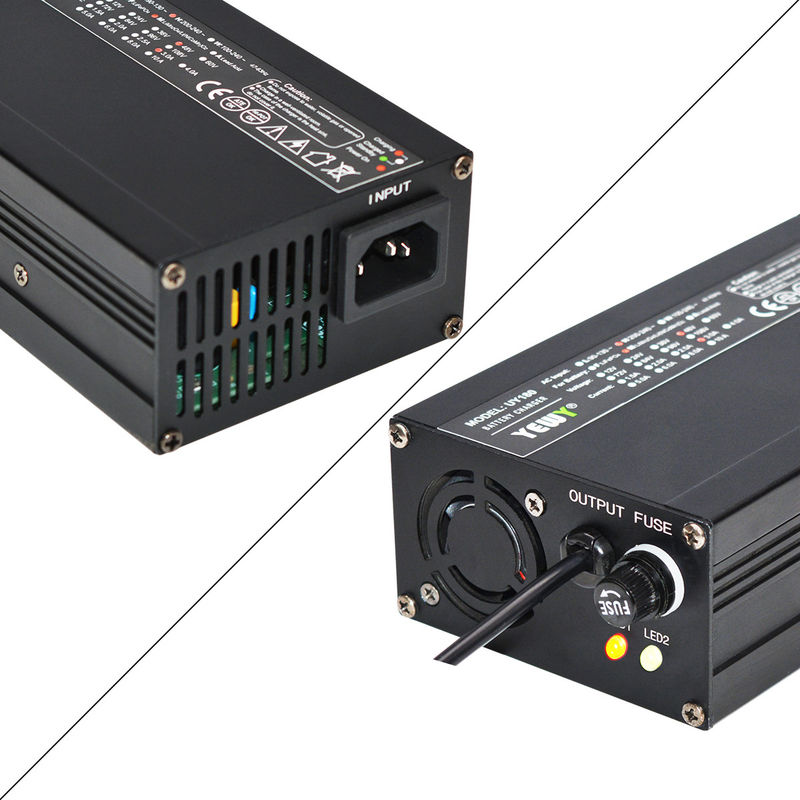

48V 3A E-scooter Battery Charger: Efficient Power for Your Ride
E-scooter Battery Charger: Efficient Power for Your Ride
The E-scooter Battery Charger is a high-performance charging solution designed specifically for e-scooter batteries. With its advanced features and reliable performance, it ensures optimal charging efficiency. Here are the key features of this charger:
Powerful 180W Output: The charger delivers a robust power output of 180W, providing fast and efficient charging for e-scooter batteries.
Economy with Style: Encased in an aluminum case, the charger combines economy with elegance. Its robust construction ensures durability, while the sleek design adds a touch of sophistication.
Flyback Circuit Topology: The charger employs a flyback circuit topology, a proven design that ensures efficient power conversion and reliable operation.
Quasi-Resonant Pulse Width Modulation (PWM): Equipped with quasi-resonant PWM technology, the charger achieves precise control over the charging process. It seamlessly transitions between constant current (CC), constant voltage (CV), and float/cut-off modes, meeting the specific curve demands of different battery types.
Comprehensive Protections: Safety is a top priority. The charger incorporates multiple protection features, including overcurrent, overvoltage, over-temperature, and short circuit protection. These safeguards ensure the charger and the connected battery are well-protected during the charging process.
Silent Cooling Fan: To maintain optimal operating temperatures, the charger utilizes a silent cooling fan. This fan operates quietly, efficiently dissipating heat and ensuring stable performance.
Product introduction
| Type | Specification | DC Voltage(Max) | (CC:A) Charging current |
Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | |||
| UY180 | 12V 8A | 12.6V/16.8V | 14.6V | 14.7V | 8A | 8%CC | 25%CC |
| 24V 5A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 5A | |||
| 36V 4A | 42V/46.2V | 43.8V | 44.1V | 4A | |||
| 48V 3A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 3A | |||
| 60V 2.5A | 63V/67.2V/71.4V | 73V | 73.5V | 2.5A | |||
| 72V 2A | 79.8V/84V | 87.6V | 88.2V | 2A | |||
1.180W
2. Economy,Aluminum case, Robust, Elegant and Reliable
3. Circuit Topology: Flyback type
4. Quasi-resonant pulse width modulation(PWM),full automatic transition of CC,CV and Float/Cut off, meet the demands for different Curve
5. Protections: Over Current, Over Voltage, Over temperature, Short Circuit, shut off
6. Use silent cooling fan
