Product Details:
|
| Warranty: | 18 Months | Weight: | 10.58lbs (4.8kg) |
|---|---|---|---|
| Protection: | Output Over Voltage, Output Over Current, Short Circuit, Reverse Polarity, Over-Temperature | Charging Mode: | Pre-Charge/CC/CV/Recharge |
| Size: | 11.93x5.91x3.54 Inch | Compatible Battery: | Li-ion/ IMR/ INR/ ICR/ Lifepo4 |
| Color: | Black | Display: | LED Display |
| Highlight: | RS485 Lead Acid Battery Charger,Lead Acid Battery Charger Adjustable Voltage |
||

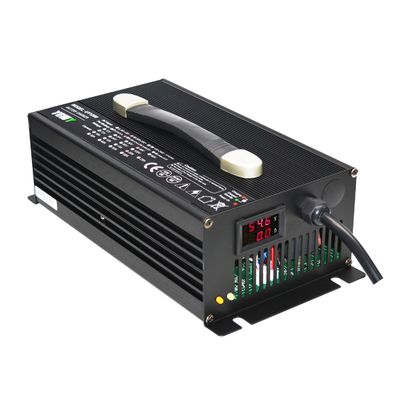

Lead Acid Battery Charger DC48V 20A With Adjustable Voltage Current
The UY1200 is the Ultimate Charging Solution.
The UY1200 accommodates all of your charging needs, from adaptable lead-acid batteries to lithium batteries. Its sophisticated multi-stage charging curves increase battery longevity and performance while prioritizing safety with specific safeguard systems.
With an LED indicator and a vibrant voltage and current display, you can keep track of the charging process's progress. The UY1200 is highly efficient and eco-friendly thanks to the MCU control and Pulse Frequency Modulation (PFM) technology, and its handle form supports simple transportation.
With the default mode or the may and RS485 communication interfaces, you may easily change charging to meet your needs. The current-fed half-bridge architecture and sophisticated temperature-controlled fan revolutionize charging and keep your batteries running securely and efficiently.
With the UY1200, you can become a part of the future. Its unrivaled performance, sturdy construction, and cutting-edge features make it the ideal battery charging solution.
| Charger Model: | UY1200 |
| Housing: | Aluminium Alloy |
| Max Power: | 1200W |
| Dimensions: | 263x150x90mm |
| AC Input: | 100-120Vac/200-240Vac,47~63 Hz |
| Communication: | CAN, RS485,Bluetooth |
| Max Efficiency: | 89% |
| Operating Temperature: | -20 to 40℃ |
| Storage Temperature: | -40 to 70℃ |
| Noise: | <=40dB |
| Cooling: | Intelligent temperature control fan |
| Protection: | Over Current, Over Voltage, Over temperature, Short Circuit, Reverse |
This device is everything you need to keep your power sources fully charged:
| UY1200 | ||||||
| Specification | DC Voltage(Max) | (CC:A) Charging current |
Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | ||
| 12V 50A | 12.6V/16.8V | 14.6V | 14.7V | 50A | 8%CC | 25%CC |
| 24V 35A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 35A | ||
| 36V 25A | 42V/46.2V | 43.8V | 44.1V | 25A | ||
| 48V 20A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 20A | ||
| 60V 15A | 63V/67.2V/71.4V | 73V | 73.5V | 15A | ||
| 72V 12A | 79.8V/84V | 87.6V | 88.2V | 12A | ||
| 84V 11A | 88.2V | 102.2V | 107.8V | 11A | ||
| 96V 10A | 100.8V | 109.5V | 117.6V | 10A | ||
| 108V 8A | 113.4V | 120.45V | 132.3V | 8A | ||
| 120V 6A | 126V | 131.4V | 147V | 6A | ||
Boating and Marine
UY1200 is ideal for marine applications. It can charge batteries for boats, yachts, and marine equipment, providing consistent power for navigation and onboard systems.
Vehicles for Recreation
The UY1200 is an excellent choice for power in campers, RVs, and trailers. Because of its multi charging functionality, charging numerous batteries is both convenient and efficient. As a result, outdoor experiences no longer need to be concerned about battery power.
Industrial Machinery
The UY1200 is also frequently used in industrial facilities to maintain the operational readiness of any battery-powered equipment. It is compatible with various types of batteries and can include protection features to ensure continuous workflow.
