Product Details:
|
| Material & Color: | Aluminum Alloy& Sliver | Dimension: | 310x230x101mm |
|---|---|---|---|
| Input Voltage Range: | 100Vac-240Vac | Frequency: | 47-63Hz |
| Charger Type: | Lead Acid/Lifepo4/Li-ion Battery | Communication: | CAN/RS485 |
| Waterproof: | IP65 | Efficiency: | >=90% |
| Fan: | Temperature + Load Current Double Control Fan Speed | Protection: | Over Current,Over Voltage,Over Temperature, Short Circuit,Reverse Polarity,shut Off Or Trickle And Anti-reverse Charger. |
| Output Voltage: | 24V | Output Current: | 40A |

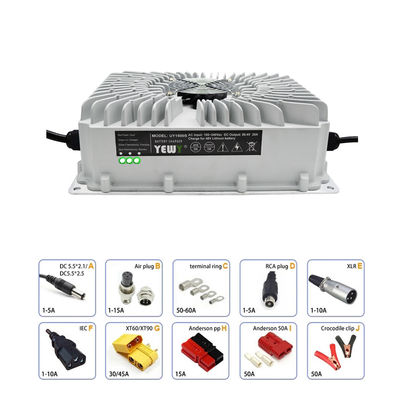

| DC/AC Connector: | Optional Connector | Warranty: | 18 Months |
| Operating Temperature: | -20-40 ℃ | Storage Temperature: | -40-70 ℃ |
| Highlight: | 24V Lithium Ion Battery Charger,Lithium Ion Battery Charger 40A,Boat Lithium Battery Charger Waterproof |
||
24V40A Waterproof Ip65 Automatic Boat Lithium Ion Battery Charger
This 24V40A waterproof IP65 automatic marine lithium-ion battery charger has several excellent features designed to provide marine users with an efficient, reliable and safe charging solution.
The charger adopts intelligent and fully automatic charging technology, switching charging modes according to battery status and adopting a multi-stage charging curve to help prolong battery life. Charging modes include charge wait/precharge/constant current/constant voltage/float charge/recharge/full charge.
The charger is equipped with charging protection functions such as over temperature, over voltage, over current, short circuit and reverse polarity protection to ensure safe and reliable charging process.
Adopt CCM PFC+classic full-bridge topology: The charger adopts CCM PFC+classic full-bridge topology circuit design with self-balancing adjustment capability, and can start charging from 0 voltage to improve the performance and efficiency of the charger.
Dual temperature + load current control cooling fan speed: The charger is equipped with a dual temperature and load current control cooling fan, which adjusts the speed as needed to ensure the charger's cooling effect and stability.
Aluminum alloy shell: The charger adopts aluminum alloy shell, which is beautiful and sturdy in appearance, durable and reliable.
Waterproof grade IP65: The charger is equipped with IP65 level of waterproof performance, which can work reliably in the harsh marine environment.
Communication Function: It supports RS485 and CAN communication function, which can connect and communicate with other devices and provide more convenient charging management and monitoring functions.
Product Introduction:
| Charger Model: | UY1500S | Power: | 1500W |
| Housing: | Aluminium Alloy | Size: | 310x230xmm |
| Communication: | CAN, RS485 | Waterproof: | IP65 |
| Efficiency: | >=90% | Operating Temperature: | -20 to +40℃ |
| Storage Temperature: | -40 to +70℃ | Noise: | <=40dB |
| Cooling: | Temperature and load current-controlled fan | ||
| Protection: | Over-temperature, over-voltage, over-current, short-circuit,and reverse connection protection. | ||
| Charger type: | Lifepo4, Lithium ion, Lead Acid battery charger | ||
| Features: | 1.Automatic multi-stage charging curve for long battery life | ||
| 2.Intelligent fully automatic charging: obtains the battery status and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge) | |||
| Type | Specification | DC Voltage(Max) | (CC:A) Charging current | Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | |||
| UY1500S | 12V 55A | 12.6V/16.8V | 14.6V | 14.7V | 55A | 8%CC | 25%CC |
| 24V 40A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 40A | |||
| 36V 30A | 42V/46.2V | 43.8V | 44.1V | 30A | |||
| 48V 25A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 25A | |||
| 60V 20A | 63V/67.2V/71.4V | 73V | 73.5V | 20A | |||
| 72V 16A | 84V/88.2V | 83.95V/87.6V | 88.2V | 16A | |||
1. Suitable for charging lead-acid or lithium batteries, according to your battery, we will set up a matched charging curve.
2. Automatic multi-stage charge curve, which helps to prolong battery life
3. With charging protection function: over temperature / over voltage / over current / short circuit / reverse polarity protection
4. Intelligent automatic charging: detects the battery status and then switches the charging mode (charge waiting/precharge/constant current/constant voltage/float charge/recharge/full charge)
5. LEDs to indicate current operating status
6. Power circuit: CCM PFC + classic full-bridge topology, advantage one: self-balancing regulation capability, two: 0-voltage start charge available.
7. MCU control output current slowly rise, no impact on the battery, high efficiency, good stability, low carbon energy saving.
Charging Curve:
