Product Details:
|
| Material & Color: | Aluminum Alloy & Sliver | Dimension: | 250x162x93 Mm |
|---|---|---|---|
| Input Voltage Range: | 100~240Vac | Frequency: | 47~63Hz |
| Charger Type: | Lead Acid/Lifepo4/Li-ion Battery | Fan: | Temperature + Load Current Double Control Fan Speed |
| Protection: | Over Current, Over Voltage, Over Temperature, Short Circuit, Reverse Polarity, Shut Off Or Trickle And Anti-reverse Charger. | Output Voltage: | 36V |
| Output Current: | 25A | DC/AC Connector: | Optional Connector |
| Efficiency: | >=90%(full Load) | Warranty: | 18 Months |
| Operating Temperature: | -20 ~ 40 ℃ | Storage Temperature: | -40 ~ 70 ℃ |
| High Light: | 36V Universal Car Charger,25A Universal Car Charger,Lifeboat Battery Power Charger |
||

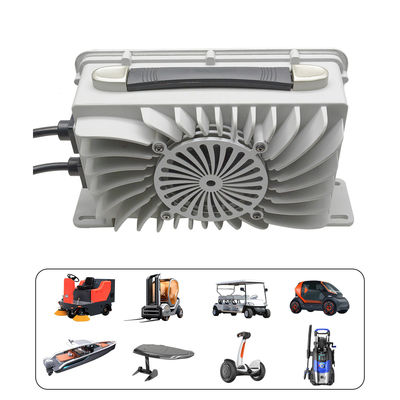

36V 25A Universal Vehicle Car Lifeboat Battery Power Charger - Lead Acid Battery
Experience Powerful and Reliable Charging with the 36V 25A Universal Vehicle Car Lifeboat Battery Power Charger!
Optimized Multi-Stage Charging: With its automatic multi-stage charging curve, this charger employs advanced charging algorithms that prolong battery life.

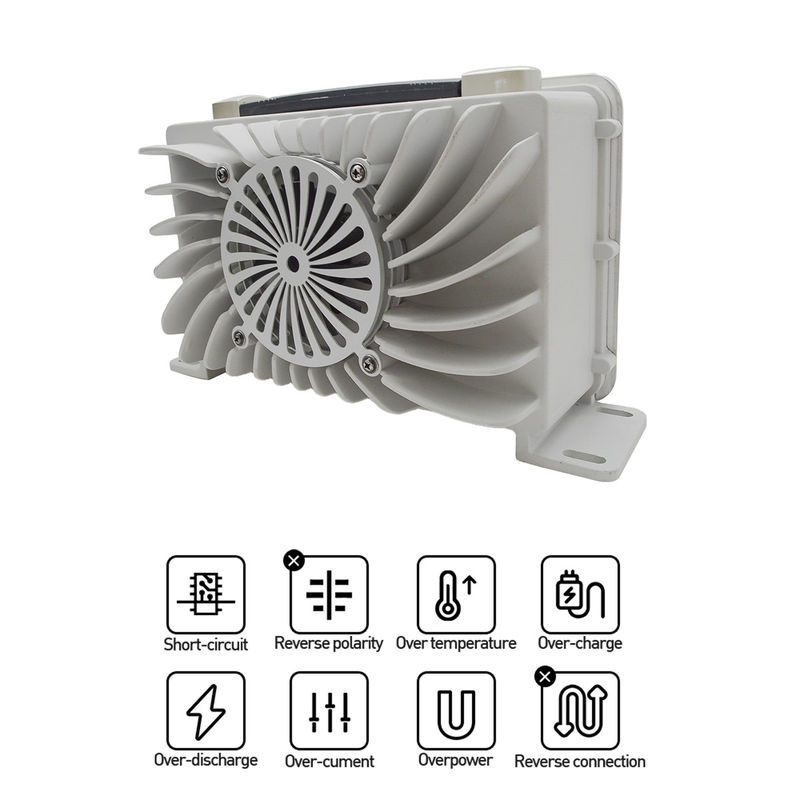

Comprehensive Protection Features: Your battery's safety is our utmost priority. This charger is equipped with built-in protection features including over-temperature protection, over-voltage protection, over-current protection, short circuit protection, and reverse polarity protection.
Intelligent Full Automatic Charging: The charger's intelligent full automatic charging system accurately detects the battery's status and adjusts the charging mode accordingly.
Cutting-Edge Technology: Featuring an APFC+LLC resonant half-bridge topology and MCU-controlled output current ramp-up, this charger achieves high efficiency, stability, and energy-saving capabilities.
Durable and Waterproof Design: Crafted with an aluminum alloy housing, this charger offers a balance of durability and aesthetics. Its robust construction ensures longevity, while the IP65 waterproof rating protects against water damage, making it suitable for various environments.
With the 36V 25A Universal Vehicle Car Lifeboat Battery Power Charger, you can confidently charge your lead acid or lithium batteries while enjoying the benefits of automatic, intelligent, and reliable charging.
Product Introduction:
| Charger Model: | UY1200S | Power: | 1200W |
| Housing: | Aluminium Alloy | Size: | 250x162x93mm |
| Communication: | CAN, RS485 | Waterproof: | IP65 |
| Efficiency: | >=90% | Operating Temperature: | -20 to +40℃ |
| Storage Temperature: | -40 to +70℃ | Noise: | <=40dB |
| Cooling: | Temperature and load current-controlled fan | ||
| Protection: | Over-temperature, over-voltage, over-current, short-circuit, | ||
| and reverse connection protection. | |||
| Charger type: | Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging. | ||
| Features: | 1.Automatic multi-stage charging curve for long battery life | ||
| 2.Intelligent fully automatic charging: obtains the battery status and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge) | |||
| ITEM | vb1250 | vb2440 | vb3625 | vb4820 | |
| Output | LFP charging voltage | 14.6V | 29.2V | 43.8V | 54.75V |
| NCM charging voltage | 16.8V | 29.4V | 42.0V | 54.6V | |
| L-A charging voltage | 14.7V | 29.4V | 44.1V | 58.8V | |
| Float voltage | 13.8V(only Lead) | 27.6V(only Lead) | 41.4V(only Lead) | 55.2V(only Lead) | |
| Constant charge current | 50A | 40A | 25A | 20A | |
| Rotating lamp current | Lead 12.5A/ Lithium 4A | Lead 10A/ Lithium 3.2A | Lead 6.25A/ Lithium 2A | Lead 5A/ Lithium 1.6A | |
| Ripple voltage | ≤2%VOUTMAX | ||||
| Input | Voltage range | 90V~260VAC | |||
| Frequency range | 47~63Hz | ||||
| Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | ||||
| Input current(type) | v=W,20A/115VAC,10A/230VAC；v=H,10A/230VAC； | ||||
| v=L,20A/115VAC | |||||
| Vomit (type) | COLD START 50A at 230VAC | ||||
| Leakage Current | ＜0.75m A | ||||
1. Compatible with AGM, gel, lead-acid, NCM, LFP, lithium-ion batteries.
2. Intelligent fully automatic charging: switch charging modes based on the battery's status.
3. Automatic multi-stage charging curve for longer battery life.

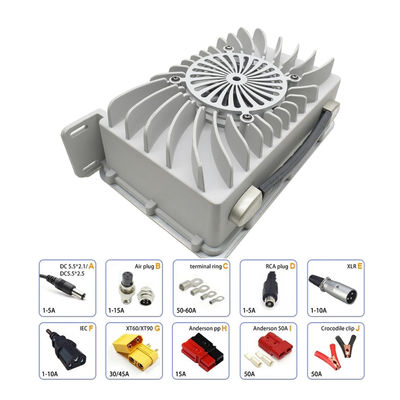

4. Supports multiple output plugs
5. Customizable charging profiles or charging modes.
6. With MCU-automated adjustable charging curve, enhanced protection features, and the ability to customize the charging curve.
7. Communication options: RS485, CAN.
Charging Curve:
