Product Details:
|
| Material & Color: | Aluminum Alloy & Black/Sliver | Dimension: | 262X136X89 Mm |
|---|---|---|---|
| Weight: | 3 Kg | Input: | 100~240VAC |
| Frequen: | 47~63Hz | Charger Type: | Lead Acid/Lithium/Li-ion Battery |
| Fan: | Temperature + Load Current Double Control Fan Speed | Protection: | Over Current, Over Voltage, Over Temperature, Short Circuit, Reverse Polarity, Shut Off Or Trickle And Anti-reverse Charger. |
| Output Voltage: | 72V | Output Current: | 8A |

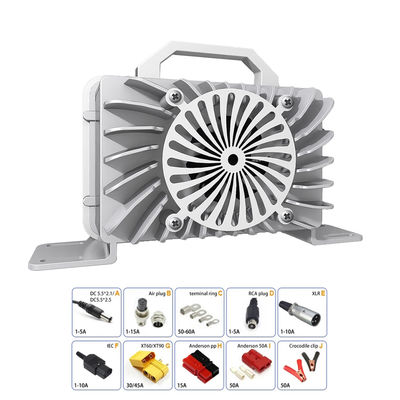

| DC/AC Connector: | Optional Connector | Efficiency: | >=92%(full Load) |
| Warranty: | 18 Months | Operating Temperature: | -4 To 104℉（-20 To 40 ℃） |
| OEM/ODM: | Customized | ||
| High Light: | ODM 72 Volt Charger,72 Volt Charger Lifepo4,87.6V Adjustable Battery Charger |
||

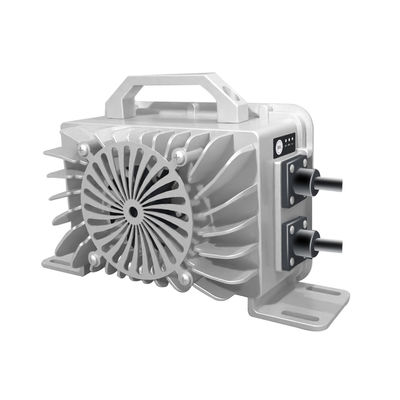

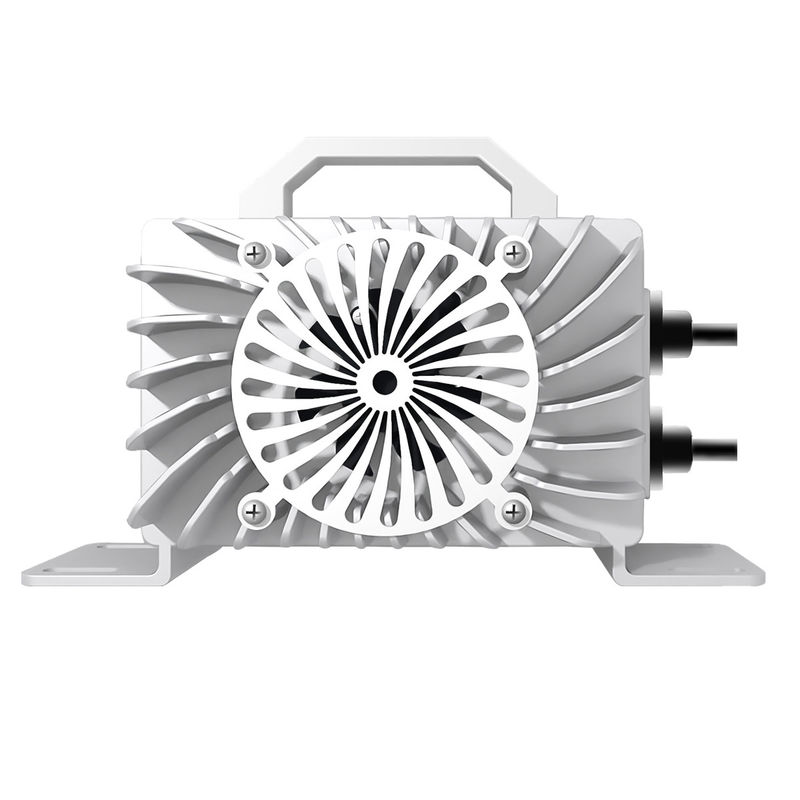

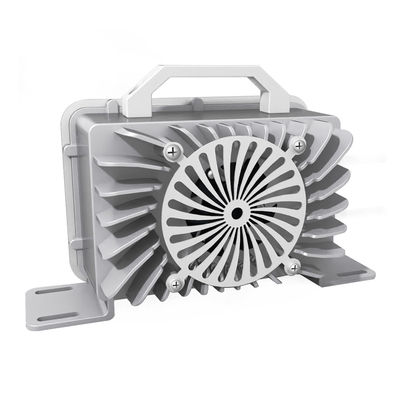

72Volt 8 Amp CAN RS485 Waterproof Charger Adjustable 87.6V Lifepo4 Battery Charger
Product Description:
72Volt 8 Amp CAN RS485 Waterproof Charger Adjustable 87.6V Lifepo4 Battery Charger
The 72Volt 8 Amp CAN RS485 Waterproof Charger is a versatile charging solution designed for both lead-acid (flooded, gel and AGM) and lithium (LiFePO4, LiMn2O4, LiNiCoMn) batteries. Its advanced features provide efficient and reliable charging for a wide range of battery types.
One of its key benefits is the automatic multi-stage charge curve, which helps to prolong battery life. By adjusting the charging parameters at different stages, it ensures optimum charging performance and avoids overcharging or undercharging the battery.
Users can select from three preset charging curves (LFP/NCM/L-A) according to their battery type, providing flexibility and compatibility with different battery chemistries. In addition, the charger includes comprehensive protection features such as over-temperature, over-voltage, over-current, short-circuit and reverse polarity protection to ensure safe and reliable charging.
The charger has intelligent and fully automatic charging capabilities. By gathering information about the battery status, it dynamically switches between charging modes including charge wait, pre-charge, constant current, constant voltage, float charge, equalisation and full charge. This intelligent charging process optimises battery performance and ensures efficient charge cycles.
The charger's LED indicators provide clear visual feedback on current operating status, allowing users to easily monitor the charging process. The charger uses the CCM PFC+LLC half-bridge topology, which provides self-correcting regulation and high power factor with exceptional efficiency. With a microcontroller-based design, it offers enhanced protection and allows for customisable charging curves to meet specific requirements.
For added convenience, the charger offers optional RS485 and CAN communication capabilities. These communication interfaces allow the charger to interact with other devices or systems, providing enhanced monitoring, control and integration options.
In conclusion, the 72Volt 8 Amp CAN RS485 Waterproof Charger is a versatile and intelligent charging solution. Its compatibility with different battery chemistries, multi-stage charge curve, comprehensive protection features and optional communication interfaces make it a reliable and flexible choice for a wide range of applications.
| ITEM | vb1230 | vb2420 | vb3613 | vb4810 | vb6008 | vb7206 | ||
| Output | Output voltage (V) | LFP | 14.6 | 29.2 | 43.8 | 58.4 | 73.0 | 87.6 |
| NCM | 16.8 | 29.4 | 42.0 | 54.6 | 67.2 | 84.0 | ||
| L-A | 14.7 | 29.4 | 44.1 | 58.8 | 73.5 | 88.2 | ||
|
Float voltage(V) (only L-A) |
13.8 | 27.6 | 41.4 | 55.2 | 69 | 82.8 | ||
| Max charging current (A) | 30 | 20 | 13 | 10 | 8 | 6 | ||
| Customizable current (A) | ≤30 | ≤20 | ≤13 | ≤10 | ≤8 | ≤6 | ||
| Max power (W) | 504 | 588 | 573.3 | 588 | 588 | 529.2 | ||
| Rotating lamp current(A) | LFP | 2.4 | 1.6 | 1.04 | 0.8 | 0.64 | 0.48 | |
| NCM | 2.4 | 1.6 | 1.04 | 0.8 | 0.64 | 0.48 | ||
| L-A | 7.5 | 5.0 | 3.25 | 2.5 | 2.0 | 1.5 | ||
| Ripple voltage | ≤2%VOUTMAX | |||||||
| Input | Voltage range | v=W,100V~240VAC；v=H,200~240Vac；v=L,100~120Vac | ||||||
| Frequency range | 47~63Hz | |||||||
| Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | |||||||
| efficiency | ≥92% | |||||||
| Input current(type) | v=W,20A/115VAC,10A/230VAC；v=H,10A/230VAC；v=L,20A/115VAC | |||||||
| Vomit (type) | COLD START≤50A at 230VAC | |||||||
| Leakage current | ＜0.75m A | |||||||
Product Features:
|
Charger Model:
|
UY600S
|
Power:
|
600W
|
|
Housing:
|
Aluminium Alloy
|
Size:
|
262*88.5*161.8mm
|
|
Communication:
|
CAN, RS485
|
Waterproof:
|
IP65
|
|
Efficiency:
|
>=92%
|
Operating Temperature:
|
-20 to 40℃
|
|
Storage Temperature:
|
-40 to +70℃
|
Noise:
|
<=40dB
|
|
Cooling:
|
Temperature and load current-controlled fan
|
||
|
Protection:
|
Over-temperature, over-voltage, over-current, short-circuit,and reverse connection protection. | ||
|
Charger type: |
Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging.
|
||
|
Features:
|
1.Automatic multi-stage charging curve for long battery life
2.Intelligent fully automatic charging: obtains the battery status
and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge) |
||
Charging Curve:
