Product Details:
|
| Material & Color: | Aluminum Alloy & Black/Sliver | Dimension: | 262*136*89 Mm（10.31*5.35*3.5”） |
|---|---|---|---|
| Weight: | 3 Kg(6.61lbs) | Input: | 100~240Vac |
| Frequen: | 47~63Hz | Charger Type: | Lead Acid/Lithium/Li-ion Battery |
| Fan: | Temperature + Load Current Double Control Fan Speed | Protection: | Over Current, Over Voltage, Over Temperature, Short Circuit, Reverse Polarity, Shut Off Or Trickle And Anti-reverse Charger. |
| Output Voltage: | 12V/24V/36V/48V/60V/72V | Output Current: | 30A/20A/12A/10A/8A/6A |

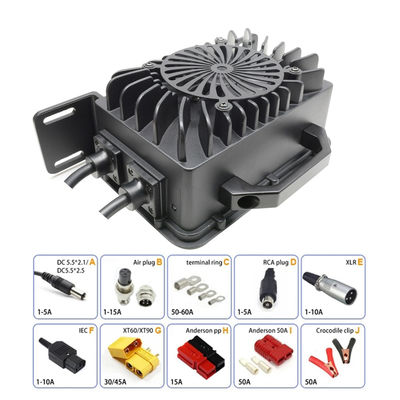

| DC/AC Connector: | Optional Connector | Efficiency: | >=92%(full Load) |
| Warranty: | 18 Months | Operating Temperature: | -4 To 104℉（-20 To 40 ℃） |
| Storage Temperature: | -40 To 104℉（-40 To 70 ℃） | ||
| High Light: | 14.6V Battery Charger Waterproof,14.6V Battery Charger,4s AC To DC Charger |
||

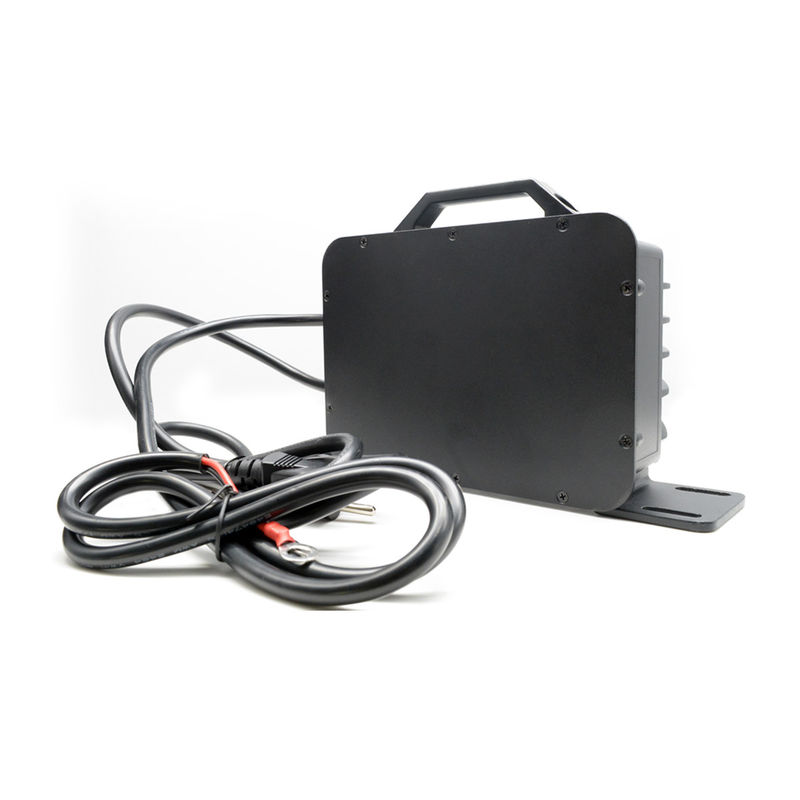

AC To DC 14.6V 8A 3s 4s Lifepo4 Battery Charger For Scooter Drone
Product Description:
In the world of battery charging, one product stands out as the ultimate solution for all your needs. Introducing our versatile and reliable battery charger, designed to cater to a wide range of battery types, including lead-acid (flooded, gel, and AGM) and lithium-ion (LiFePO4, LiMn2O4, and LiNiCoMnO2). Whether you're powering up your electric vehicles, marine equipment, or any other battery-operated devices, our charger is your go-to solution.
One of the key features of our charger is its automatic multi-stage charging curve, carefully designed to extend the lifespan of your batteries. By delivering the right charging profile at each stage, it ensures efficient and optimized charging, preventing overcharging and maximizing battery performance.
To provide even more flexibility, we offer three preset charging curves that can be easily switched by the user. Whether you're using LiFePO4, NCM, or L-A batteries, our charger has got you covered.
Safety is our top priority, which is why our charger comes equipped with multiple protective features. It safeguards against overheating, overvoltage, overcurrent, short circuits, and reverse polarity, ensuring both the charger and your batteries are protected during the charging process.
Thanks to its intelligent automatic charging capability, our charger can assess the battery's condition and adjust the charging mode accordingly. From charge waiting, pre-charge, constant current, constant voltage, float charge, equalization, to full charge, our charger seamlessly adapts to your battery's needs, optimizing the charging process every step of the way.
With the LED indicators, you can easily monitor the current working status of the charger, providing you with real-time information and peace of mind.
Last but not least, our charger boasts an IP65 waterproof rating, making it suitable for various environments and ensuring its durability and longevity.
In conclusion, our battery charger is the ultimate companion for your charging needs. With its compatibility with multiple battery types, intelligent charging modes, advanced protection features, and waterproof design, it delivers power and protection in one compact package. Experience efficient and reliable charging with our exceptional battery charger and enjoy extended battery life for all your devices.
| ITEM | vb1230 | vb2420 | vb3613 | vb4810 | vb6008 | vb7206 | ||
| Output | Output voltage (V) | LFP | 14.6 | 29.2 | 43.8 | 58.4 | 73.0 | 87.6 |
| NCM | 16.8 | 29.4 | 42.0 | 54.6 | 67.2 | 84.0 | ||
| L-A | 14.7 | 29.4 | 44.1 | 58.8 | 73.5 | 88.2 | ||
|
Float voltage(V) (only L-A) |
13.8 | 27.6 | 41.4 | 55.2 | 69 | 82.8 | ||
| Max charging current (A) | 30 | 20 | 13 | 10 | 8 | 6 | ||
| Customizable current (A) | ≤30 | ≤20 | ≤13 | ≤10 | ≤8 | ≤6 | ||
| Max power (W) | 504 | 588 | 573.3 | 588 | 588 | 529.2 | ||
| Rotating lamp current(A) | LFP | 2.4 | 1.6 | 1.04 | 0.8 | 0.64 | 0.48 | |
| NCM | 2.4 | 1.6 | 1.04 | 0.8 | 0.64 | 0.48 | ||
| L-A | 7.5 | 5.0 | 3.25 | 2.5 | 2.0 | 1.5 | ||
| Ripple voltage | ≤2%VOUTMAX | |||||||
| Input | Voltage range | v=W,100V~240VAC；v=H,200~240Vac；v=L,100~120Vac | ||||||
| Frequency range | 47~63Hz | |||||||
| Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | |||||||
| efficiency | ≥92% | |||||||
| Input current(type) | v=W,20A/115VAC,10A/230VAC；v=H,10A/230VAC；v=L,20A/115VAC | |||||||
| Vomit (type) | COLD START≤50A at 230VAC | |||||||
| Leakage current | ＜0.75m A | |||||||
Product Features:
|
Charger Model:
|
UY600S
|
Power:
|
600W
|
|
Housing:
|
Aluminium Alloy
|
Size:
|
262*88.5*161.8mm
|
|
Communication:
|
CAN, RS485
|
Waterproof:
|
IP65
|
|
Efficiency:
|
>=92%
|
Operating Temperature:
|
-20 to 40℃
|
|
Storage Temperature:
|
-40 to +70℃
|
Noise:
|
<=40dB
|
|
Cooling:
|
Temperature and load current-controlled fan
|
||
|
Protection:
|
Over-temperature, over-voltage, over-current, short-circuit,and reverse connection protection. | ||
|
Charger type: |
Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging.
|
||
|
Features:
|
1.Automatic multi-stage charging curve for long battery life
2.Intelligent fully automatic charging: obtains the battery status
and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge) |
||
Charging Curve:
