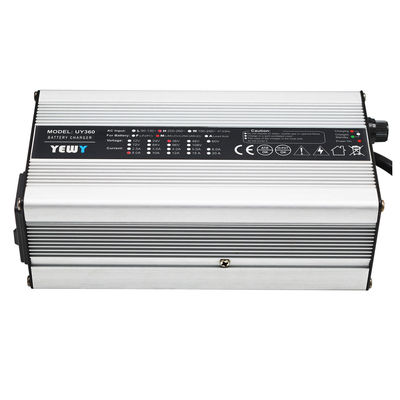

Product Details:
|
| Material & Color: | Aluminum Alloy & Black/Sliver | Dimension: | 172*90*63mm |
|---|---|---|---|
| Weight: | 1.4kg | Input: | 100~120Vac/200~240 Vac |
| Frequen: | 47~63Hz | Charger Type: | Lead Acid/Lithium/Li-ion Battery |
| Fan: | Silent Cooling Fan | Protection: | Over Current, Over Voltage, Over Temperature, Short Circuit, Reverse Polarity, Shut Off Or Trickle And Anti-reverse Charger. |
| Output Voltage: | 84V | Output Current: | 3A |

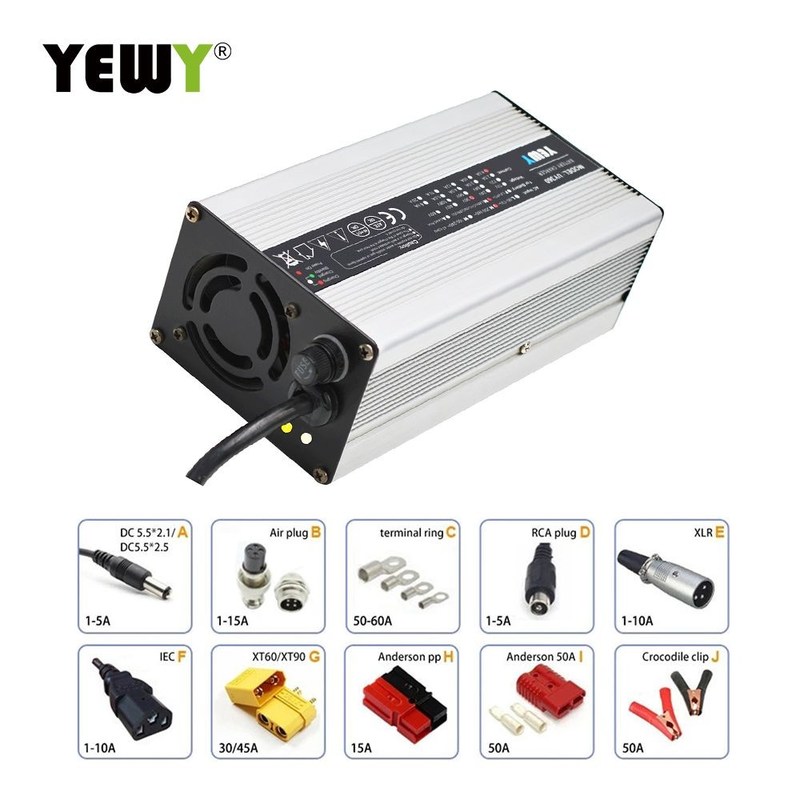

| DC/AC Connector: | Optional Connector | Efficiency: | >=86%(full Load) |
| Warranty: | 18 Months | Operating Temperature: | -4 ~104℉（-20 To 40 ℃） |
| Storage Temperature: | -40~104℉（-40 To 70 ℃） | LED Indicator: | Two-color LED Indicator/LED Display Screen |
| Highlight: | 84V AC Lithium Battery Charger,3A AC Lithium Battery Charger,84V DC Lithium Battery Charger |
||
CC/CV Charging Curve:
The 84V 3A AC/DC Electric Scooter Charger utilizes the CC/CV charging curve, which optimizes the charging process for maximum battery performance. By automatically adjusting the charging parameters according to the battery type, it ensures safe and efficient charging, minimizing the charging time.
Wide Compatibility:
This charger offers excellent adaptability, supporting a range of battery types, including Lithium Ion, LiFePO4, and Lead Acid. The adjustable charging parameters allow you to customize the charging process to match your specific battery type, ensuring compatibility and efficient charging for your electric scooter.
Quiet Fan Cooling and Half-Bridge Circuit Topology:
Equipped with a silent fan and a half-bridge circuit topology, the charger ensures stable performance and effective heat dissipation during the charging process. The quiet fan cooling system prevents overheating, extends the charger's lifespan, and ensures the safety of your batteries.
High Efficiency and Energy Savings:
Featuring a PWM design and a high-efficiency circuit topology, the charger delivers efficient power conversion and energy utilization. This results in reduced energy consumption, lower carbon emissions, and a greener charging experience. The charger's high stability and efficiency guarantee optimal charging performance, keeping your batteries in excellent condition.
Portable Aluminum Alloy Design:

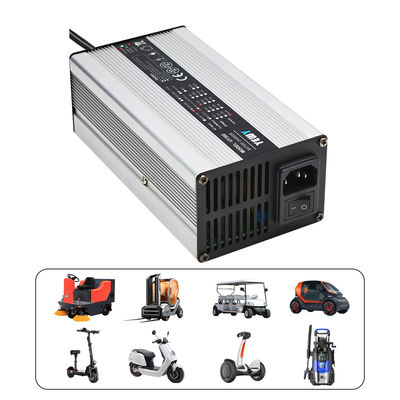

The 84V 3A AC/DC Electric Scooter Charger boasts a lightweight and durable aluminum alloy shell, making it easy to carry and transport. Its compact size and robust construction ensure that you can conveniently charge your electric scooter wherever you go, providing reliable power whenever you need it.
| Type | Specification | DC Voltage(Max) | (CC:A) Charging current |
Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | |||
| UY360 | 12V 20A | 12.6V/16.8V | 14.6V | 14.7V | 20A | 8%CC | 25%CC |
| 24V 12A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 12A | |||
| 36V 8A | 42V/46.2V | 43.8V | 44.1V | 8A | |||
| 48V 6A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 6A | |||
| 60V 5A | 63V/67.2V/71.4V | 73V | 73.5V | 5A | |||
| 72V 4A | 79.8V/84V | 87.6V | 88.2V | 4A | |||
| 84V 3A | 88.2V | 102.2V | 107.8V | 3A | |||
Product Features:
1. AC input: 100-120V /200-240V AC, 47~63Hz
2. Output power:360W
3. Efficiency: >=86%
4. Suitable for all types of lead acid or lithium batteries.According to your battery,we will set up matched charging curve.
5. Circuit: Classic Half-Bridge Topology
6. Intelligent PWM IC control,full automatic transition of CC,CV and Float/Cut off, meet the demands for different Curve
7. LED Indicator Lights to Display Current Operational Status

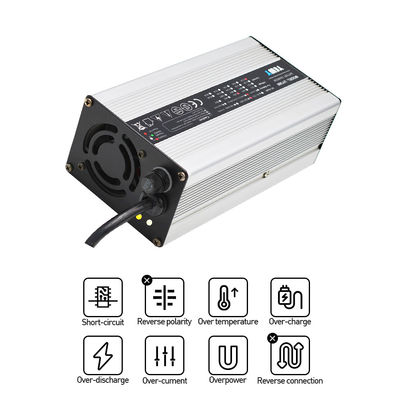

8. Charging Protection Function: Overtemperature/Overvoltage/Overcurrent/Short Circuit/Reverse Polarity Protection
Charging Curve:
