Product Details:
|
| Housing: | Aluminum Alloy | Dimension: | 303x150x90mm |
|---|---|---|---|
| Weight: | 4.8kg | Input: | 100-120Vac/200-240Vac 47~63Hz |
| Output Voltage: | DC 72 Volt | Output Current: | 23 Amp |
| DC/AC Connector: | Optional Connector | Efficiency: | >89% |
| Fan: | Intelligent Temperature Control Fan | Protection: | Output Over Voltage, Output Over Current, Short Circuit, Reverse Polarity, Over-Temperature |
| Charging Mode: | Pre-Charge/CC/CV/Recharge | Color: | Sliver/Black |
| Warranty: | 18 Months | Operating Temperature:: | -20 To 40℃ |
| Storage Temperature:: | -40 To +70℃ | ||
| High Light: | 72 Volt Lithium Ion Battery Charger,23A Lithium Ion Battery Charger,Lifepo4 Lithium Battery Charger Intelligent |
||

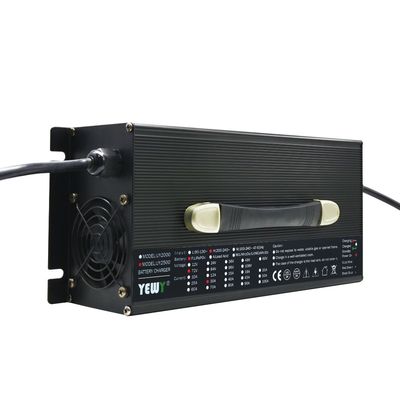

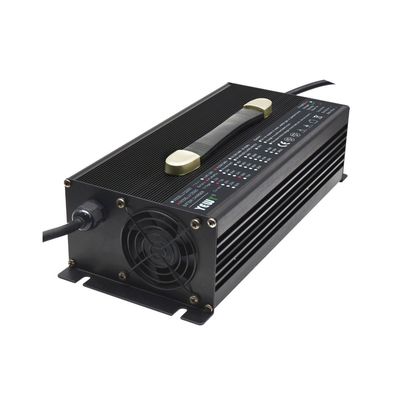

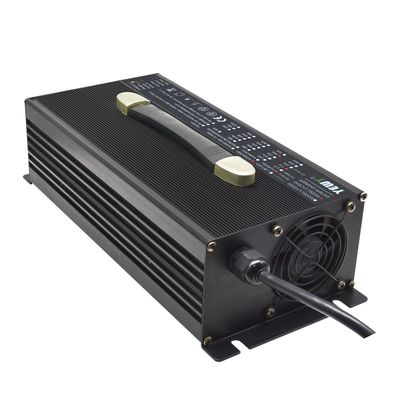

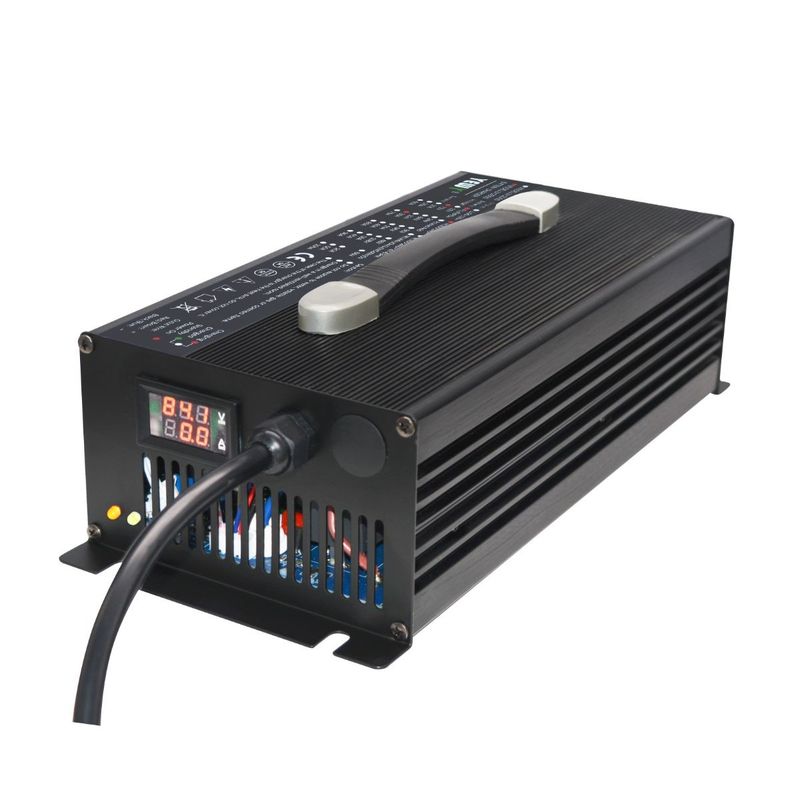

Introducing the 72V 23A fully automatic battery charger, designed for high-power machinery. This charger comes with advanced features including pre-charge mode, trickle mode, and battery protection, ensuring optimal performance and longevity.
The pre-charge mode prepares the battery for charging, allowing for a smooth and efficient charging process. The trickle mode provides a low, constant current to prevent overcharging and maintain the battery's health and longevity.
This charger is customizable, allowing you to adjust parameters to suit different battery types and machinery, ensuring the best charging performance.
Furthermore, it offers optional communication capabilities such as CAN, RS485, and Bluetooth, enabling seamless integration with compatible systems. This allows for remote monitoring, control, and data exchange during the charging process, providing convenience and flexibility.
The 72V 23A fully automatic battery charger is ideal for high-power applications, offering efficient charging, battery protection, and customizable options to meet your specific requirements. Whether for industrial or personal use, this charger is designed to fulfill your everyday charging needs.
| Type | Specification | DC Voltage(Max) | (CC:A) Charging current |
Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | |||
| UY2500 | 12V 100A | 12.6V/16.8V | 14.6V | 14.7V | 100A | 8%CC | 25%CC |
| 24V 65A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 65A | |||
| 36V 45A | 42V/46.2V | 43.8V | 44.1V | 45A | |||
| 48V 38A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 38A | |||
| 60V 30A | 63V/67.2V/71.4V | 73V | 73.5V | 30A | |||
| 72V 23A | 79.8V/84V | 87.6V | 88.2V | 23A | |||
| 84V 20A | 88.2V | 102.2V | 107.8V | 20A | |||
| 96V 18A | 100.8V | 109.5V | 117.6V | 18A | |||
| 108V 16A | 113.4V | 120.45V | 132.3V | 16A | |||
| 120V 15A | 126V | 131.4V | 147V | 15A | |||
1.Self-Balancing Adjustment Capability: Experience optimal charging performance with our charger's unique self-balancing adjustment ability.
2.Charging from 0 Voltage: Unlike others, our charger can initiate charging from 0 voltage, ensuring no power is wasted.
3.MCU Technology and Customization: Equipped with MCU, our charger offers enhanced protection functions and performance. Customize charging curves to match your specific requirements.
4.Optional RS485/CAN/Bluetooth Communication: Seamlessly integrate our charger with compatible communication systems for real-time monitoring and control.
5.Protection: Output Over Voltage Protection, Output Over Current Protection, Short Circuit Protection, Reverse Polarity Protection, Over-Temperature protection.
Upgrade to the charger for unparalleled performance and versatility in charging your devices.
