Product Details:
|
Power: | 672Watts | Input Voltage: | AC90V-260V |
---|---|---|---|
Oem/odm: | Customisation | DC/AC Connector: | Optional |
Indication: | Charging, Fully Charged | Waterproof Range: | IP65 |
Battery Types: | 12v Agm, 12v Lead Acid, 12v Lifepo4 | Charging Modes: | CC/CV |
Highlight: | 12V 10A marine battery charger,4 bank marine battery charger,12V marine battery charger |
Intelligent charging technology: This battery charger uses advanced technology to ensure safe and efficient battery charging. It has a smart circuit that prevents overcharging so as not to damage the battery.
Model | UYMC-4P-W1210 |
Housing | Aluminum alloy |
Voltage range | 90V ~ 260VAC, 47 ~ 63Hz |
Efficiency | ≥ 87% |
Power | 672W |
Dimensions | 303x203.6x63mm |
Waterproof | IP65 |
Operating temperature | -20° ~ 40° |
Storage temperature | -40°~70° |
Cooling | Without fan |
Protection | Short circuit protection/Reverse protection/Over-current protection/Over temperature protection/ Overvoltage protection |
Charging type | Workable for Lifepo4, lithium ion battery, lead acid battery. |
Features | 1. Intelligent fully automatic charging, automatic multi-stage charging curve takes battery status and switches charging mode for long battery life. 2. Adjustable charging battery type -NCM/LFP/L-A. |
All of our chargers are tested at least 4 times before leaving the factory and undergo 100% full power aging and baking tests. In order to reach the final result and give our customers the best quality products and services.
Guangzhou Yunyang Electronic Technology Co., Ltd., founded in 2013, is a national high-tech enterprise which is specializing in production, development and sales of chargers, providing professional supporting charging power supply solutions for new energy battery plants at home and abroad, AGV storage and transportation, agricultural UAVs, AI robots, etc. Yunyang has a dozens-member R&D team, thousands of square meters manufacturing base, 25 product patents, and we have obtained the CE,UL,CB,GS,FCC,KC,SAA C-TUV-US etc certificates.
Q: Are you an electronics factory
A: Yes, we are a factory which can provice competitive prices,direct technicall instruction,customized production and professional after-sales service with more than 15 years of experience in export trade.
Q: What special services can you provide?
A: Product customization (current/voltage, electrical circuit and function), appearance, label, package box and other packaging design and shipping agency.
Q: Can I ask for a sample order?
A: Absolutely! we can provide an initial sample. But our samples are not free. We need to charge for the samples.
Q: What is the payment term?
A: Most of them are 30% T/T prepaid, and the rest need to be paid before shipment.

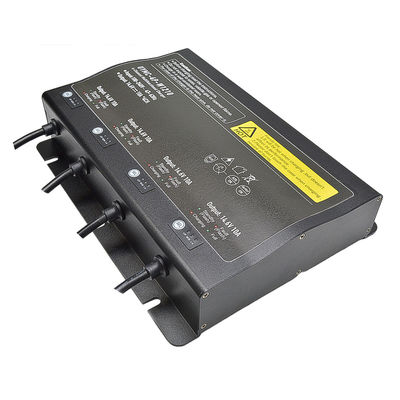

4-channel multifunctional battery charger
1. LLC+ active PFC.
2.Support wide voltage (90~260Vac) input, high efficiency.
3.Charge 2 groups of batteries at the same time.
4.Charger with button function according to the button switch to adapt to different types of batteries.(LFP/NCM/L-A)
Better fit than traditional chargers.
