Product Details:
|
| Input Voltage: | 90V-260V | Battery Type: | Lithium-ion/LiFePO4/Lead Acid |
|---|---|---|---|
| Power: | 2500Watts | Model: | UY2500 |
| Charging Time: | 5-6 Hours | Material: | Aluminum Alloy |
| Charging Current: | 100A, 65A, 45A, 38A, 30A, 23A, Etc. | Weight: | 5KG |
| Highlight: | 2500Watts Bluetooth Battery Charger,Black Bluetooth Battery Charger,Aluminum Alloy Bluetooth Battery Charger |
||
Advantage
(1) With self-compensating adjustment capability.
(2) Can be charged from 0 voltage.
(3) With MCUD, it can realize more perfect protection function and various charging curve customization. Optional configuration RS485/CAN communication function.
96V18A 108V16A 120V15A
|

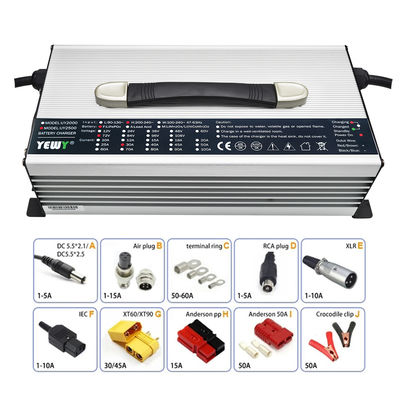

UY2500 model battery charger
|
||||||
|
|
DC voltage (Max)
|
(CC:A)
Charge current
|
Light return(A)
|
|||
|
Li-ion
|
Lifepo4
|
Lead acid
|
Lithium
|
Lead Acid
|
||
|
12V 100A
|
12.6V/16.8V
|
14.6V
|
14.7V
|
100A
|
8% CC
|
25% CC
|
|
24V 65A
|
25.2V/29.4V/33.6V
|
29.2V
|
29.4V
|
65A
|
||
|
36V 45A
|
42V/46.2V
|
43.8V
|
44.1V
|
45A
|
||
|
48V 38A
|
50.4V/54.6V/58.8V
|
54.75V/58.4V
|
58.8V
|
38A
|
||
|
60V 30A
|
63V/67.2V/71.4V
|
73V
|
73.5V
|
30A
|
||
|
72V 23A
|
79.8V/84V
|
87.6V
|
88.2V
|
23A
|
||
|
84V 20A
|
88.2V
|
102.2V
|
107.8V
|
20A
|
||
|
96V 18A
|
100.8V
|
109.5V
|
117.6V
|
18A
|
||
|
108V 16A
|
113.4V
|
120.45V
|
132.3V
|
16A 16A
|
||
|
120V 15A
|
126V
|
131.4V
|
147V
|
15A
|
||
Charging mode 6 scenes Pre-charge, CC mode, CV mode, battery full, charging
Charging mode 5 scenes Pre-charge, CC mode, CV mode, battery full and float charge
YEWY's UY2500 Bluetooth Battery Charger is a perfect choice for those looking for a portable battery charger. This product is manufactured in Guangzhou, China and is certified by CE and ROHS. It has no minimum order quantity and comes in a 440*420*200 packaging. Delivery time is 5-7 working days and payment terms are T/T. The supply ability is 5000/pcs. It has a charging time of 5-6 hours and the charging current is 100A, 65A, 45A, 38A, 30A, 23A, etc. The output voltage is 12V, 24V, 36V, 48V, 60V, 72V, etc. and the power is 2500Watts.
YEWY UY2500 Bluetooth Battery Charger is the perfect choice for those looking for a powerful and portable battery charger. It offers great value, with CE and ROHS certifications and a minimum order quantity of none. This product is delivered within 5-7 working days and is available in a 440*420*200 packaging. It offers a supply ability of 5000/pcs and a charging time of 5-6 hours. The charging current is 100A, 65A, 45A, 38A, 30A, 23A, etc. and the output voltage is 12V, 24V, 36V, 48V, 60V, 72V, etc. It also offers a power of 2500Watts.
The Bluetooth Battery Charger will be securely packaged in a box and shipped via a reputable shipping company. Boxes must be labeled with the product name and handling instructions.
In addition, we recommend that you use bubble wrap, foam, or other protective packaging materials to cushion and protect the box and its contents. We will also include instructions on how to use and maintain the product.
Q2: Why choose us?
A: ●2000㎡ self-owned factory, 8 production lines, monthly production can load 5 40HQ containers.
●High-tech enterprise, MES intelligent manage.
●FCC,UL,KC,CB, 20 kinds of patent technology certificates.
● Up to 30 series of products can meet the needs of diffferent products and applications.
●9+ members R&D team with 20 years experience, provide customer the best charging power supply solution.
●Sufficient material inventory, can meet the short production time.
● With 18 months warranty.
Battery charger parameters
1. Double-sidedFR-4 PCB
2.SAMXON electrolytic capacitors
3. Pure copper transformers
4. Circuit topology: CCM PFC + classical full bridge topology.
