Product Details:
|
| Dimensions: | 222x134x70 Mms | Communication: | CAN, RS485, Bluetooth |
|---|---|---|---|
| Output Voltage: | 12V | Weight: | 2.6 KG |
| Display Mode: | LED/LCD Display | Warranty: | 18 Months |
| Power: | 900W | Input Voltage: | 100Vac-120Vac/ 200Vac-240Vac, 47~63Hz |
| Highlight: | RS485 Smart Bluetooth Battery Charger,Auto Lead Acid Bluetooth Battery Charger |
||

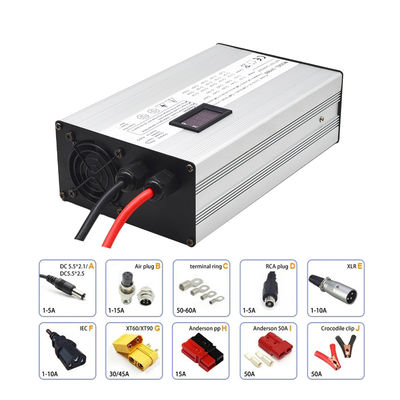

Witness the ultimate companion for rejuvenating your batteries! Embark on a voyage into the realm of battery reinvigoration with the UY900. This juggernaut introduces a new echelon of efficiency to your battery revitalization endeavor, orchestrating a symphony of charging intricacies that redefine battery longevity. Through its automated multi-phase charging trajectories, meticulously crafted to extend the lifespan of your energy cells, the UY900 establishes an unprecedented paradigm of endurance. Regardless of whether your batteries are of the lead-acid lineage or the lithium lineage, the UY900 offers an unyielding shield of protection, armed with an ensemble of safeguards against temperature surges, voltage excesses, current avalanches, momentary disruptions, and the enigma of reverse polarity.
Stay enlightened with the presence of LED indicators that metamorphose into real-time narrators of the charging odyssey. Moreover, the UY900's revelations of voltage and current, unveiled through its numerical dioramas, bestow upon you an instantaneous communion with the ever-changing tides of the charging epoch. The symphony of efficiency and stability emanates from the UY900's architecture—a serenade orchestrated by the half-bridge circuit topology, an embodiment of the energy utilization zenith.
To infuse an additional layer of invincibility, the UY900 adorns itself with a chassis hewn from the heart of aluminum alloy, its contours embodying the essence of resilience, adorned with a handle that not only signifies portability but also serves as a testament to the fusion of form and function. The narrative of brilliance continues with an intellect-driven fan that dances in tandem with the temperature's mercurial inclinations, enhancing the overall opus of performance. The reins of authority are placed in your hands as the UY900 extends the privilege of choice through the portals of CAN and RS485 communication interfaces. The realm of features awaits your command, bereft of any inconveniences that might linger.
Elevate your charging escapades to a sphere hitherto uncharted with the UY900—an irrefutable testament to ingenuity, aesthetics sculpted from the essence of robustness, and a tour de force of execution par excellence. It beckons you to embrace a revolution in your charging voyage, beckons you to seize the narrative and imprint it with your very essence. Today, tomorrow, and beyond, let the UY900 be your guiding star through the cosmos of electrifying experiences!
| Charger Model: | UY900 |
| Housing: | Aluminium Alloy |
| Max Power: | 900W |
| Dimensions: | 222x134x70mm |
| AC Input: | 100-120Vac/200-240Vac, 47~63 Hz |
| Communication: | CAN, RS485,Bluetooth |
| Max Efficiency: | >=88% |
| Operating Temperature: | -20 to 40℃ |
| Storage Temperature: | -40 to 70℃ |
| Noise: | <=40dB |
| Cooling: | Active cooling with fan |
| Protection: | Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge |
| Charger type: | Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging. |
| Features: | Intelligent fully automatic charging, Automatic multi-stage charging curve, and obtains the battery status and switches the charging mode. |
| ITEM | vb1240 | vb2425 | vb3620 | vb4815 | vb6012 | vb7210 | vb8408 | ||
| Output | Output Voltage(V) | LFP | 14.6 | 29.2 | 43.8 | 58.4 | 73 | 87.6 | 102.2 |
| NCM | 16.8 | 29.4 | 42 | 54.6 | 67.2 | 84 | 105 | ||
| L-A | 14.7 | 29.4 | 44.1 | 58.8 | 73.5 | 88.2 | 102.9 | ||
| Float voltage | 13.8 | 27.6 | 41.4 | 55.2 | 69 | 82.8 | 96.6 | ||
| Voltage Float (V) | ±0.3 | ||||||||
| Max charge current(A) | 40 | 25 | 20 | 15 | 12 | 10 | 8 | ||
| Customisable current(A) | ≤40 | ≤25 | ≤20 | ≤15 | ≤12 | ≤10 | ≤8 | ||
| Maximum power (W) | 672 | 735 | 882 | 882 | 882 | 882 | 840 | ||
| Rotating lamp current(A) | LFP | 3.2 | 2 | 1.6 | 1.2 | 0.96 | 0.8 | 0.64 | |
| NCM | 3.2 | 2 | 1.6 | 1.2 | 0.96 | 0.8 | 0.64 | ||
| L-A | 10 | 6.25 | 5 | 3.75 | 3 | 2.5 | 2 | ||
| Ripple voltage | ≤2%VOUTMAX | ||||||||
| Input | Voltage range | v=W:100V~240VAC；v=H:200~240Vac；v=L:100~120Vac. | |||||||
| Frequency range | 47~63Hz | ||||||||
| Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | ||||||||
| Efficiency | ≥82% | ≥85% | ≥89% | ||||||
| Input current(type) | v=W:13A/115Vac,6A/230Vac；v=H:6A/230Vac；v=L:13A/115Vac. | ||||||||
| Vomit (type) | COLD START≤50A at 230VAC | ||||||||
| Leakage Current | ＜0.75m A | ||||||||
Automotive: Charging for vehicles, ensuring reliable starts.
RVs: Maintains RV batteries during storage.
Power Sports: Charges batteries for ATVs, jet skis.
Electric Vehicles: Extends battery life for EVs.
Industrial: Powers batteries in machinery, reducing downtime.
Emergency Backup: Charges backup batteries for outages.
Home Use: Charges tools, equipment at home.
Renewable Energy: Used in solar, wind setups.
Commercial Services: For battery service centers.
Off-Grid Living: Supports charging in remote locations.
