Product Details:
|
| Housing Material & Color:: | Aluminum Alloy & Black/sliver | Dimension: | 11.93x5.91x3.54" (in Inch) |
|---|---|---|---|
| Weight: | 9.37 Lbs | Frequency: | 47-63Hz |
| Input Voltage: | 100~120 Vac/200~240 Vac | Charger Type: | Lead Acid/Lifepo4/Li-ion Battery |
| Fan: | Intelligent Cooling Fan Controlled By Temperature And Load Current | Protection: | Output Over Voltage, Output Over Current, Short Circuit, Reverse Polarity,Over-Temperature |
| Output Voltage: | DC 36Volt | Output Current: | 40Amp |
| DC/AC Connector: | Optional Connector | Communication: | CAN, RS485, Bluetooth |
| Efficiency: | 89% | Warranty: | 18 Months |
| Operating Temperature: | -20 To 40 ℃ | Storage Temperature: | -40 To 70 ℃ |
| Highlight: | 2kw High Power Chargers,40A High Power Chargers,36V Battery Charger Intelligent |
||
Tailored Charging Curves: We understand the importance of optimizing battery performance. Our charger is equipped with the ability to configure suitable charging curves specifically tailored to your battery, ensuring optimal charging efficiency and extending battery lifespan.
Multi-Stage Charging: The charger employs an automatic multi-stage charging process, designed to enhance battery longevity. By transitioning through different charging stages, including pre-charge, constant current, constant voltage, and float charge, it ensures a comprehensive and optimized charging experience.
Current-Mode Half-Bridge Topology: Utilizing a current-mode half-bridge circuit topology, the charger provides stable and efficient power conversion. This design enables high power delivery while maintaining energy efficiency, reducing wasted energy and minimizing heat generation.
MCU Control and Pulse Width Modulation (PFM) Technology: With MCU control and PFM technology, the charger achieves high charging efficiency, exceptional stability, and low carbon footprint. It adapts to different battery charging curve requirements, delivering precise and reliable charging performance.

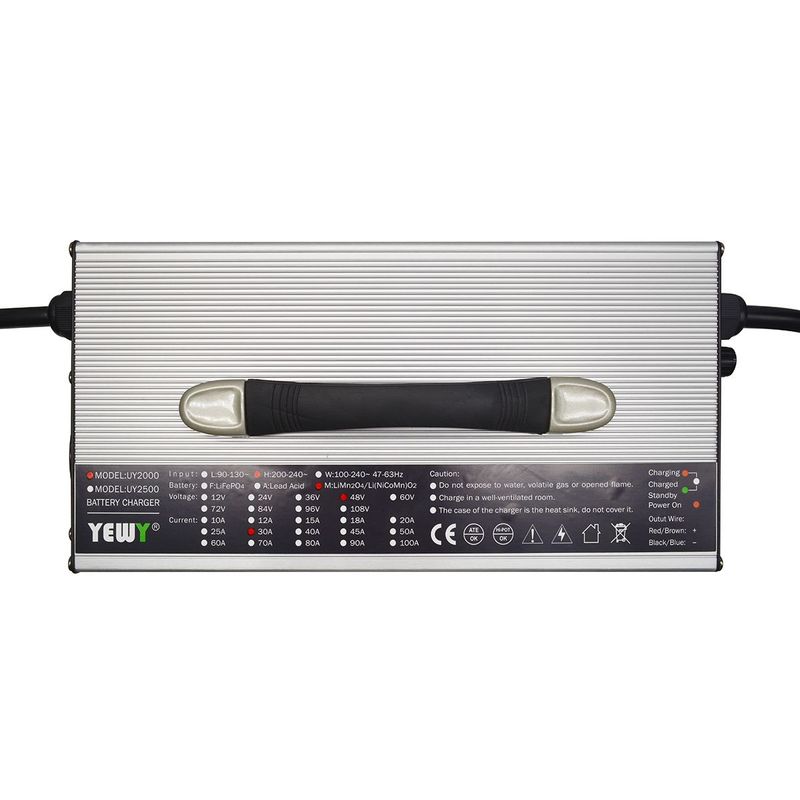

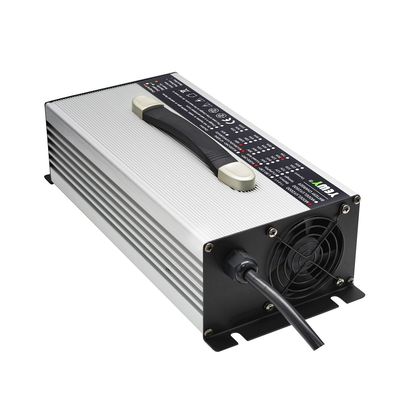

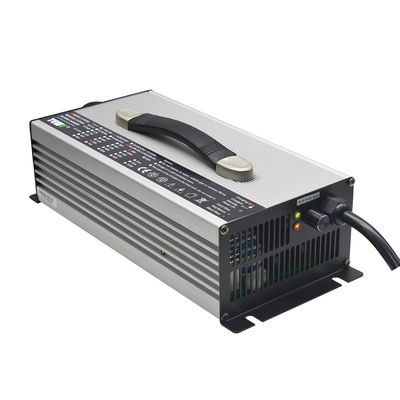

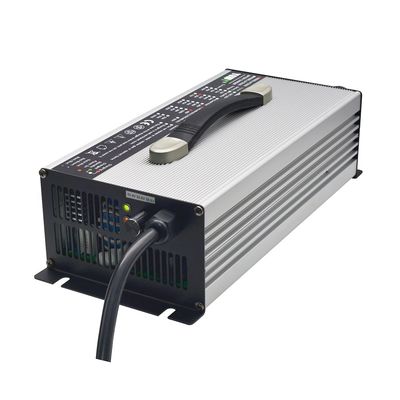

Robust and Portable: Housed in an aluminum alloy casing, the charger offers a blend of durability and aesthetics. Its sturdy construction ensures long-lasting performance, while the portable design, complemented by a convenient handle, allows for easy transportation. The intelligent temperature-controlled cooling fan enhances overall efficiency.
Communication Capabilities: The charger supports multiple communication protocols, including CAN, RS485, and Bluetooth, enabling seamless integration with various systems and providing real-time monitoring and control options.
| Type | Specification | DC Voltage(Max) | (CC:A) Charging current |
Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | |||
| UY2000 | 12V 90A | 12.6V/16.8V | 14.6V | 14.7V | 90A | 8%CC | 25%CC |
| 24V 60A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 60A | |||
| 36V 40A | 42V/46.2V | 43.8V | 44.1V | 40A | |||
| 48V 30A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 30A | |||
| 60V 25A | 63V/67.2V/71.4V | 73V | 73.5V | 25A | |||
| 72V 20A | 79.8V/84V | 87.6V | 88.2V | 20A | |||
| 84V 18A | 88.2V | 102.2V | 107.8V | 18A | |||
| 96V 16A | 100.8V | 109.5V | 117.6V | 16A | |||
| 108V 10A | 113.4V | 120.45V | 132.3V | 10A | |||
| 120V 9A | 126V | 131.4V | 147V | 9A | |||
Product Features
1.CCM PFC + classic full-bridge configuration.
(1) Self-balancing capability.
(2) Enable from 0 voltage starting charging.
(3)With MCU, Optional configuration of RS485, CAN or Bluetooth communication function.
2.LED instrument display, indicating both voltage and current.
3.Intelligent cooling Fan controlled by temperature and load current.
4..Protection features: Overcurrent, Overvoltage, Overtemperature, Short Circuit, Reverse Polarity, Shutdown or Trickle Charge, Anti-reverse charging.
