Product Details:
|
| Material: | Aluminum Alloy | Dimension: | 263x150x90mm |
|---|---|---|---|
| Weight: | 3.75kg | Input: | 100~120Vac/200~240 Vac |
| Frequen: | 47~63Hz | Battery Type: | Lead Acid/Lithium/Li-ion Battery |
| Fan: | Intelligent Cooling Fan Controlled By Temperature And Load Current | Protection: | Output Over Voltage, Output Over Current, Short Circuit, Reverse Polarity, Over-Temperature |
| Output Voltage: | 12V | Output Current: | 50A/40A |
| DC/AC Plug: | Optional Connector | Communication: | CAN,RS485,Bluetooth |
| Efficiency: | >=89%(full Load) | Warranty: | 18 Months |
| Operating Temperature: | -20To40 ℃ | Storage Temperature: | -40To70 ℃ |
| Highlight: | 50A Bluetooth Battery Charger,Bluetooth Battery Charger Forklift,40A Single Phase Battery Charger |
||

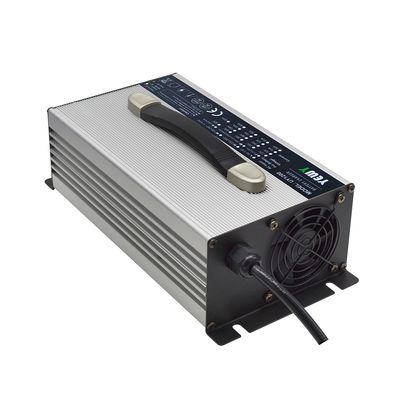

When it comes to efficiently charging your forklift batteries, having a reliable and robust charger is crucial. The Single Phase 12V Forklift Battery Charger is designed to meet the charging needs of forklifts, delivering optimal performance and longevity.
Multi-Stage Charging Curve:
To extend the lifespan of your forklift batteries, this charger employs an automatic multi-stage charging curve. By utilizing multiple charging stages, the charger optimizes the charging process, allowing for complete and controlled charging. This feature helps to maintain the battery's health and performance over time.
Charging Protection Features:
Safety is of utmost importance when charging batteries, and this charger is equipped with essential charging protection features. It includes safeguards against over-temperature, over-voltage, over-current, short circuits, and reverse polarity. These protections ensure safe and reliable charging, preventing potential damage to both the charger and the battery.
Current-Mode Half-Bridge Topology:
To ensure stable and efficient charging, the charger adopts a current-mode half-bridge topology in its circuit design. This topology allows for optimized power transfer and energy efficiency, ensuring that the charging process is both effective and economical.
With the Single Phase 12V Forklift Battery Charger, you can power up your forklift with efficiency and confidence. Its voltage compatibility, multi-stage charging curve, charging protection features, LED status indicators, current-mode half-bridge topology, MCU control, PFM technology, voltage and current display, and durable aluminum alloy casing make it an ideal charging solution for forklift batteries. Upgrade your charging process today and experience reliable, efficient, and safe charging for your forklift operations.
| Type | Specification | DC Voltage(Max) | (CC:A) Charging current |
Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | |||
| UY1200 | 12V 50A | 12.6V/16.8V | 14.6V | 14.7V | 50A | 8%CC | 25%CC |
| 24V 35A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 35A | |||
| 36V 25A | 42V/46.2V | 43.8V | 44.1V | 25A | |||
| 48V 20A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 20A | |||
| 60V 15A | 63V/67.2V/71.4V | 73V | 73.5V | 15A | |||
| 72V 12A | 79.8V/84V | 87.6V | 88.2V | 12A | |||
| 84V 11A | 88.2V | 102.2V | 107.8V | 11A | |||
| 96V 10A | 100.8V | 109.5V | 117.6V | 10A | |||
| 108V 8A | 113.4V | 120.45V | 132.3V | 8A | |||
| 120V 6A | 126V | 131.4V | 147V | 6A | |||
Product Features
1. AC input: 100-120V /200-240V AC, 47 to 63Hz
2. Output power:1200W
3. Equipped with an OLED display, it provides real-time visualization of the charging status.
4. Efficiency: >=89%
5. Utilizing a full-bridge topology, it is better suited for high-power applications and incorporates MCU control.
(1).It achieves dual fault detection and protection capabilities through software and hardware integration.
(2).It also enables flexible and convenient customization to meet individual requirements.
6. Communication options: RS485, CAN, and Bluetooth
7. Protections: Overvoltage Protection, Overcurrent Protection, Short Circuit Protection, Reverse Polarity Protection,Temperature Protection
