Product Details:
|
| Material & Color: | Aluminum Alloy & Black/Sliver | Dimension: | 262*136*89 Mm（10.31*5.35*3.5”） |
|---|---|---|---|
| Weight: | 3 Kg(6.61lbs) | Input: | 100~240Vac |
| Frequen: | 47~63Hz | Charger Type: | Lead Acid/Lithium/Li-ion Battery |
| Fan: | Temperature + Load Current Double Control Fan Speed | Protection: | Over Current, Over Voltage, Over Temperature, Short Circuit, Reverse Polarity, Shut Off Or Trickle And Anti-reverse Charger. |
| Output Voltage: | 36 Volt | Output Current: | 13A |
| DC/AC Connector: | Optional Connector | Efficiency: | >=92% |
| Warranty: | 18 Months | Operating Temperature: | -20 To 40 ℃ |
| Storage Temperature: | -40 To 70 ℃ | ||
| Highlight: | 36V Waterproof Battery Charger,13A Waterproof Battery Charger,48v Battery Charger Lifepo4 |
||

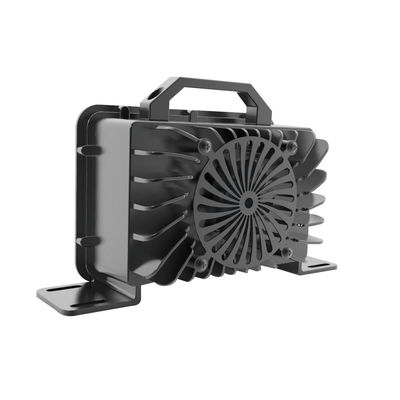

36v & 48v Golf Car 36v 13a Waterproof Lifepo4 Charger
Product Description:
First and foremost, our charger is incredibly versatile, compatible with multiple battery types. Whether it's lead-acid batteries (flooded, gel, and absorbed glass mat) or lithium batteries (lithium iron, lithium manganese, lithium ternary), it can easily handle the charging process. Its multi-stage charging curve design helps extend battery life while ensuring safe and reliable charging.
To meet users' personalized needs, we have pre-set three charging curves (LFP/NCM/L-A) in the charger, allowing users to switch according to different battery types and fully utilize their battery's performance. Additionally, the charger incorporates comprehensive protection functions, including temperature, voltage, current, short-circuit, and reverse polarity protection, ensuring a safe and reliable charging process for your peace of mind.
Intelligent full-automatic charging is a highlight of our charger. It intelligently detects the battery's status and switches to the corresponding charging mode, including charging standby, pre-charge, constant current, constant voltage, float charge, replenishment, and full charge. With this feature, you can confidently leave the battery in the charger's hands as it provides the most suitable charging mode based on the battery's actual needs, ensuring efficient charging.
The LED indicator lights clearly display the current working status, allowing you to see at a glance. The charger adopts CCM PFC+LLC half-bridge topology circuit with self-balancing regulation capability. Its high power factor and high-efficiency design make the charging process more energy-saving and efficient. Moreover, utilizing microcontroller technology enhances the protection effect, and the charging curve can be customized according to your requirements.
Optional RS485 and CAN communication functions make the charger even smarter. You can easily communicate with other devices, achieving a higher level of control and monitoring. It fully caters to your personalized needs and system integration requirements.
Choose our 36V and 48V Golf Cart 36V 13A Waterproof Lithium Iron Battery Charger to keep your golf cart in a high-energy state. Whether on the golf course or training grounds, our charger will be your reliable energy companion.
| ITEM | vb1230 | vb2420 | vb3613 | vb4810 | vb6008 | vb7206 | ||
| Output | Output voltage (V) | LFP | 14.6 | 29.2 | 43.8 | 58.4 | 73.0 | 87.6 |
| NCM | 16.8 | 29.4 | 42.0 | 54.6 | 67.2 | 84.0 | ||
| L-A | 14.7 | 29.4 | 44.1 | 58.8 | 73.5 | 88.2 | ||
|
Float voltage(V) (only L-A) |
13.8 | 27.6 | 41.4 | 55.2 | 69 | 82.8 | ||
| Max charging current (A) | 30 | 20 | 13 | 10 | 8 | 6 | ||
| Customizable current (A) | ≤30 | ≤20 | ≤13 | ≤10 | ≤8 | ≤6 | ||
| Max power (W) | 504 | 588 | 573.3 | 588 | 588 | 529.2 | ||
| Rotating lamp current(A) | LFP | 2.4 | 1.6 | 1.04 | 0.8 | 0.64 | 0.48 | |
| NCM | 2.4 | 1.6 | 1.04 | 0.8 | 0.64 | 0.48 | ||
| L-A | 7.5 | 5.0 | 3.25 | 2.5 | 2.0 | 1.5 | ||
| Ripple voltage | ≤2%VOUTMAX | |||||||
| Input | Voltage range | v=W,100V~240VAC；v=H,200~240Vac；v=L,100~120Vac | ||||||
| Frequency range | 47~63Hz | |||||||
| Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | |||||||
| efficiency | ≥92% | |||||||
| Input current(type) | v=W,20A/115VAC,10A/230VAC；v=H,10A/230VAC；v=L,20A/115VAC | |||||||
| Vomit (type) | COLD START≤50A at 230VAC | |||||||
| Leakage current | ＜0.75m A | |||||||
Product Features:
|
Charger Model:
|
UY600S
|
Power:
|
600W
|
|
Housing:
|
Aluminium Alloy
|
Size:
|
262*88.5*161.8mm
|
|
Communication:
|
CAN, RS485
|
Waterproof:
|
IP65
|
|
Efficiency:
|
>=92%
|
Operating Temperature:
|
-20 to 40℃
|
|
Storage Temperature:
|
-40 to +70℃
|
Noise:
|
<=40dB
|
|
Cooling:
|
Temperature and load current-controlled fan
|
||
|
Protection:
|
Over-temperature, over-voltage, over-current, short-circuit,and reverse connection protection. | ||
|
Charger type: |
Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging.
|
||
|
Features:
|
1.Automatic multi-stage charging curve for long battery life
2.Intelligent fully automatic charging: obtains the battery status
and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge) |
||
Charging Curve:
