Product Details:
|
| Material & Color:: | Aluminum Alloy & Sliver/Black | Dimension: | 303x150x90mm |
|---|---|---|---|
| Weight: | 4.25 Kg | Input Voltage Range: | 100~120Vac/200~240 Vac |
| Charger Type: | Lead Acid/Lithium/Li-ion Battery | Frequency: | 47~63Hz |
| Output Voltage: | 48Volt | Output Current: | 30Amp |
| DC/AC Connector: | Optional Connector | Communication: | CAN/RS485/Bluetooth |
| MAX Efficiency: | >89% | Protection: | Output Over Voltage, Output Over Current, Short Circuit, Reverse Polarity, Over-Temperature |
| Warranty: | 18 Months | Operating Temperature: | -20 To 40℃ |
| Storage Temperature: | -40 To +70℃ | ||
| Highlight: | Automatic 48v Golf Cart Charger,48v Golf Cart Charger,30a Lithium Battery Charger |
||

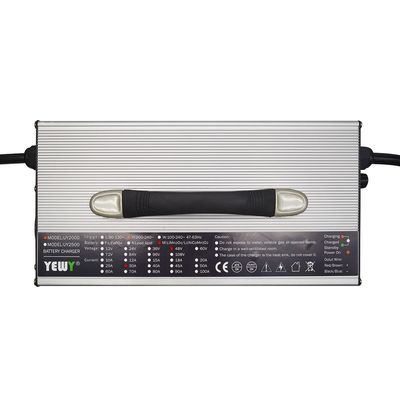

Introducing the advanced 48V 30A Automatic Golf Cart LiFePO4/Lithium Ion Battery Charger. Designed for both lead acid and lithium batteries, this charger offers a host of features to optimize your charging experience.
Benefit from the automatic multi-stage charging curve, extending battery lifespan for maximum performance. The charger's current-type half-bridge circuit topology ensures stability, high efficiency, and energy savings.
Experience precise and safe charging with MCU control and pulse frequency modulation (PFM) technology, meeting the charging curve requirements of different battery types. The intuitive voltage and current display allows for easy monitoring of the charging process.
Durability meets portability with the charger's aluminum alloy casing. Its sleek design, complete with a convenient handle, ensures easy transport. The intelligent temperature-controlled fan guarantees efficient cooling.
Stay connected and in control with communication options including CAN, RS485, and Bluetooth interfaces, enabling advanced monitoring and control capabilities. LED indicators provide real-time status updates during the charging process.
Safety is a priority, and this charger is equipped with comprehensive protection features including safeguards against overheating, overvoltage, overcurrent, short circuits, and reverse polarity.
Elevate your golf cart battery charging experience with the 48V 30A Automatic LiFePO4/Lithium Ion Battery Charger. Unlock the full potential of your batteries with its exceptional charging performance and reliable features.
| Type | Specification | DC Voltage | Charging Current | Light Turning(A) | |||
| Li-ion | Lifepo4 | Lead-acid | Lithium | Lead-acid | |||
|
UY2000
|
12V90A | 12.6V/16.8V | 14.6V | 14.7V | 90A | 8% | 25% |
| 24V60A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 60A | 8% | 25% | |
| 36V40A | 42V/46.2V | 58.42V | 44.1V | 40A | 8% | 25% | |
| 48V30A | 50.4V/54.6V/58.8V | 73V | 58.8V | 30A | 8% | 25% | |
| 60V25A | 63V/67.2V/71.4V | 87.6V | 73.5V | 25A | 8% | 25% | |
| 72V20A | 79.8V/84V | 87.6V | 88.2V | 20A | 8% | 25% | |
| 84V18A | 88.2V/92.4V | 102.2V | 102.9V | 18A | 8% | 25% | |
Product Features
1.Power: 2000W
2.Economic design with an aluminum case for easy handling.
3.Circuit topology: CCM PFC + classic full-bridge configuration.
4.Optional functions available: MCU for enhanced protection, RS485, CAN, Bluetooth communication, etc.
5.CPU and intelligent PWM IC control for automatic transition between CC, CV, and Float/Cut-off modes, catering to different curve requirements.
6.Intelligent cooling function controlled by temperature and load current.
7.Protection features: Overcurrent, Overvoltage, Overtemperature, Short Circuit, Reverse Polarity, Shutdown or Trickle Charge, Anti-reverse charging.
