Product Details:
|
Material & Color:: | Aluminum Alloy & Sliver/Black | Dimension: | 303x150x90mm |
---|---|---|---|
Weight: | 4.25 Kg | Input Voltage Range: | 100~120Vac/200~240 Vac |
Frequency: | 47~65Hz | Output Voltage: | 72volt |
Output Current: | 20amp | DC/AC Connector: | Optional Connector |
Communication: | CAN/RS485/Bluetooth | Efficiency: | >89% |
Fan: | Intelligent Temperature Control Fan | Protection: | Output Over Voltage, Output Over Current, Short Circuit, Reverse Polarity, Over-Temperature |
Warranty: | 18 Months | Operating Temperature: | -20 To +40℃ |
Storage Temperature: | -40 To +70℃ | ||
High Light: | Gel Lead Acid Battery Charger,72 Volt Lead Acid Battery Charger,72 Volt Battery Charger |

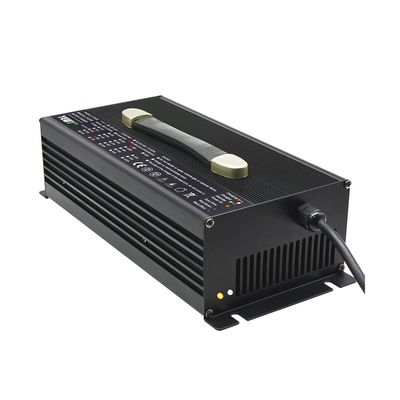

Introducing the versatile and advanced 72 Volt 88.2V 72V 20A Gel Lead Acid Battery Charger. It offers a range of standout features that will enhance your charging experience.
Benefit from the automatic multi-stage charging curve, prolonging battery life and ensuring optimal performance. The charger's current-type half-bridge circuit topology provides stability, high efficiency, and energy savings.
Enjoy the convenience of MCU control and pulse frequency modulation (PFM) technology, delivering precise and safe charging tailored to different battery types. The voltage and current display allows for easy monitoring of the charging process.
The charger's durable aluminum alloy casing ensures longevity, while the portable design with a convenient handle allows for easy transport. The intelligent temperature-controlled fan guarantees efficient cooling.

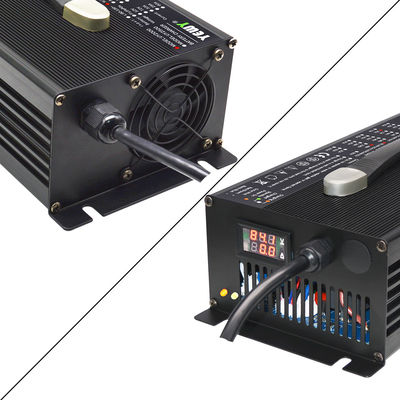

Stay connected with communication options including CAN, RS485, and Bluetooth interfaces, enabling advanced monitoring and control. LED indicators provide clear visual cues for the charging status.
Safety is a priority, with protection against overheating, overvoltage, overcurrent, short circuits, and reverse polarity.
Experience exceptional charging performance with the 72 Volt 88.2V 72V 20A Gel Lead Acid Battery Charger. Elevate your charging process and unlock the full potential of your batteries.
Type | Specification | DC Voltage | Charging Current | Light Turning(A) | |||
Li-ion | Lifepo4 | Lead-acid | Lithium | Lead-acid | |||
UY2000
|
12V90A | 12.6V/16.8V | 14.6V | 14.7V | 90A | 8% | 25% |
24V60A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 60A | 8% | 25% | |
36V40A | 42V/46.2V | 58.42V | 44.1V | 40A | 8% | 25% | |
48V30A | 50.4V/54.6V/58.8V | 73V | 58.8V | 30A | 8% | 25% | |
60V25A | 63V/67.2V/71.4V | 87.6V | 73.5V | 25A | 8% | 25% | |
72V20A | 79.8V/84V | 87.6V | 88.2V | 20A | 8% | 25% | |
84V18A | 88.2V/92.4V | 102.2V | 102.9V | 18A | 8% | 25% |
1.Power: 2000W
2.Economic design with an aluminum case for easy handling.
3.Circuit topology: CCM PFC + classic full-bridge configuration.
4.Optional functions available: MCU for enhanced protection, RS485, CAN, Bluetooth communication, etc.
5.CPU and intelligent PWM IC control for automatic transition between CC, CV, and Float/Cut-off modes, catering to different curve requirements.
6.Intelligent cooling function controlled by temperature and load current.
7.Protection features: Overcurrent, Overvoltage, Overtemperature, Short Circuit, Reverse Polarity, Shutdown or Trickle Charge, Anti-reverse charging.
