Product Details:
|
| Material & Color: | Aluminum Alloy & Sliver | Dimension: | 250*162*93 Mm |
|---|---|---|---|
| Weight: | 5 Kg | Input: | 100~240Vac |
| Frequency: | 47~63Hz | Charger Type: | Lead Acid/Lithium/Li-ion Battery |
| Fan: | Temperature + Load Current Double Control Fan Speed | Protection: | Over Current, Over Voltage, Over Temperature, Short Circuit, Reverse Polarity, Shut Off Or Trickle And Anti-reverse Charger. |
| Output Voltage: | 24 Volt | Output Current: | 40 Amp |
| DC/AC Connector: | Optional Connector | Efficiency: | >=90%(full Load) |
| Warranty: | 18 Months | Operating Temperature: | -20 To 40 ℃ |
| Storage Temperature: | -40 To 70 ℃ | ||
| High Light: | 24 Volt Lead Acid Battery Charger,35A Lead Acid Battery Charger,35A On Board Battery Charger |
||

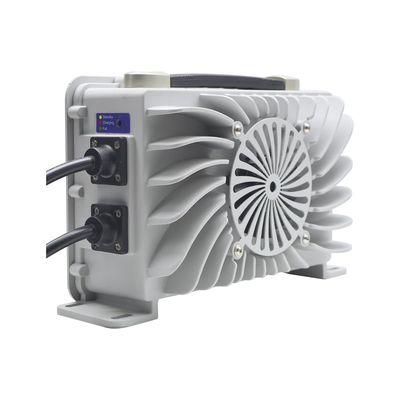

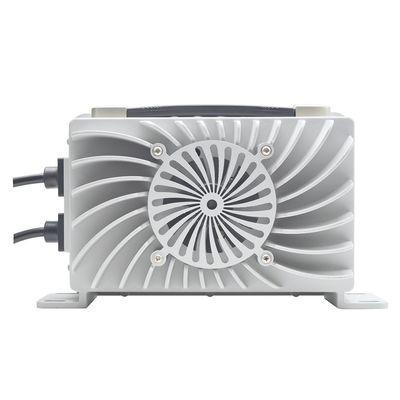

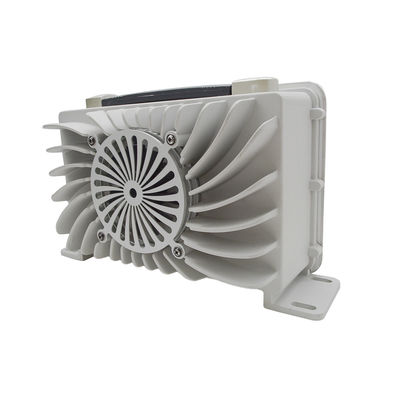

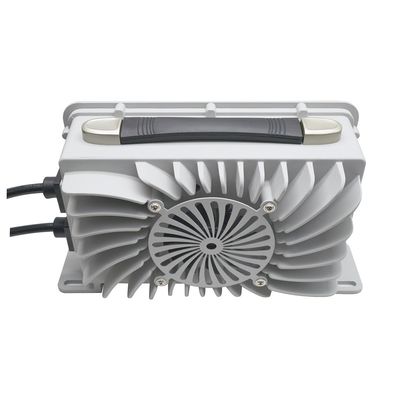

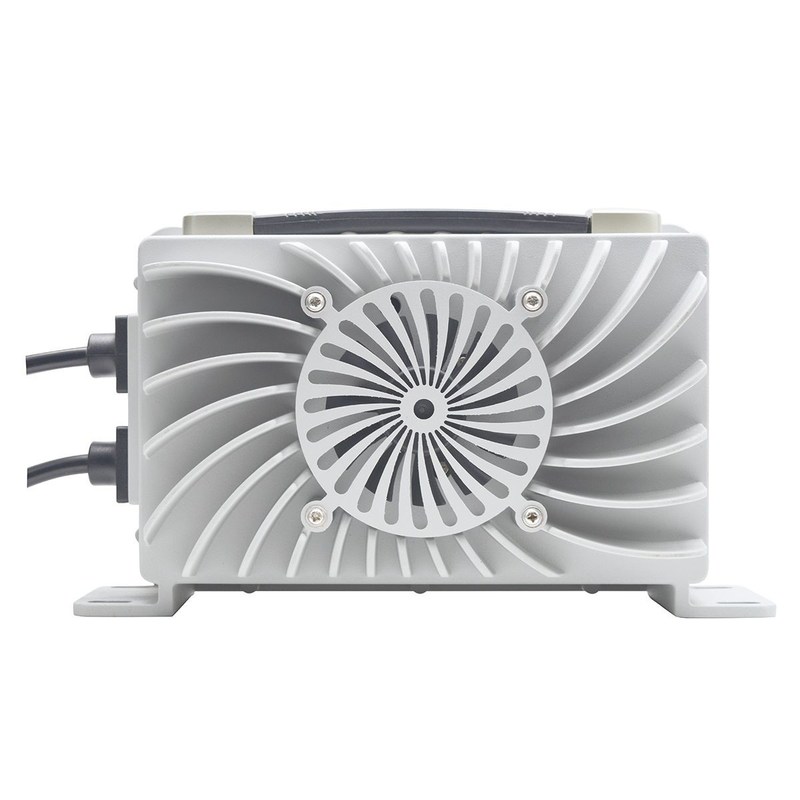

24V 35A Waterproof On Board Surfboard Charger 24V Lead Acid Battery Charger
Product Description:
Introducing the 24V 35A Waterproof On Board Surfboard Charger, designed specifically for charging 24V lead-acid batteries.
Experience the benefits of the automatic multi-stage charging curve, which maximizes battery life by delivering an optimized charging process. The charger intelligently adapts to the battery's needs, utilizing charging modes such as charging wait, pre-charge, constant current, constant voltage, float charge, top-up, and full charge. This smart charging approach ensures efficient and effective charging while extending battery lifespan.
Safety is a top priority, and this charger comes equipped with comprehensive charging protection features. It safeguards against over-temperature, over-voltage, over-current, short circuit, and reverse polarity, providing a safe charging experience for both the charger and the batteries.
The charger employs an advanced APFC+LLC resonant half-bridge topology, ensuring high efficiency, stability, and energy-saving performance. With MCU-controlled gradual rise in output current, it provides a gentle and impact-free charging experience, minimizing stress on the batteries and maximizing their performance and longevity.
Efficient cooling is achieved through temperature and load current-controlled dual cooling fans. This dual control mechanism ensures optimal heat dissipation and energy efficiency, allowing the charger to maintain stable performance even in demanding conditions. The aluminum alloy casing not only adds to the charger's aesthetic appeal but also enhances its durability and heat dissipation capabilities.
With an IP65 waterproof rating, this charger is specifically designed to withstand water exposure, making it ideal for on-board surfboard charging applications. Whether you're out on the waves or enjoying water sports, you can trust this charger to perform reliably and consistently.
For enhanced communication and customization options, the charger supports CAN and RS485 protocols, allowing you to connect and communicate with external devices. This enables you to control the charging voltage and current, giving you the flexibility to customize the charging process based on your specific requirements.
Experience the reliability, durability, and convenience of the 24V 35A Waterproof On Board Surfboard Charger. Whether you're charging lead-acid batteries for your surfboard or other applications, this charger delivers efficient and safe performance, ensuring your batteries are ready for action.
Product Features:
| Charger Model: | UY1200S | Power: | 1200W |
| Housing: | Aluminium Alloy | Size: | 250*162*93mm |
| Communication: | CAN, RS485 | Waterproof: | IP65 |
| Efficiency: | >=90% | Operating Temperature: | -20 to 40℃ |
| Storage Temperature: | -40 to +70℃ | Noise: | <=40dB |
| Cooling: | Temperature and load current-controlled fan | ||
| Protection: |
Over-temperature, over-voltage, over-current, short-circuit, and reverse connection protection. |
||
| Charger type: | Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging. | ||
| Features: |
1.Automatic multi-stage charging curve for long battery life 2.Intelligent fully automatic charging: obtains the battery status and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge) |
||
| ITEM | vb1250 | vb2440 | vb3625 | vb4820 | |
|
Output |
LFP charging voltage | 14.6V | 29.2V | 43.8V | 54.75V |
| NCM charging voltage | 16.8V | 29.4V | 42.0V | 54.6V | |
| L-A charging voltage | 14.7V | 29.4V | 44.1V | 58.8V | |
| Float voltage | 13.8V(only Lead) | 27.6V(only Lead) | 41.4V(only Lead) | 55.2V(only Lead) | |
| Constant charge current | 50A | 40A | 25A | 20A | |
|
Rotating lamp current |
Lead 12.5A/ Lithium 4A | Lead 10A/ Lithium 3.2A | Lead 6.25A/ Lithium 2A | Lead 5A/ Lithium 1.6A | |
| Ripple voltage | ≤2%VOUTMAX | ||||
|
Input |
Voltage range | 90V~260VAC | |||
| Frequency range | 47~63Hz | ||||
| Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | ||||
| Input current(type) |
v=W,20A/115VAC,10A/230VAC；v=H,10A/230VAC； v=L,20A/115VAC |
||||
| Vomit (type) | COLD START 50A at 230VAC | ||||
| Leakage Current | ＜0.75m A | ||||
1. Compatible with AGM, gel, lead-acid, NCM, LFP, lithium-ion batteries.
2. Intelligent fully automatic charging: switch charging modes based on the battery's status.
3. Automatic multi-stage charging curve for longer battery life.
4. Supports multiple output plugs
5. Customizable charging profiles or charging modes.
6. With MCU-automated adjustable charging curve, enhanced protection features, and the ability to customize the charging curve.
7. Communication options: RS485, CAN.
Charging Curve:
