Product Details:
|
| Material & Color: | Aluminum Alloy & Black/Sliver | Dimension: | 262*136*89 Mm（10.31*5.35*3.5”） |
|---|---|---|---|
| Weight: | 3 Kg(6.61lbs) | Input: | 100~240Vac |
| Frequen: | 47~63Hz | Charger Type: | Lead Acid/Lithium/Li-ion Battery |
| Fan: | Temperature + Load Current Double Control Fan Speed | Protection: | Over Current, Over Voltage, Over Temperature, Short Circuit, Reverse Polarity, Shut Off Or Trickle And Anti-reverse Charger. |
| Output Voltage: | 24V/36V/48V/60V/72V | Output Current: | 30A/20A/15A/12A/10A |

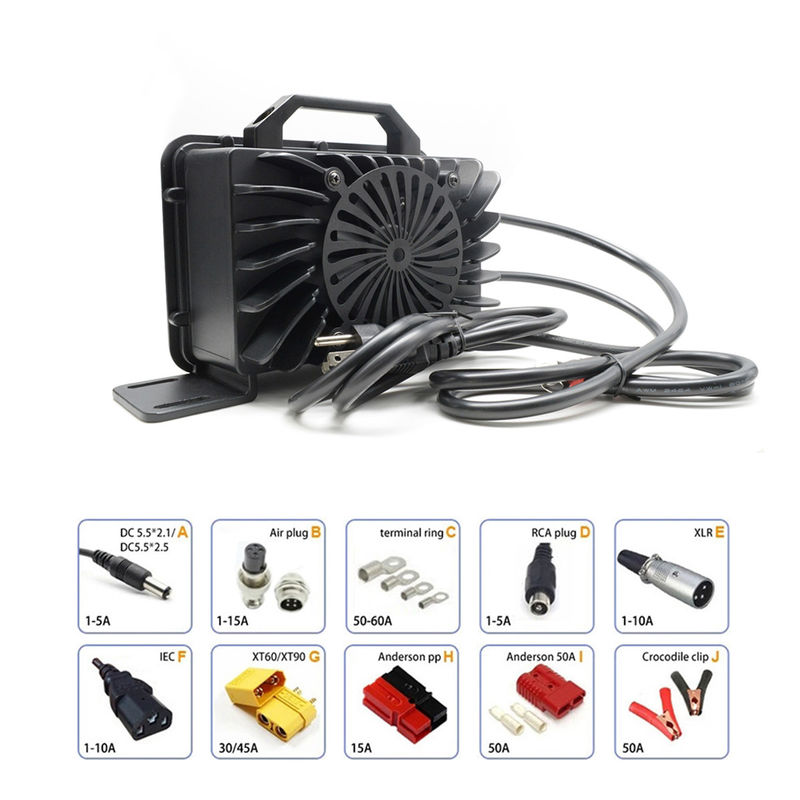

| DC/AC Connector: | Optional Connector | Efficiency: | >=92%(full Load) |
| Warranty: | 18 Months | Operating Temperature: | -4 To 104℉（-20 To 40 ℃） |
| Storage Temperature: | -40 To 104℉（-40 To 70 ℃） | ||
| High Light: | 29.2V Battery Charger Waterproof,29.2V Battery Charger,30A Battery Charger Lifepo4 |
||

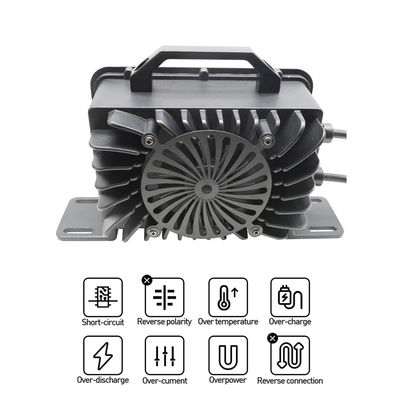

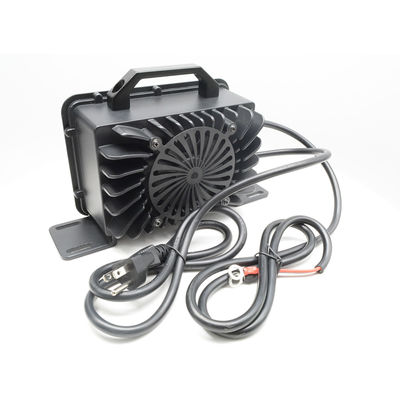

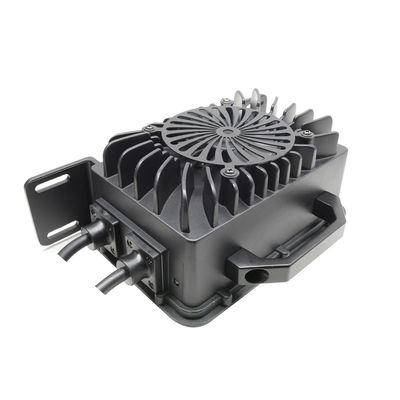

24V 30A 29.2V 29.4V Lifepo4 Lead acid Waterproof Battery Charger
Product Description:
Ignite Your Outdoor Excursions with Our Waterproof Charger
Embark on extraordinary outdoor adventures with our cutting-edge waterproof charger. Engineered specifically for outdoor enthusiasts, our charger ensures uninterrupted power supply and unwavering performance during your thrilling escapades.
Versatile Compatibility: Our charger caters to a wide range of batteries, including lead-acid (flooded, gel, AGM) and various lithium chemistries (LiFePO4, LiMn, Li-ion). It seamlessly adapts to diverse battery types, empowering you with the freedom to explore.
Multi-Stage Charging: Experience optimized battery longevity through our automatic multi-stage charging system. This intelligent feature adjusts charging parameters at different stages, guaranteeing efficient and safe charging, thereby extending the lifespan of your batteries.
Customizable Charging Curves: Tailor the charging process to suit your specific battery chemistry. Choose from three pre-set charging curves (LFP/NCM/L-A) to ensure precise charging parameters, resulting in peak performance for your battery type.
Advanced Protection Mechanisms: Your safety is our utmost priority. Our charger is equipped with comprehensive protection against over-temperature, over-voltage, over-current, short circuit, and reverse polarity. Rest assured that your batteries and equipment are safeguarded throughout the charging process.
Intelligent Charging Automation: Enjoy a hassle-free charging experience with our intelligent automation system. The charger intelligently detects battery status and automatically adjusts charging modes, including charging wait, pre-charge, constant current, constant voltage, float charge, equalization charge, and full charge.
Real-Time LED Indicators: Stay informed about the charging progress with our intuitive LED indicators. These lights provide real-time updates on the current charging status, enabling you to plan your next adventure confidently.
Advanced Circuit Design: Our charger incorporates state-of-the-art CCM PFC+LLC half-bridge topology, ensuring exceptional efficiency and self-balancing regulation. Experience optimal charging performance while minimizing energy consumption.
Optional Communication Capabilities: Take control of your charging system with the optional RS485 and CAN communication features. Seamlessly integrate and manage your charging process remotely, providing added convenience and flexibility.
With our reliable waterproof charger, your outdoor excursions will reach new heights of exhilaration. Explore the world with unwavering confidence, knowing that our charger will keep your batteries powered for limitless possibilities. Embrace the thrill of the outdoors and create unforgettable memories with our innovative charger as your trusted companion.
| ITEM | vb2420 | vb3613 | vb4810 | vb6008 | vb7206 | ||
| Output | Output voltage (V) | LFP | 29.2 | 43.8 | 58.4 | 73.0 | 87.6 |
| NCM | 29.4 | 42.0 | 54.6 | 67.2 | 84.0 | ||
| L-A | 29.4 | 44.1 | 58.8 | 73.5 | 88.2 | ||
| Float voltage(V) (only L-A) | 27.6 | 41.4 | 55.2 | 69 | 82.8 | ||
| Max charging current (A) | 30 | 20 | 15 | 12 | 10 | ||
| Customizable current (A) | ≤30 | ≤20 | ≤15 | ≤12 | ≤10 | ||
| Max power (W) | 882 | 882 | 882 | 882 | 882 | ||
| Rotating lamp current(A) | LFP | 2.4 | 1.6 | 1.2 | 0.96 | 0.8 | |
| NCM | 2.4 | 1.6 | 1.2 | 0.96 | 0.8 | ||
| L-A | 7.5 | 5.0 | 3.75 | 3.0 | 2.5 | ||
| Ripple voltage | ≤2%VOUTMAX | ||||||
| Input | Voltage range | v=W,100V~240VAC；v=H,200~240Vac；v=L,100~120Vac | |||||
| Frequency range | 47~63Hz | ||||||
| Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | ||||||
| efficiency | ≥92% | ||||||
| Input current(type) |
v=W,12A/115VAC,5A/230VAC；v=H,5A/230VAC； v=L,12A/115VAC |
||||||
| Vomit (type) | COLD START≤50A at 230VAC | ||||||
| Leakage current | ＜0.75m A | ||||||
Product Features:
|
Charger Model:
|
UY900S
|
Power:
|
900W
|
|
Housing:
|
Aluminium Alloy
|
Size:
|
262*88.5*161.8mm
|
|
Communication:
|
CAN, RS485
|
Waterproof:
|
IP65
|
|
Efficiency:
|
>=92%
|
Operating Temperature:
|
-20 to 40℃
|
|
Storage Temperature:
|
-40 to +70℃
|
Noise:
|
<=40dB
|
|
Cooling:
|
Temperature and load current-controlled fan
|
||
|
Protection:
|
Over-temperature, over-voltage, over-current, short-circuit,and reverse connection protection. | ||
|
Charger type: |
Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging.
|
||
|
Features:
|
1.Automatic multi-stage charging curve for long battery life
2.Intelligent fully automatic charging: obtains the battery status
and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge) |
||
Charging Curve:
