73.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger

Certification
China Guangzhou Yunyang Electronic Technology Co., Ltd. certification
China Guangzhou Yunyang Electronic Technology Co., Ltd. certification
Customer Reviews
The experience with YEWY's customer support has been excellent. They promptly answered my pre-purchase inquiries and provided detailed information. Their dedication to ensuring customer satisfaction is commendable.

—— John Oliver

I'm Online Chat Now

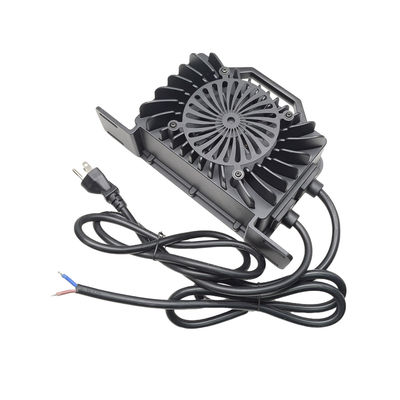

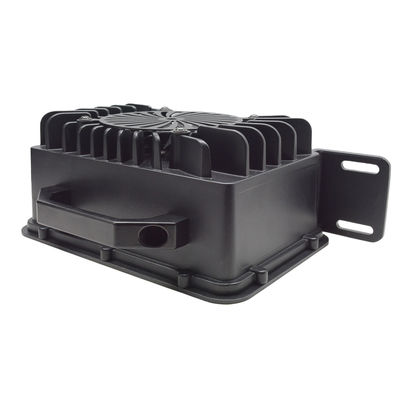

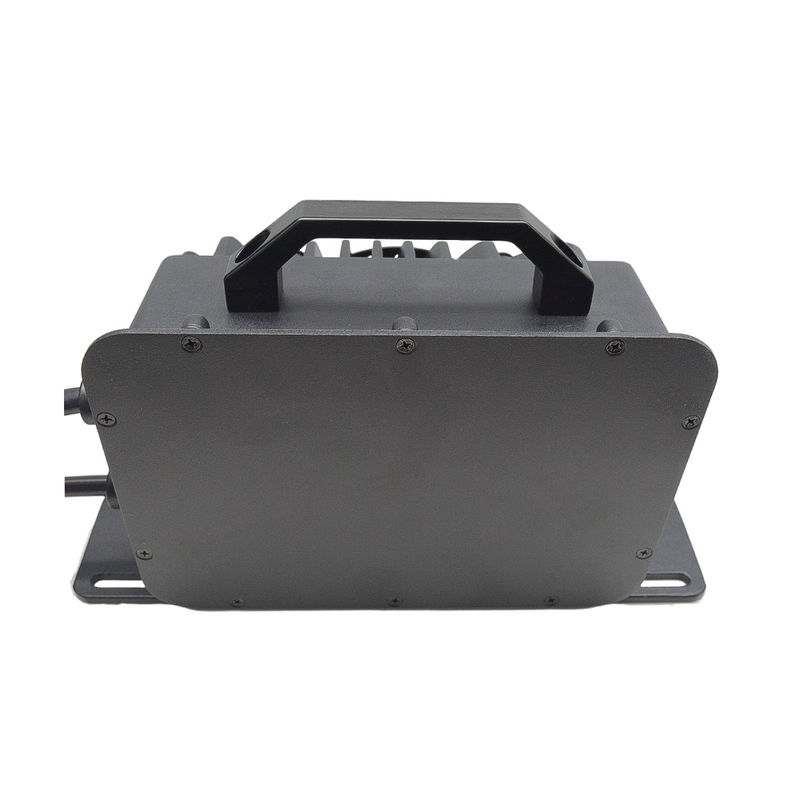

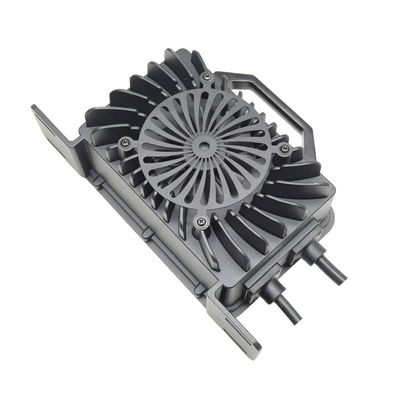

73.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger

73.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger
73.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger 73.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger 73.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger 73.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger

Large Image :  73.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger

Product Details:
Place of Origin: GUD, China
Brand Name: YEWY
Certification: CE/ROHS/LVD
Model Number: UY600S
Payment & Shipping Terms:
Minimum Order Quantity: Contact me
Price: Contact me
Delivery Time: Contact me
Payment Terms: Contact me

73.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger

Description
Material: Aluminum Alloy & Black/Sliver Dimension: 262*136*89 Mm (10.31*5.35*3.5”)
Weight: 3 Kg (6.61lbs) Input: 100~240Vac
Frequen: 47~63Hz Charger Type: Lead Acid/Lithium/Li-ion Battery
Fan: Temperature + Load Current Double Control Fan Speed Protection: Over Current, Over Voltage, Over Temperature, Short Circuit, Reverse Polarity, Shut Off Or Trickle And Anti-reverse Charger.
Output Voltage: 60V Output Current: 8A
DC/AC Connector: Optional Connector Efficiency: >92%
Warranty: 18 Months Operating Temperature: -20 ~ 40 ℃
Storage Temperature: -40 ~ 70 ℃
High Light:

73v Lead Acid Lithium Charger

,

67.2v Lead Acid Lithium Charger

,

60V Battery Charger

60V 8A 73v 67.2v 73.5v Automatic Lead-Acid Lithium Charger

Product Description:



When it comes to outdoor boating adventures, reliable power is a must. Introducing our state-of-the-art waterproof charger, specifically designed to cater to the unique charging needs of outdoor boating and marine applications.

Universal Battery Compatibility: Our charger is compatible with a wide range of batteries, including lead-acid batteries (flooded, gel, and AGM) as well as lithium batteries (LiFePO4, LiMn, and Li-ion). Whether you have a traditional lead-acid battery or a high-performance lithium battery, our charger is up to the task.

Automatic Multi-Stage Charging Curve: We understand the importance of maximizing battery life. That's why our charger utilizes an automatic multi-stage charging curve, carefully designed to optimize each charging stage and prolong the overall battery lifespan. Say goodbye to premature battery degradation and enjoy extended battery performance.

Three Pre-Set Charging Curves: Every battery chemistry has unique charging requirements. With our charger, you have the flexibility to choose from three pre-set charging curves (LFP/NCM/L-A), allowing you to customize the charging process according to your specific battery chemistry.

Comprehensive Charging Protection: Safety is our top priority. Our charger comes equipped with multiple protective features, including temperature, voltage, current, short circuit, and reverse polarity protection. You can confidently charge your batteries, knowing that they are safeguarded against any potential risks.

Intelligent Fully Automatic Charging: Experience the convenience of intelligent fully automatic charging. Our charger intelligently detects the battery's current state and adjusts the charging mode accordingly. It seamlessly transitions between charging modes such as charging wait, pre-charge, constant current, constant voltage, float charge, equalization charge, and full charge, ensuring optimal charging performance at all times.

LED Indicators for Real-Time Monitoring: Stay informed about the charging process with the LED indicators that clearly display the current working status of the charger. You can easily monitor the progress and know when your batteries are fully charged and ready for action.

Advanced Circuit Design: Our charger utilizes the CCM PFC+LLC half-bridge topology, renowned for its self-balancing regulation capabilities. With high power factor and exceptional efficiency, it minimizes energy waste while maximizing charging efficiency. The integration of a microcontroller enhances protection and allows for customizable charging curves to meet your specific needs.

Optional RS485 and CAN Communication: For enhanced functionality and seamless integration, our charger offers optional RS485 and CAN communication capabilities. You can connect and communicate with other devices and systems, enabling comprehensive control and monitoring of your charging process.




ITEM vb1230 vb2420 vb3613 vb4810 vb6008 vb7206
Output Output voltage (V) LFP 14.6 29.2 43.8 58.4 73.0 87.6
NCM 16.8 29.4 42.0 54.6 67.2 84.0
L-A 14.7 29.4 44.1 58.8 73.5 88.2

Float voltage(V) (only L-A)

13.8 27.6 41.4 55.2 69 82.8
Max charging current (A) 30 20 13 10 8 6
Customizable current (A) ≤30 ≤20 ≤13 ≤10 ≤8 ≤6
Max power (W) 504 588 573.3 588 588 529.2
Rotating lamp current(A) LFP 2.4 1.6 1.04 0.8 0.64 0.48
NCM 2.4 1.6 1.04 0.8 0.64 0.48
L-A 7.5 5.0 3.25 2.5 2.0 1.5
Ripple voltage ≤2%VOUTMAX
Input Voltage range v=W,100V~240VAC;v=H,200~240Vac;v=L,100~120Vac
Frequency range 47~63Hz
Power factor PF>0.98/115VAC, PF>0.95/230VAC at full load
efficiency ≥92%
Input current(type) v=W,20A/115VAC,10A/230VAC;v=H,10A/230VAC;v=L,20A/115VAC
Vomit (type) COLD START≤50A at 230VAC
Leakage current <0.75m A




Product Features:


Charger Model:
UY600S
Power:
600W
Housing:
Aluminium Alloy
Size:
262*88.5*161.8mm
Communication:
CAN, RS485
Waterproof:
IP65
Efficiency:
>=92%
Operating Temperature:
-20 to 40℃
Storage Temperature:
-40 to +70℃
Noise:
<=40dB
Cooling:
Temperature and load current-controlled fan
Protection:
Over-temperature, over-voltage, over-current, short-circuit,and reverse connection protection.

Charger type:

Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging.
Features:
1.Automatic multi-stage charging curve for long battery life
2.Intelligent fully automatic charging: obtains the battery status
and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge)




Charging Curve:
73.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger 073.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger 173.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger 273.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger 373.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger 4
73.5v 73v 67.2v Lead Acid Lithium Charger 8A 60V Battery Charger 5
